Geo
>>
1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Power Door Lock Control Module
Power Door Lock Control Module

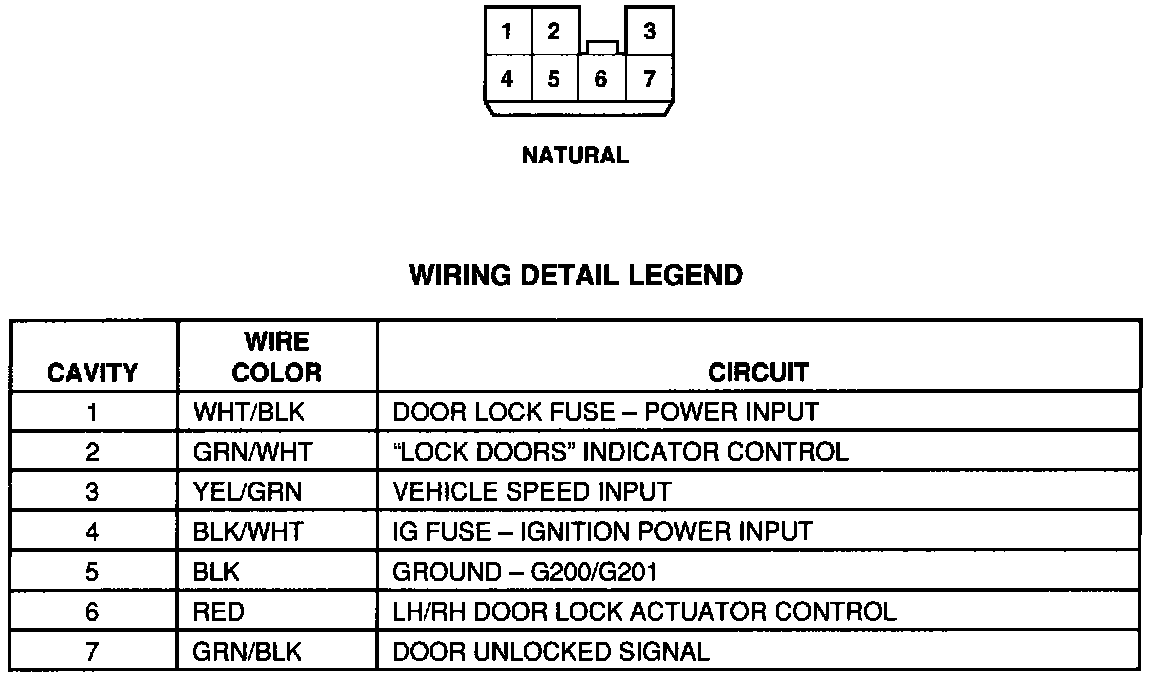

Automatic Door Locks: Hardtop Cont., Control Module Connector:
