Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

Automatic Transaxle Control Module:

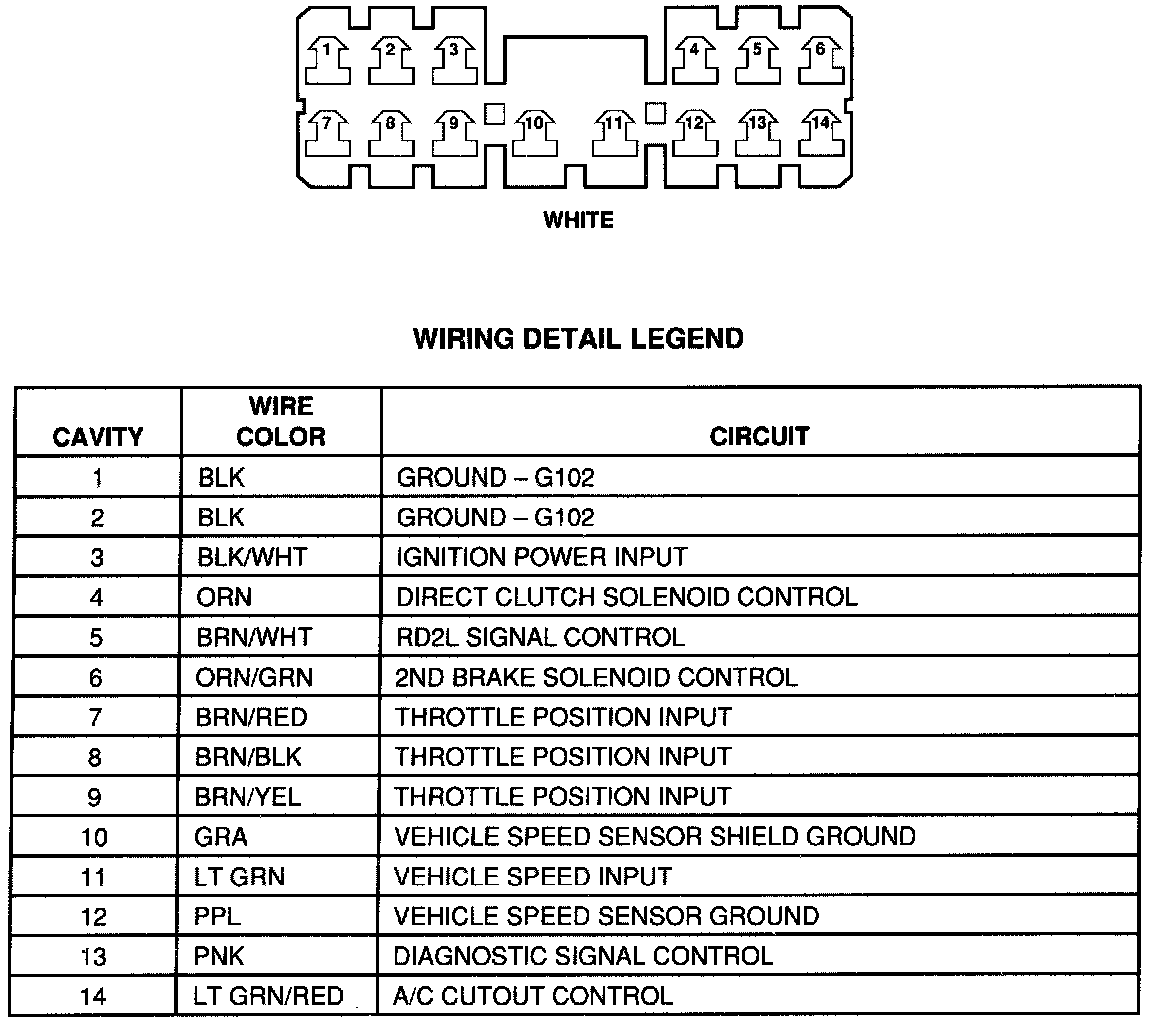

Transaxle Control Module (TCM) Connector 2:
