Home >> Geo >> 1992 >> Tracker 4x2 L4-1590cc 1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM)

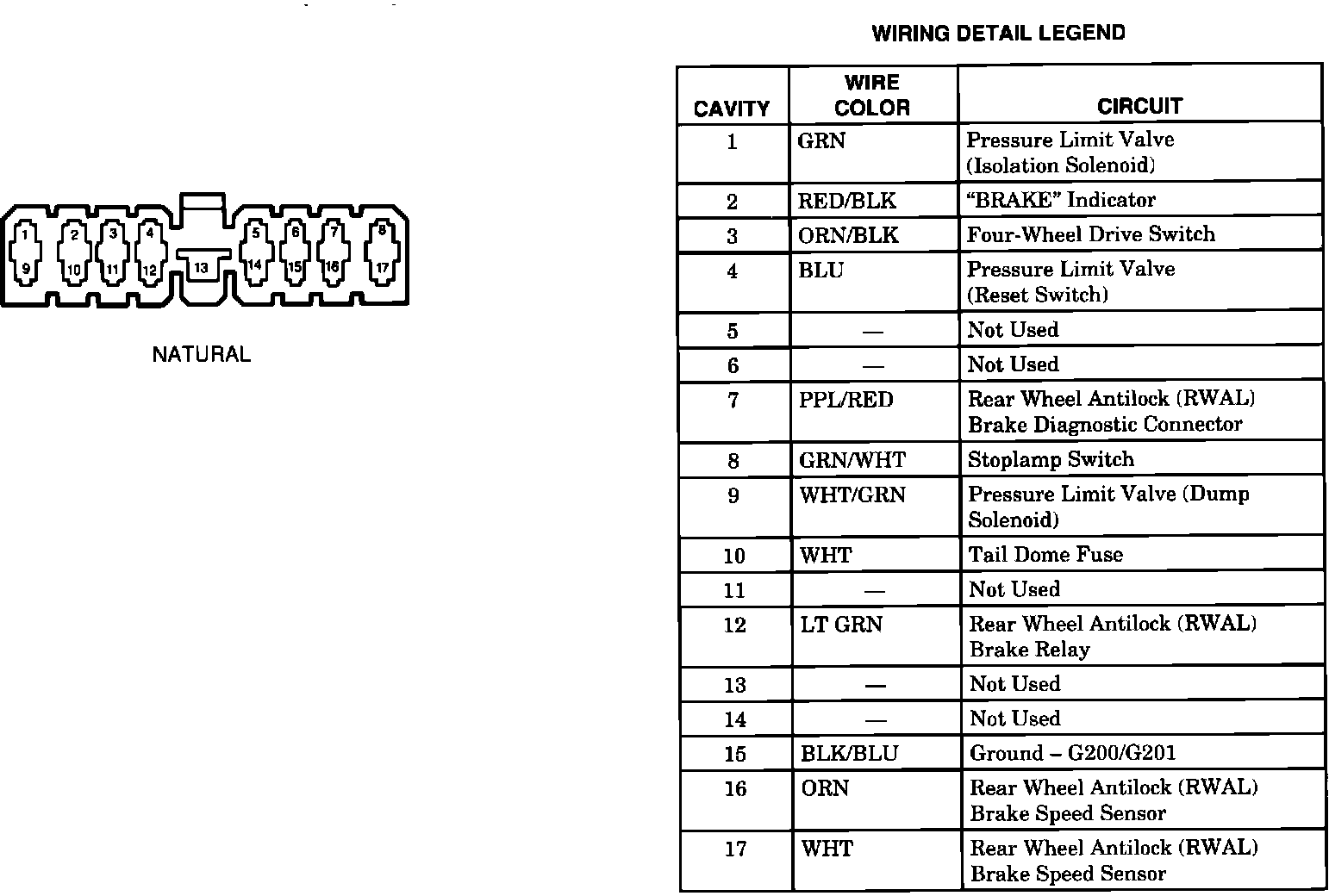

Antilock Brake Control Module (EBCM) Connector:
