Home >> Geo >> 1992 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Locations

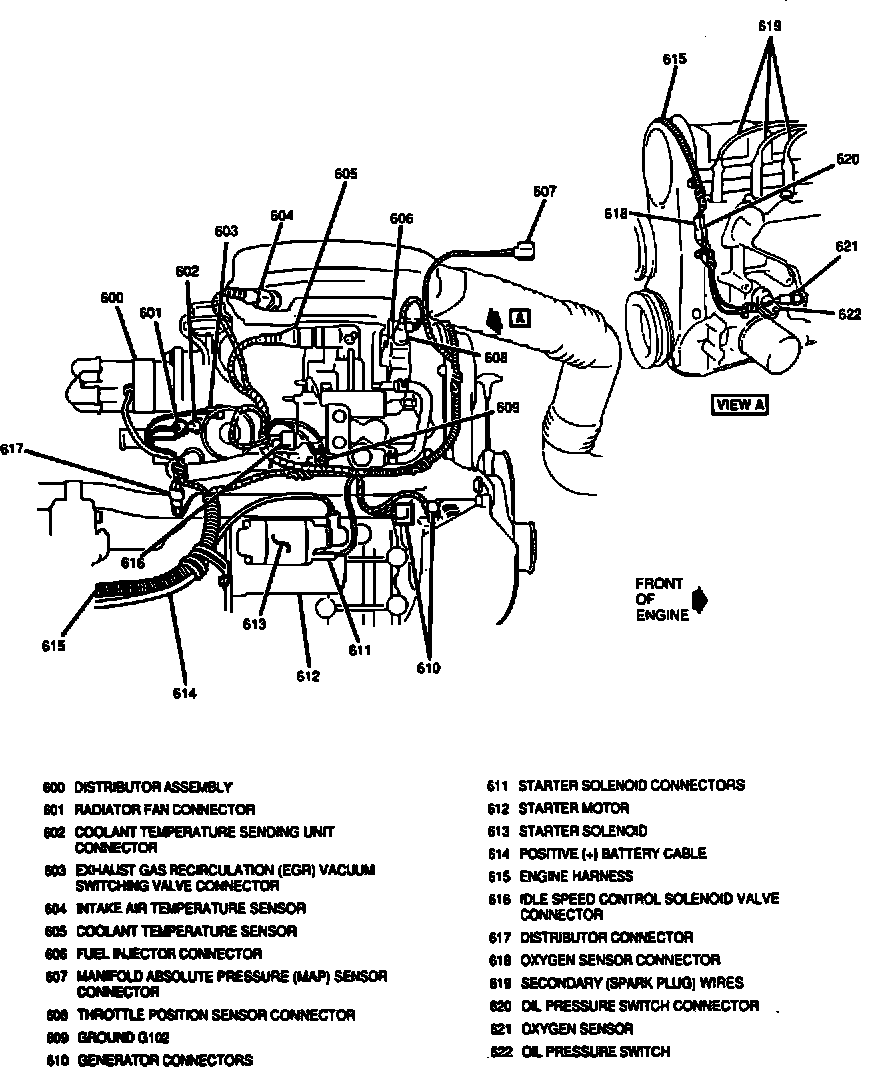

Oil Pressure Sensor: Locations

Engine Compartment Electrical Components:




Lower LH Side Of Engine
