ECM Circuit Resistance Check

ECM Circuit Resistance Check

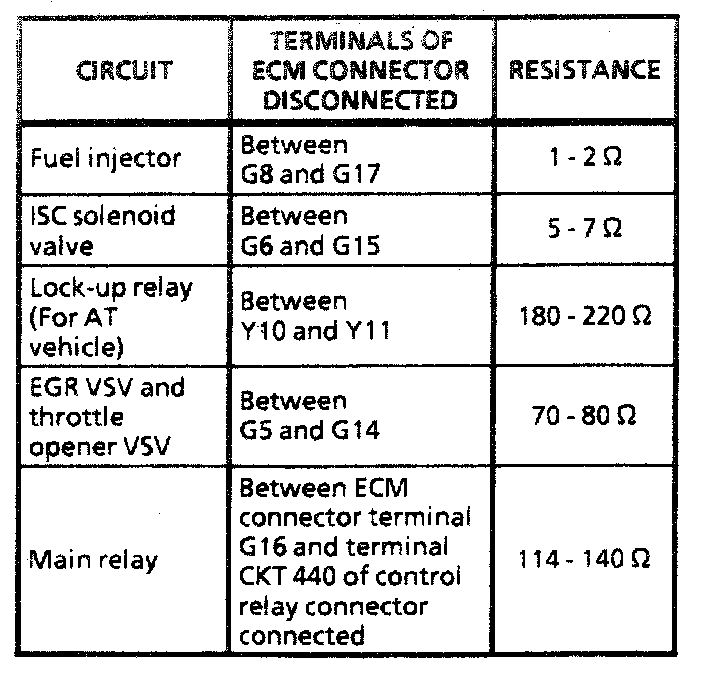

When replacing an ECM be sure to check the resistance between the terminals of the disconnected ECM connectors listed below with the ignition switch "OFF." Resistance of the following circuits should match the values shown below. If any of the following circuits are shorted a new replacement ECM could become damaged.
