Spectrum L4-91.5 1.5L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Lamp Driver Module Connector
Lamp Driver Module Connector

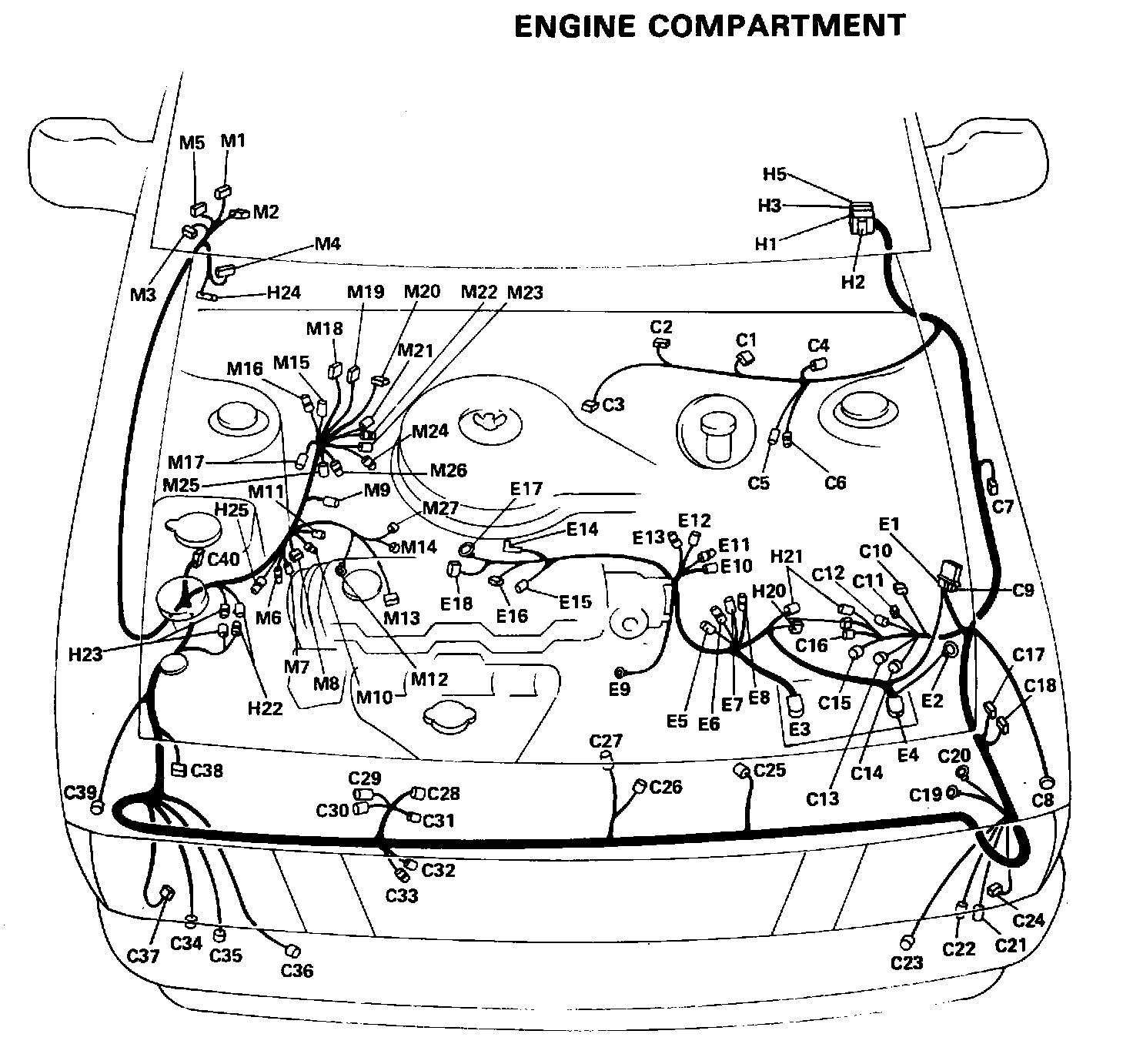

Engine Compartment Wiring:

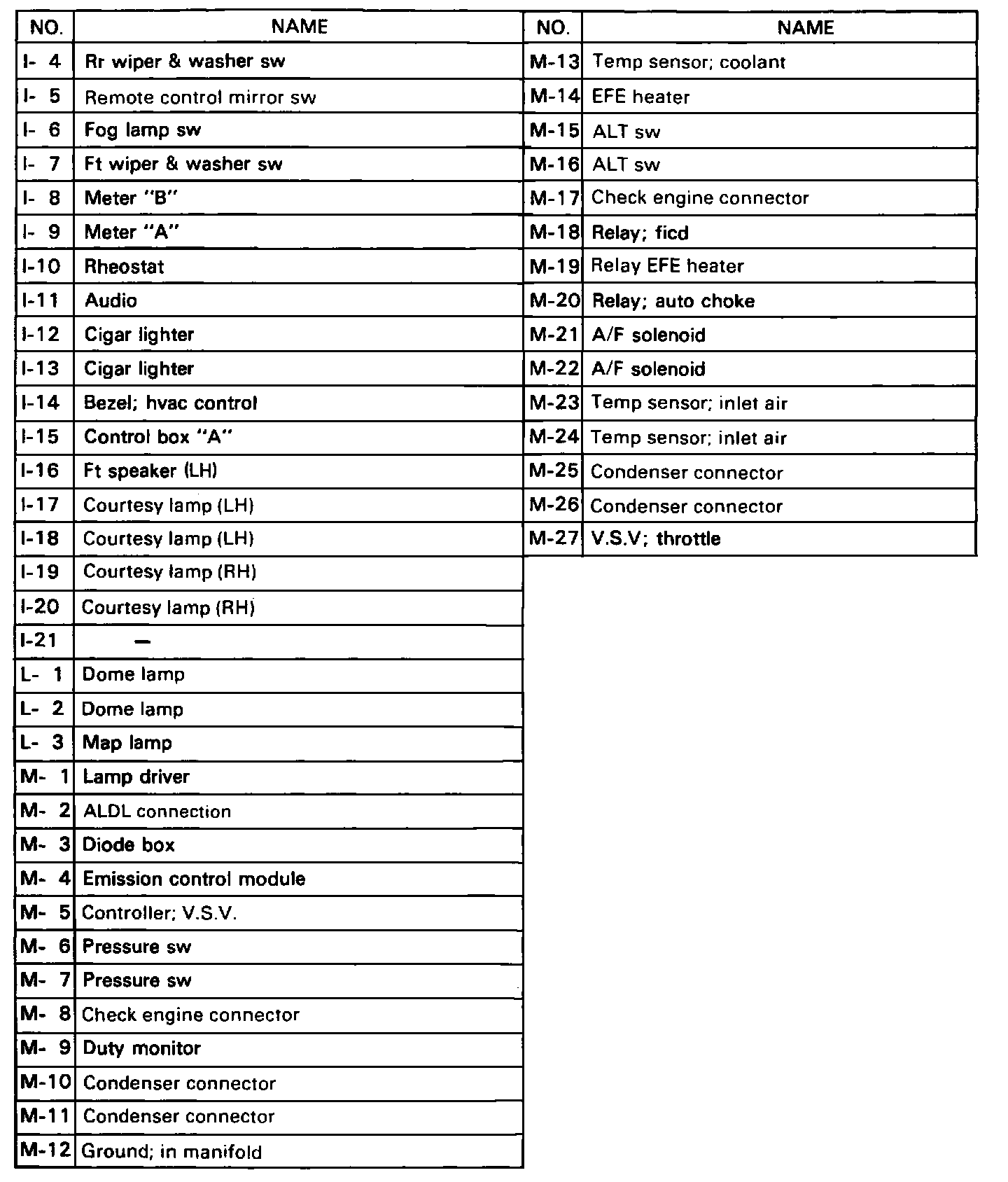

Lamp Driver Connector number: M1
