1989
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Manual Transmission
With Manual Transmission

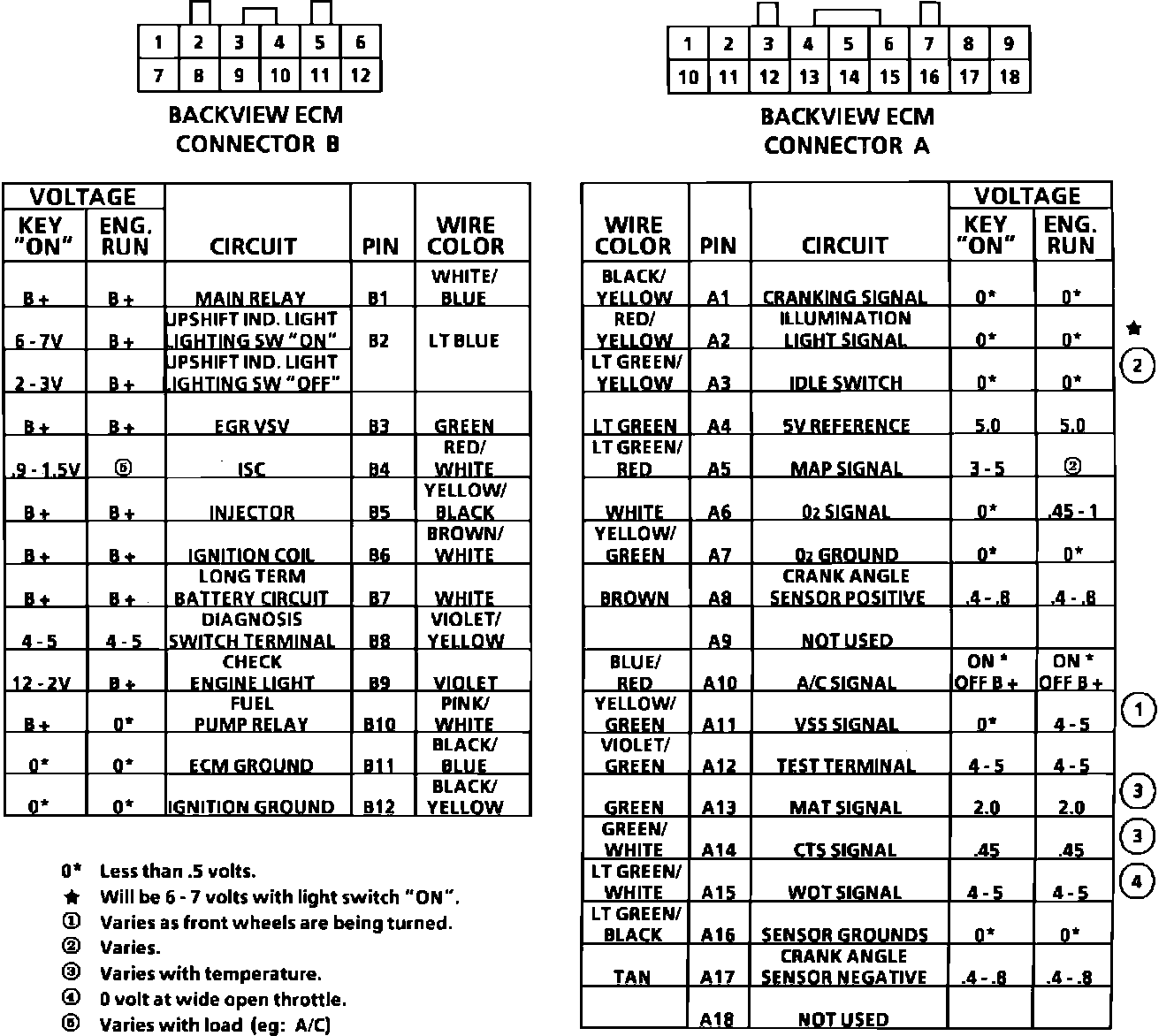

ECM Terminal End View ESA Ignition System:
