Absolute Pressure Sensor: Diagrams

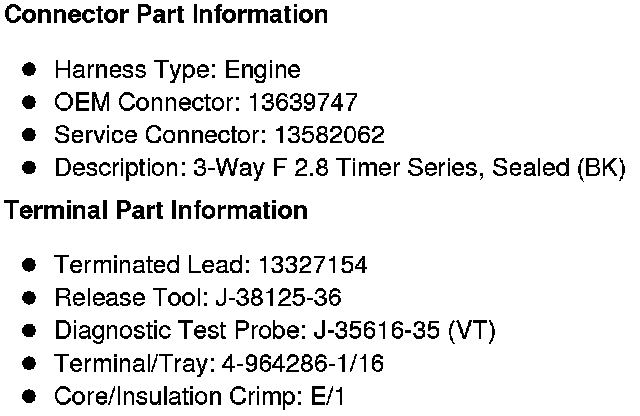

Component Connector End Views

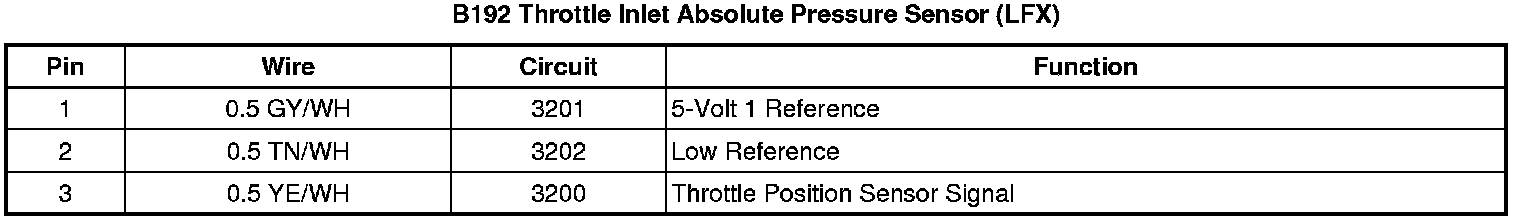

B192 Throttle Inlet Absolute Pressure Sensor (LFX)
