Specifications
>>
Mechanical Specifications
>>
Engine
>>
Intake Manifold
Intake Manifold
Intake Manifold
First pass
23 Nm (17 lb ft)
Second pass
23 Nm (17 lb ft)

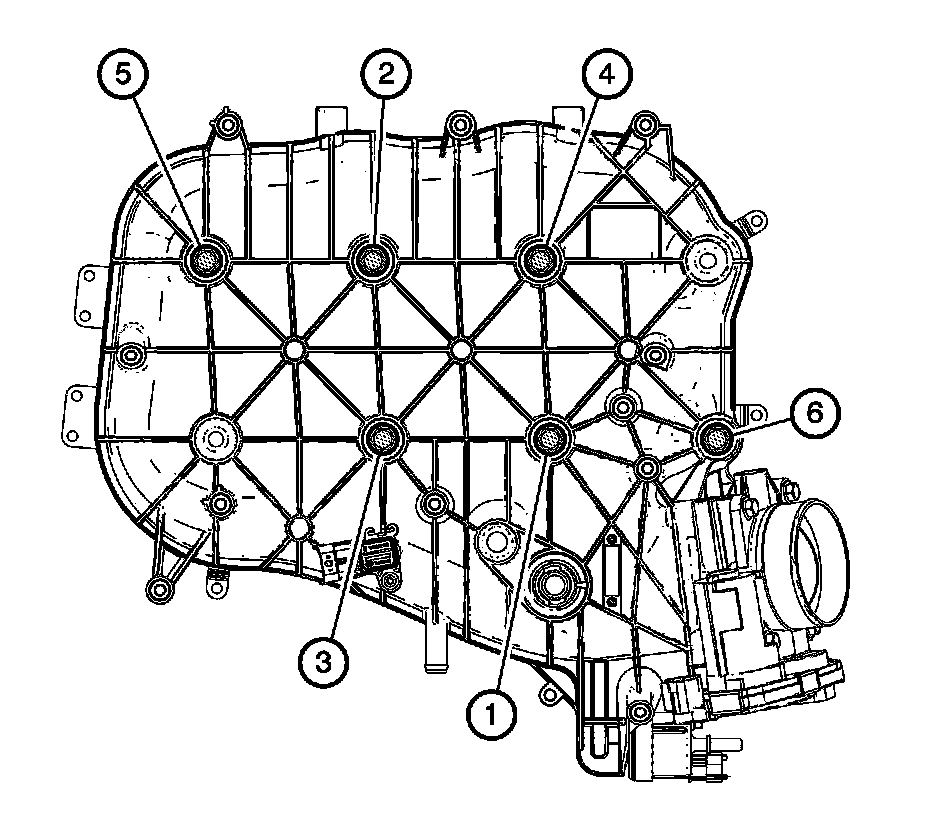

Intake Tightening Sequence (LF1 or LFW):
