Absolute Pressure Sensor: Diagrams

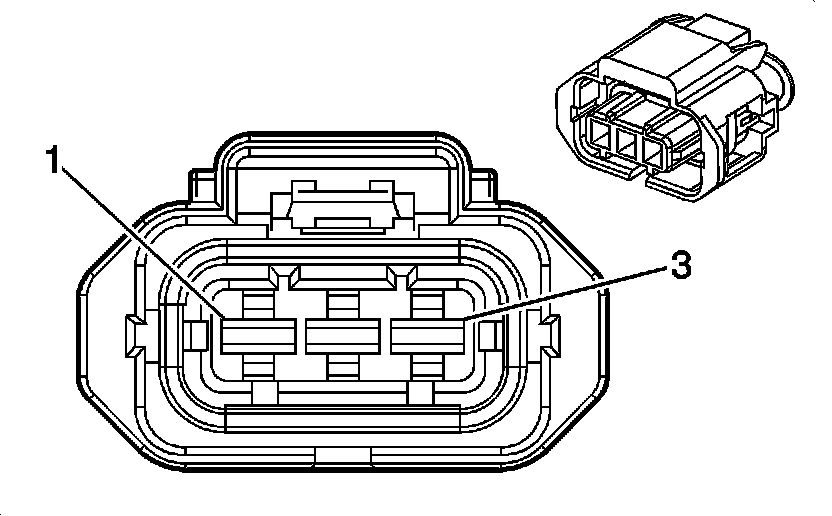

Component Connector End Views

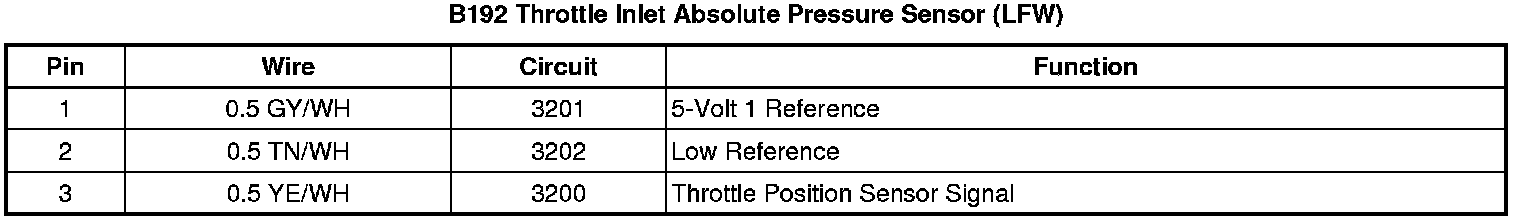

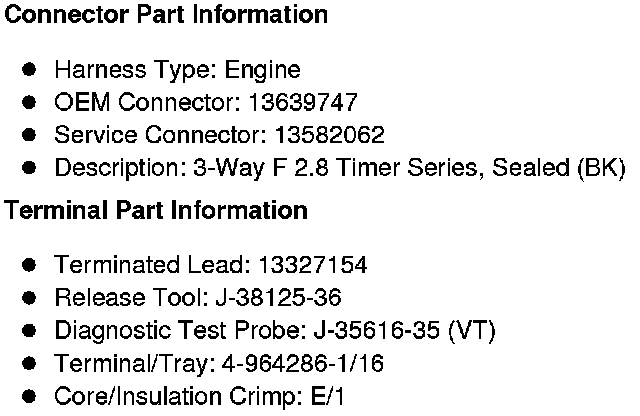

B192 Throttle Inlet Absolute Pressure Sensor (LFW)
