Top Engine Components

Powertrain Component Views

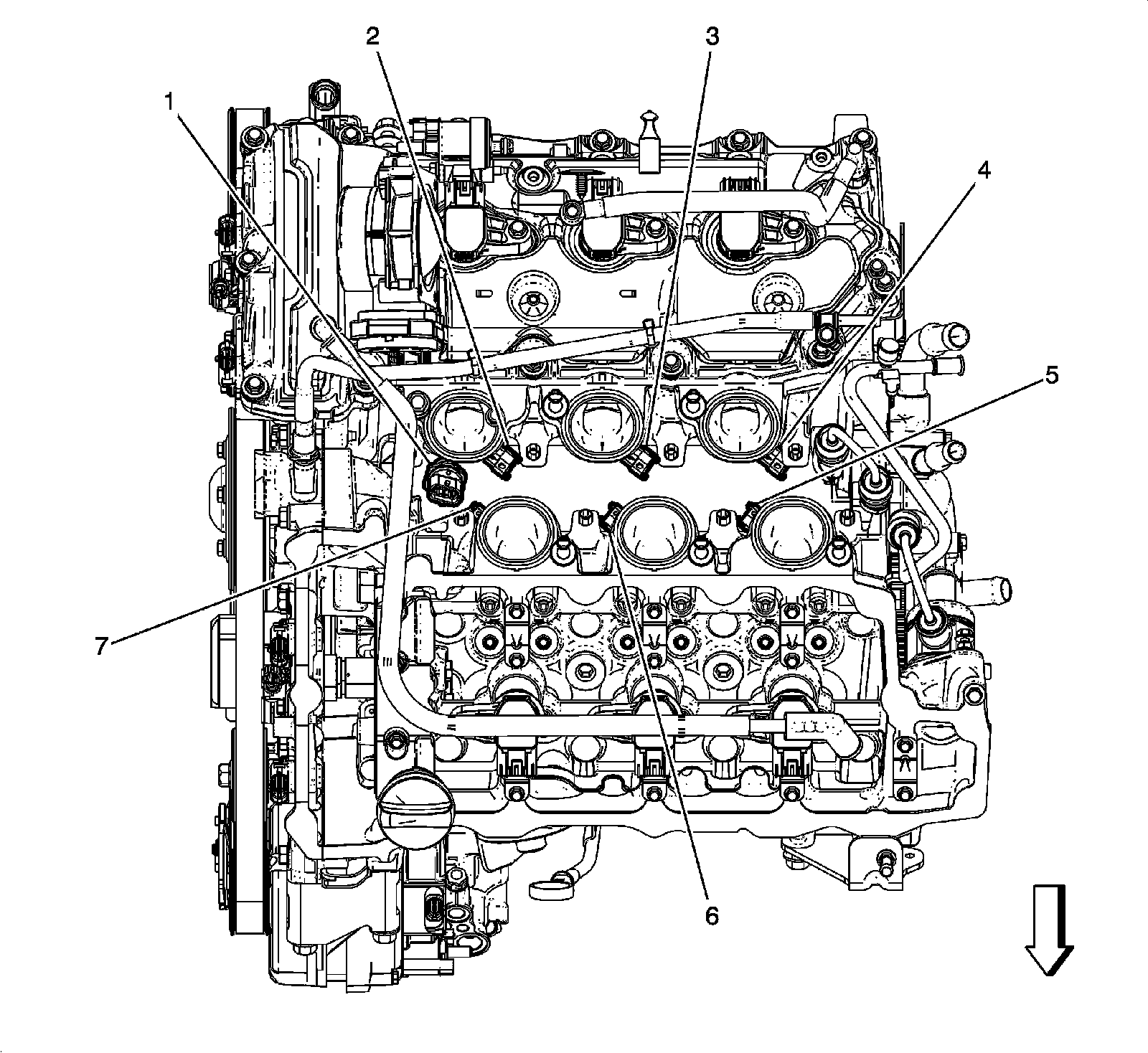

Top Engine Components (LFW)





1 - B47B Fuel Rail Pressure Sensor

2 - Q17A Fuel Injector 1

3 - Q17C Fuel Injector 3

4 - Q17E Fuel Injector 5

5 - Q17F Fuel Injector 6

6 - Q17D Fuel Injector 4

7 - Q17B Fuel Injector 2
