Throttle Position Sensor: Diagrams

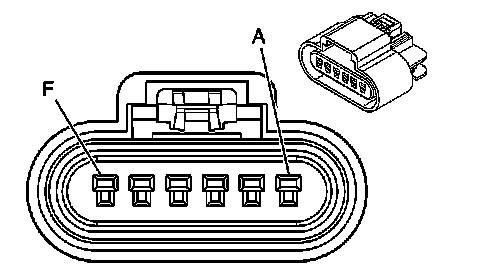

Component Connector End Views

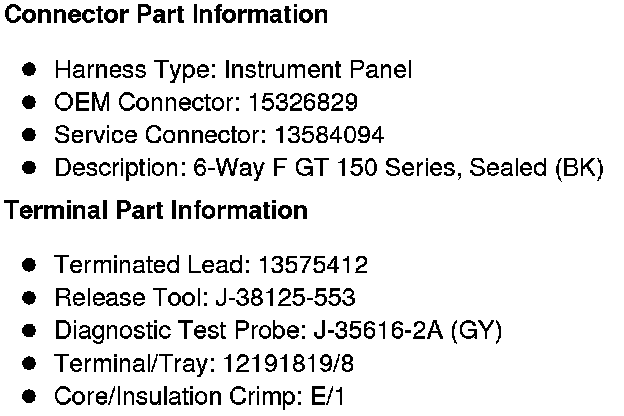

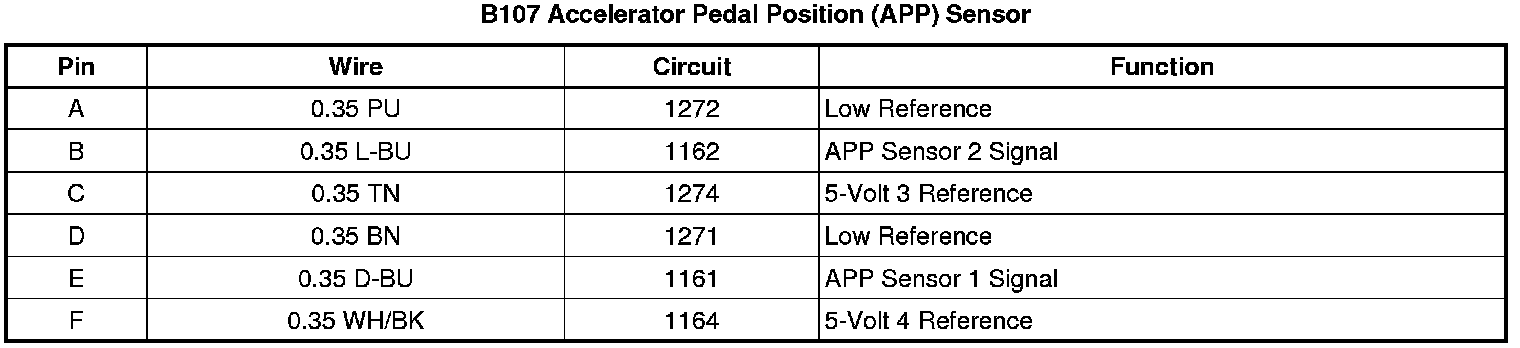

B107 Accelerator Pedal Position (APP) Sensor
