Engine Control Module: Locations

Front of Vehicle/Engine Compartment Component Views

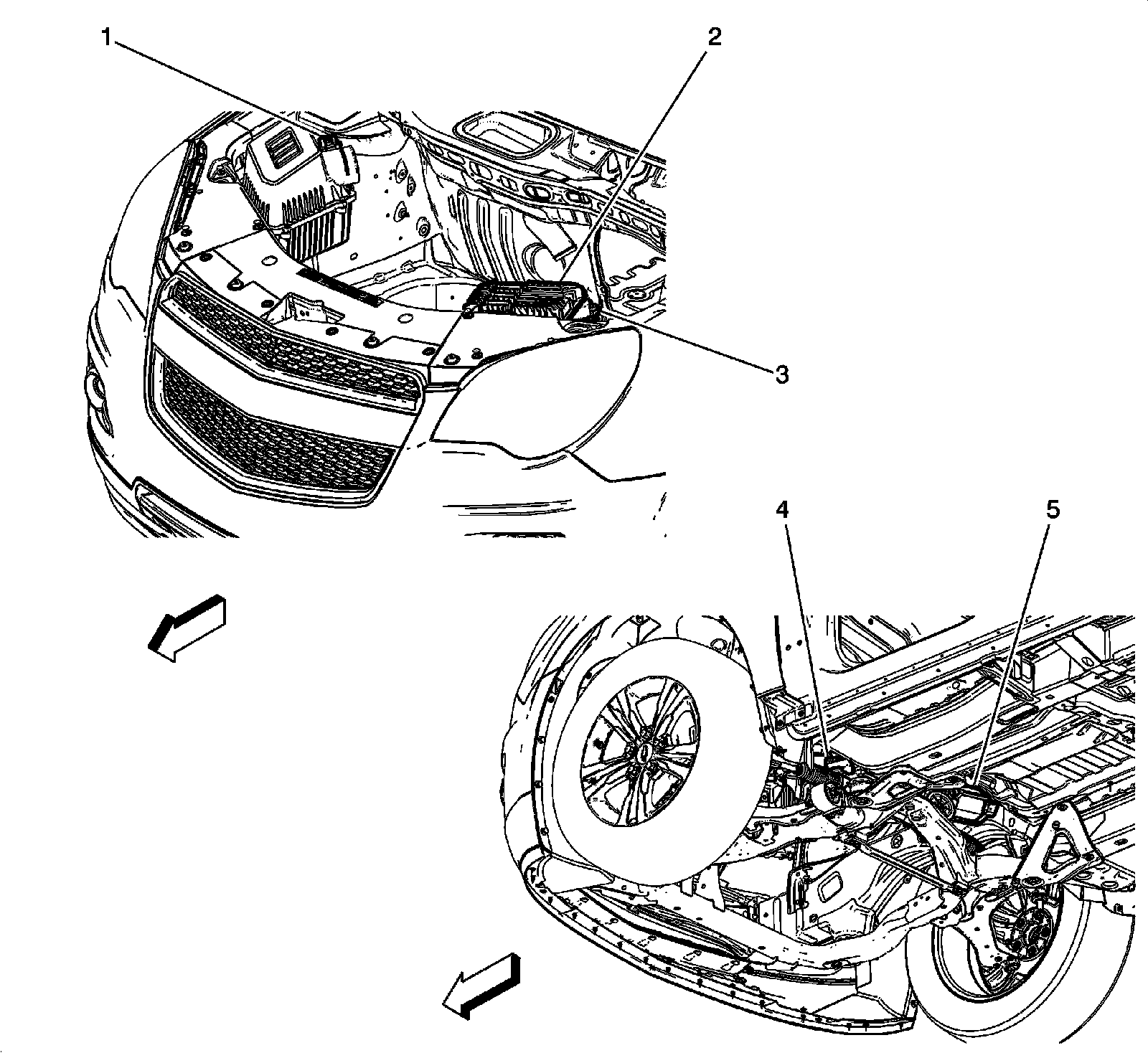

Engine Compartment Components (1 of 3)





1 - B75B Mass Air Flow/Intake Air Temperature Sensor

2 - K20 Engine Control Module

3 - G6 Brake Booster Pump - Auxiliary

4 - B137 Power Steering Shaft Torque Sensor (LEA)

5 - K43 Power Steering Control Module (LEA)
