Home >> GMC >> 2012 >> Terrain FWD L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Main Relay (Computer/Fuel System) >> Locations

Main Relay (Computer/Fuel System): Locations




Electrical Center Identification Views

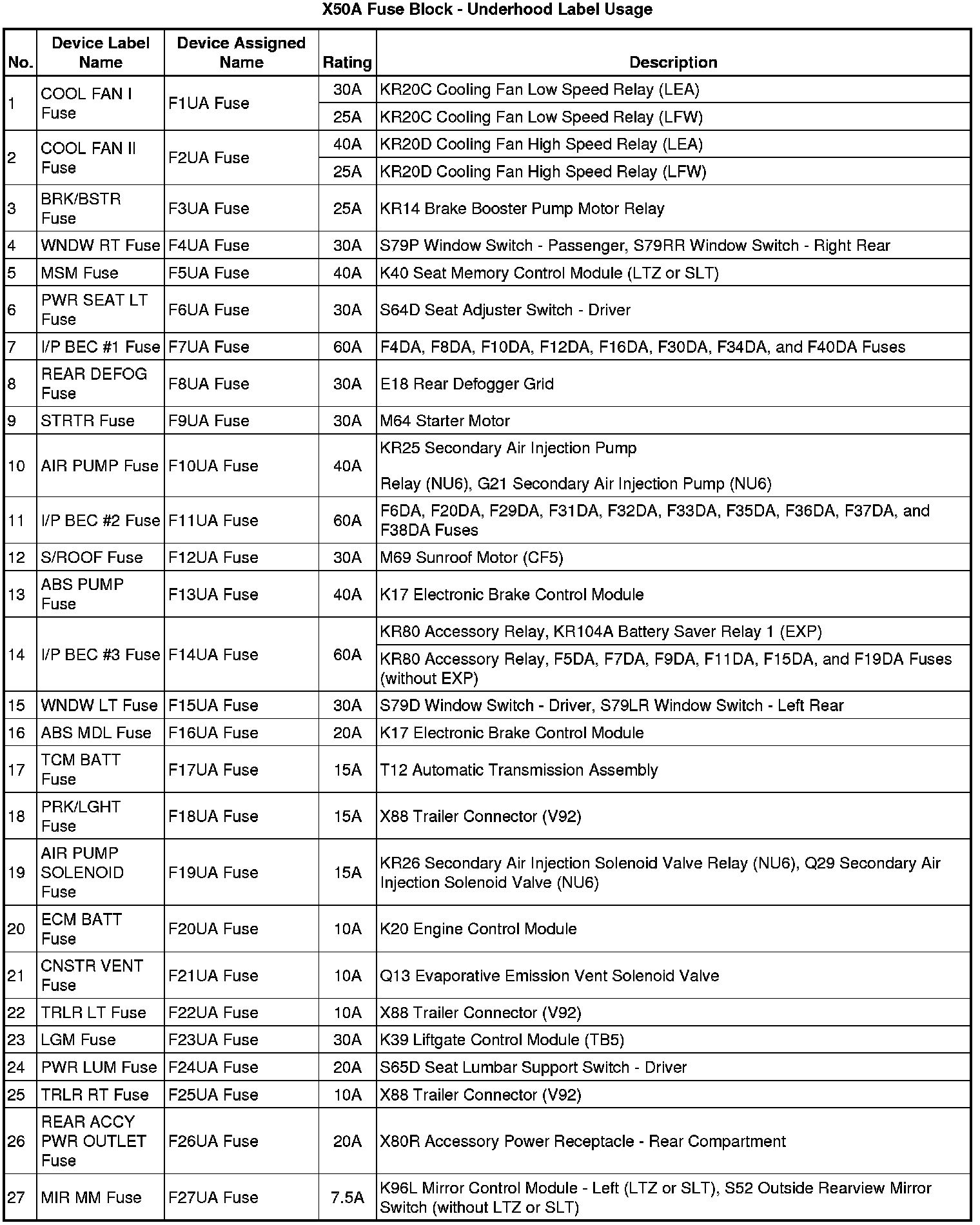

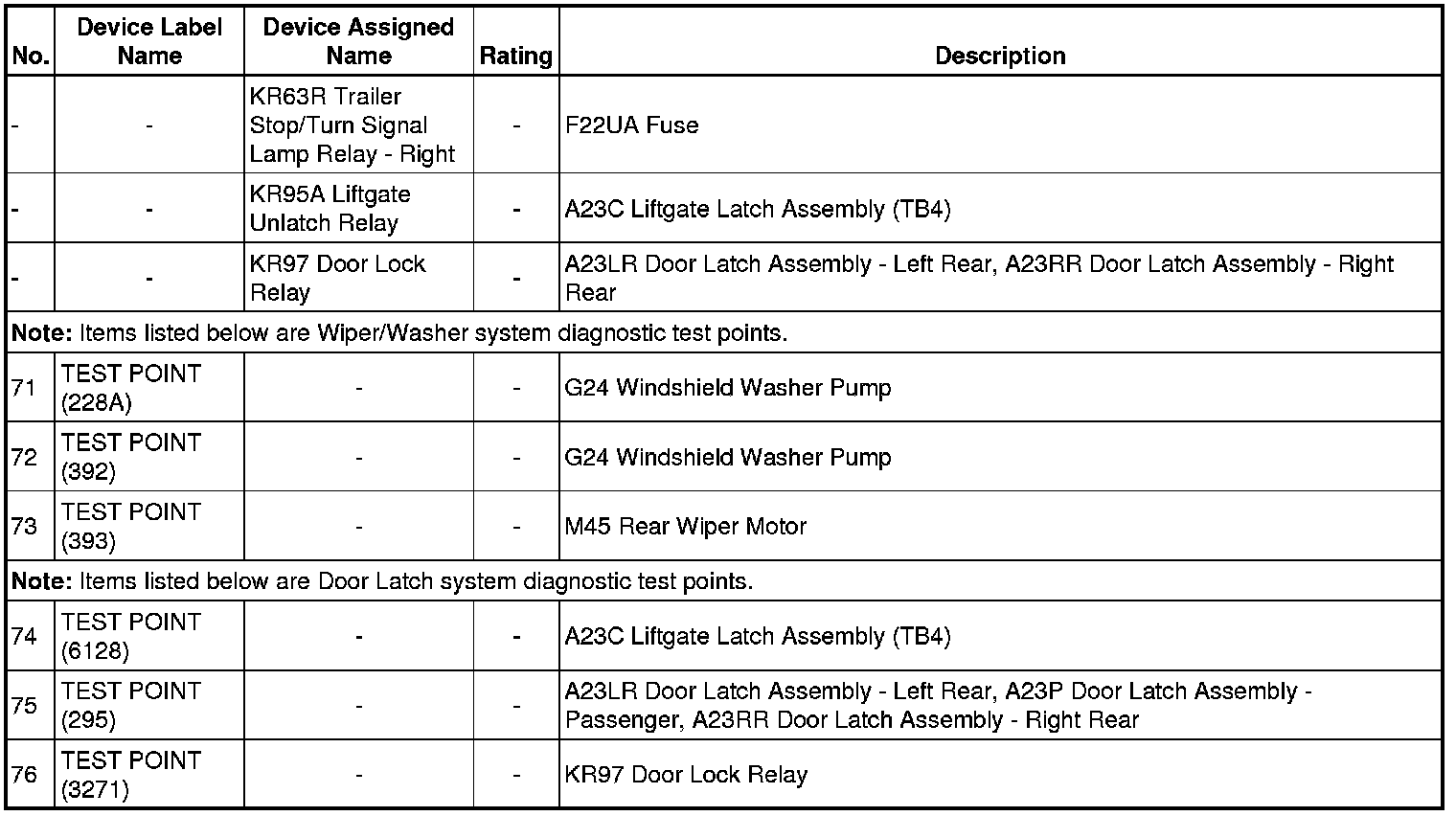

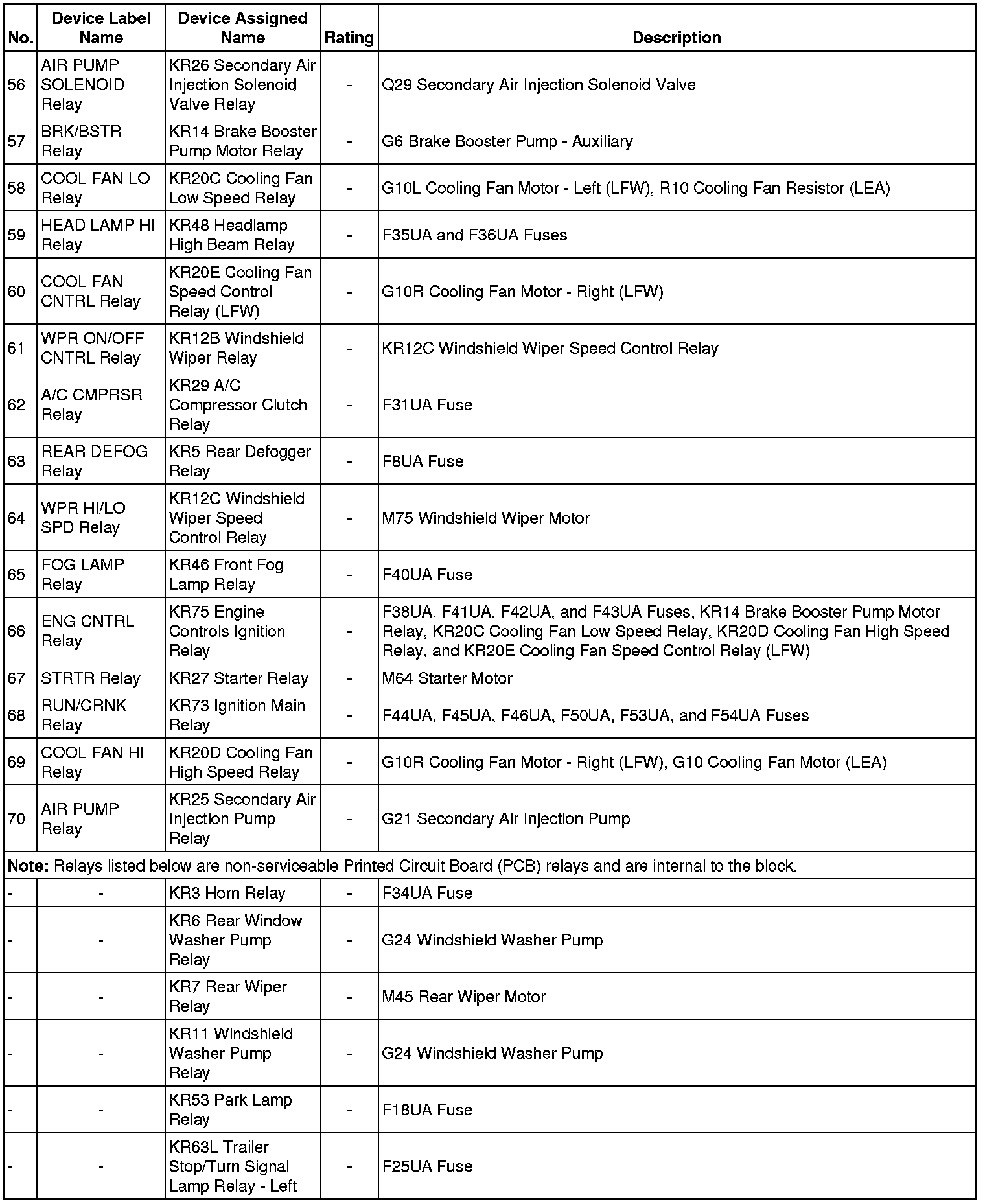

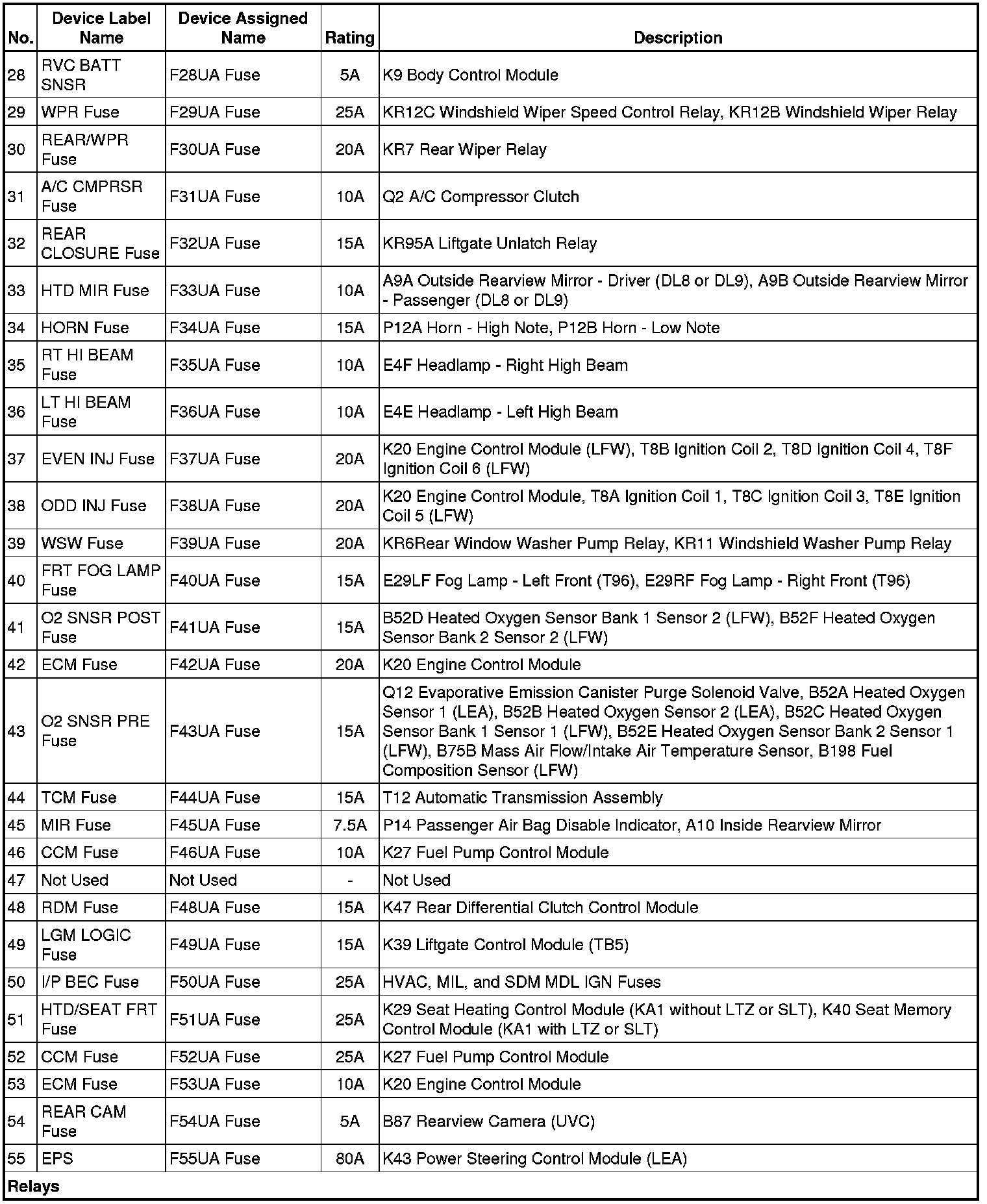

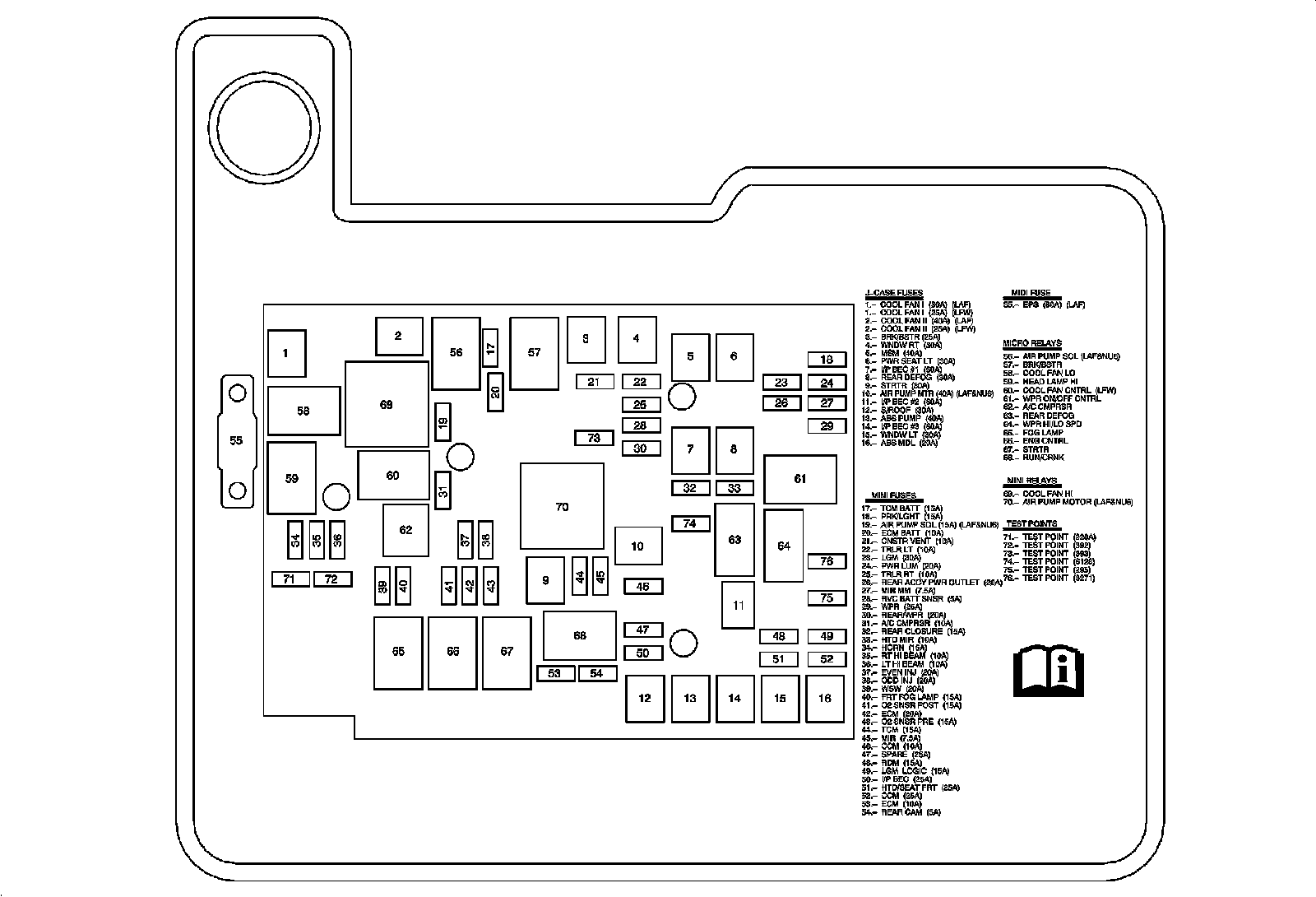

X50A Fuse Block - Underhood Label
