Home >> GMC >> 2012 >> Terrain FWD L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Battery Current Sensor >> Diagrams

Battery Current Sensor: Diagrams

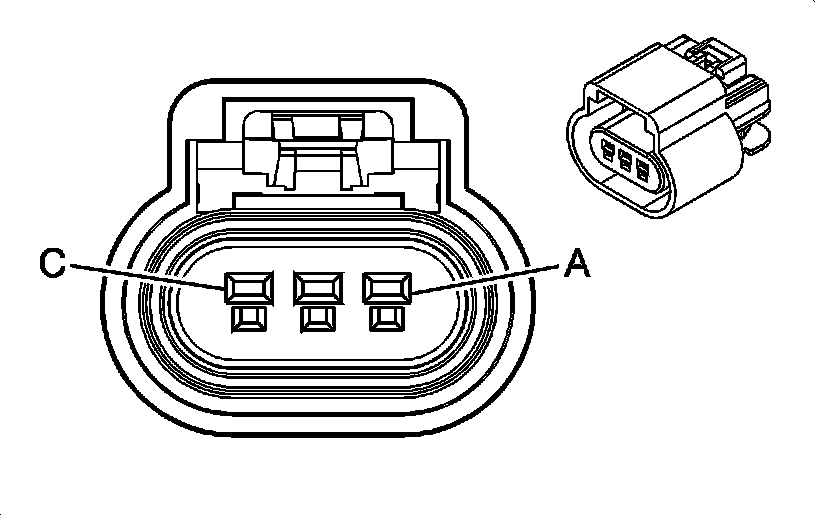

Component Connector End Views

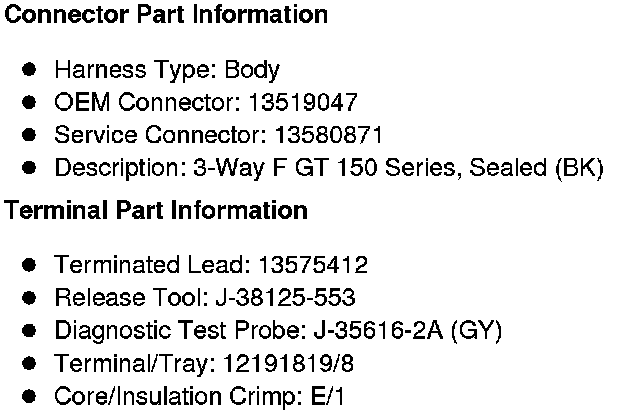

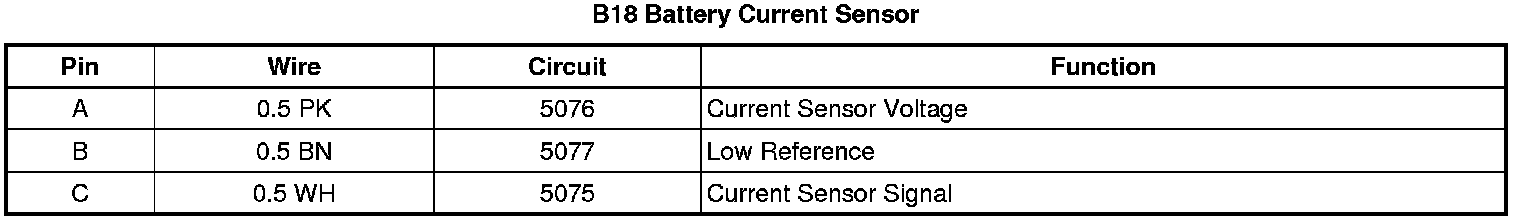

B18 Battery Current Sensor
