Home >> GMC >> 2012 >> Terrain FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module >> Power Steering Control Module X3

Power Steering Control Module X3

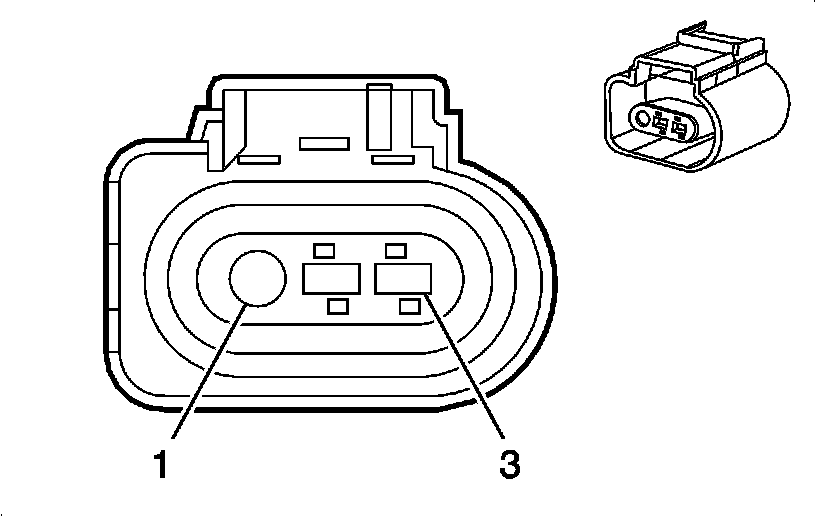

Component Connector End Views

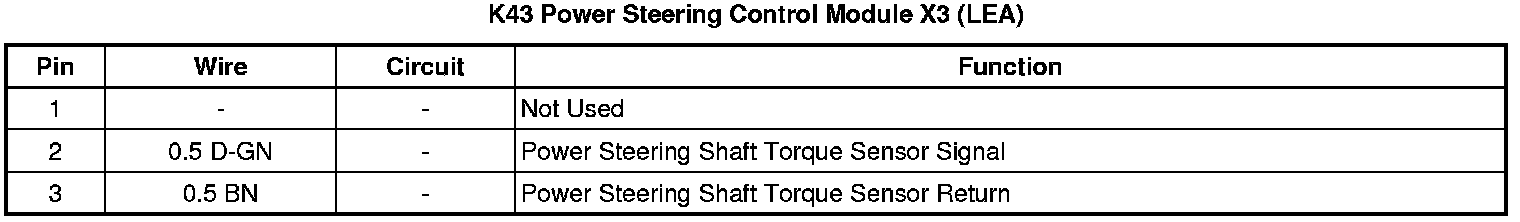

K43 Power Steering Control Module X3 (LEA)
