Steering Control Module
>>
Power Steering Control Module X2
Power Steering Control Module X2

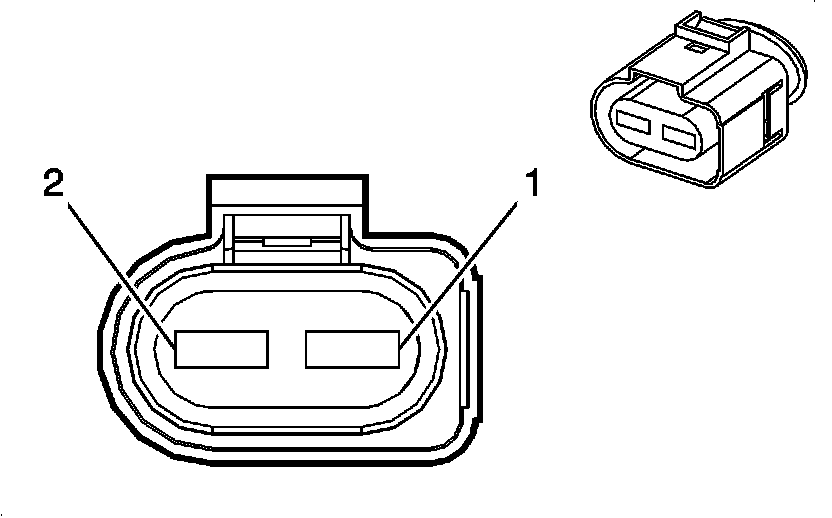

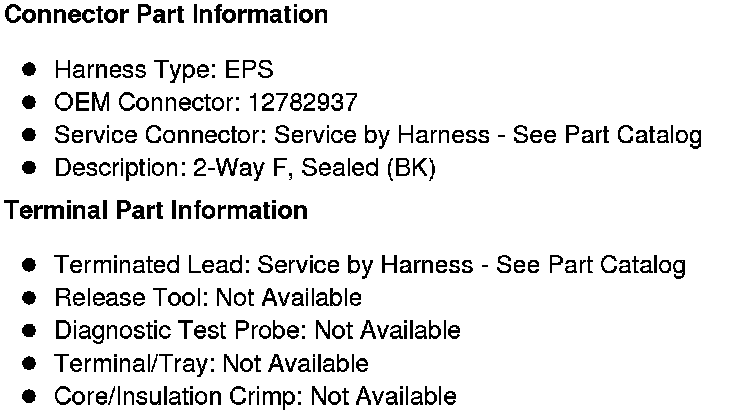

Component Connector End Views

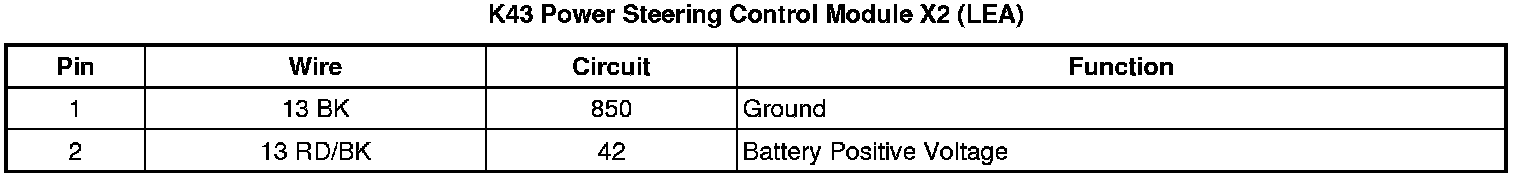

K43 Power Steering Control Module X2 (LEA)
