Steering Control Module
>>
Power Steering Control Module X1
Power Steering Control Module X1

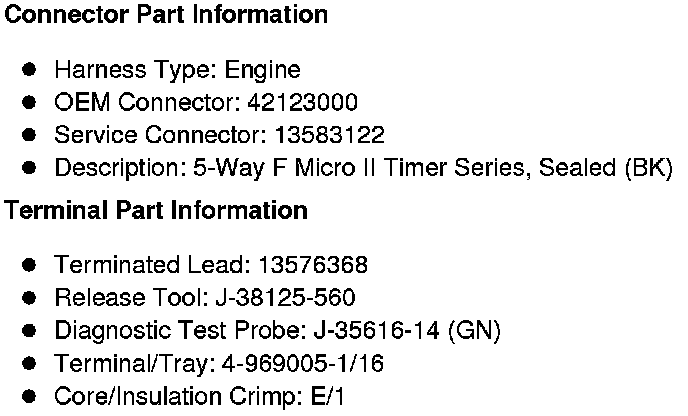

Component Connector End Views

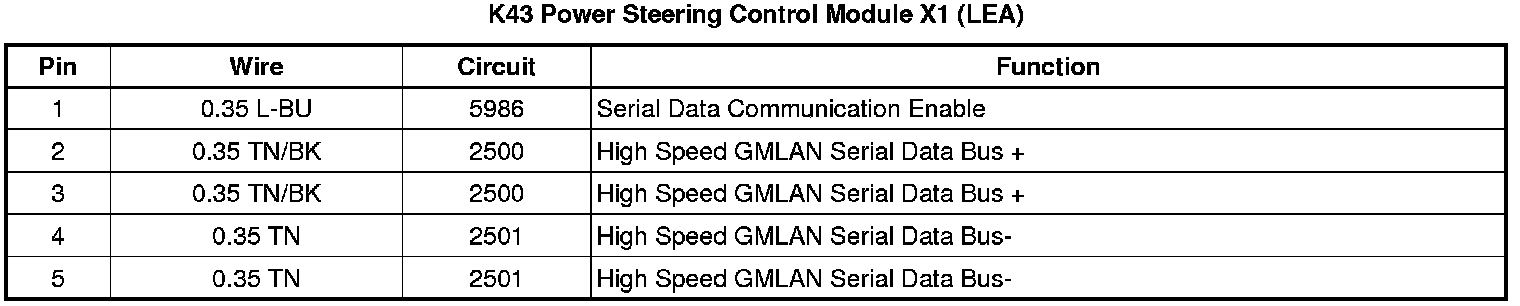

K43 Power Steering Control Module X1 (LEA)
