Power Trunk / Liftgate Control Module
Component Connector End Views

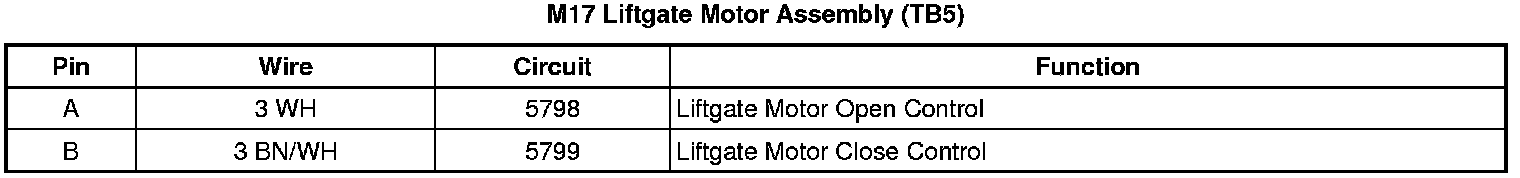

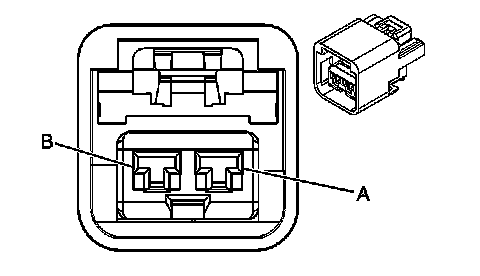

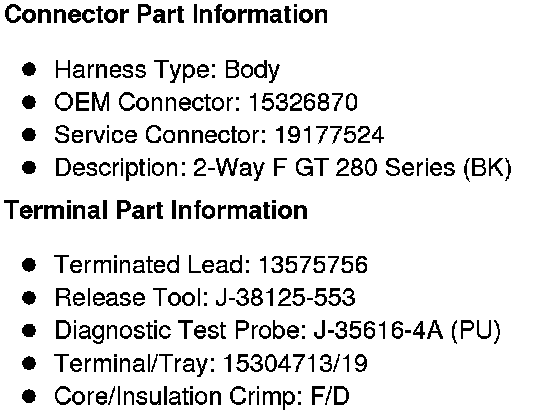

M17 Liftgate Motor Assembly (TB5)
