Seat Memory Control Module X2 (LTZ or SLT)
Seat Memory Control Module X2 (LTZ or SLT)
Component Connector End Views

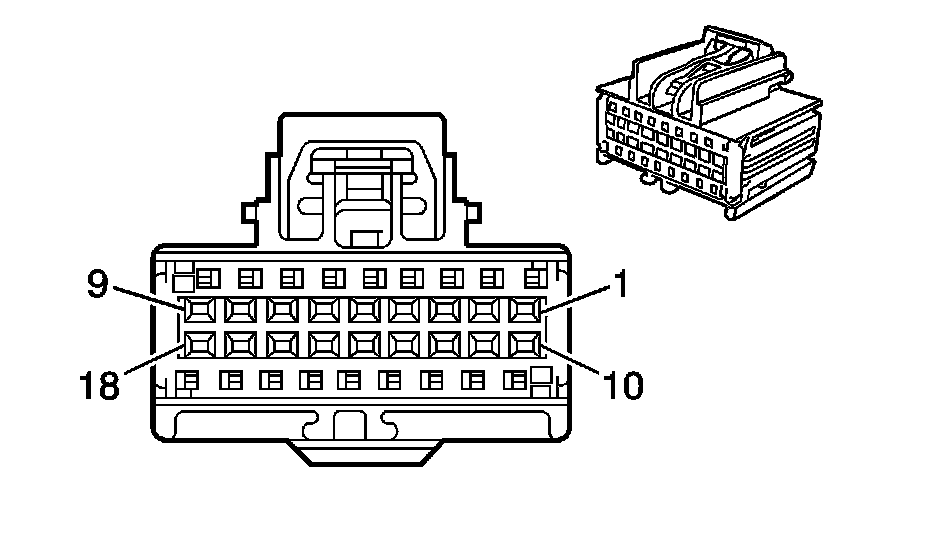

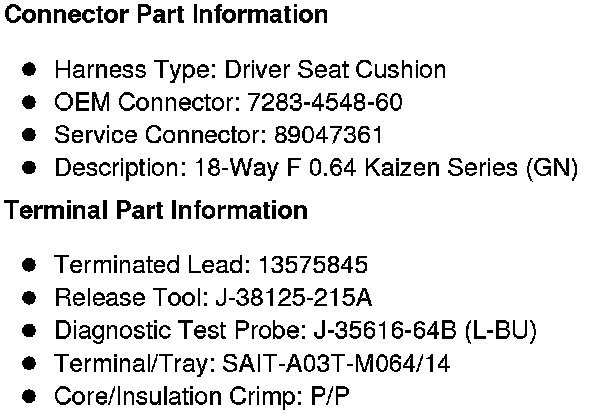

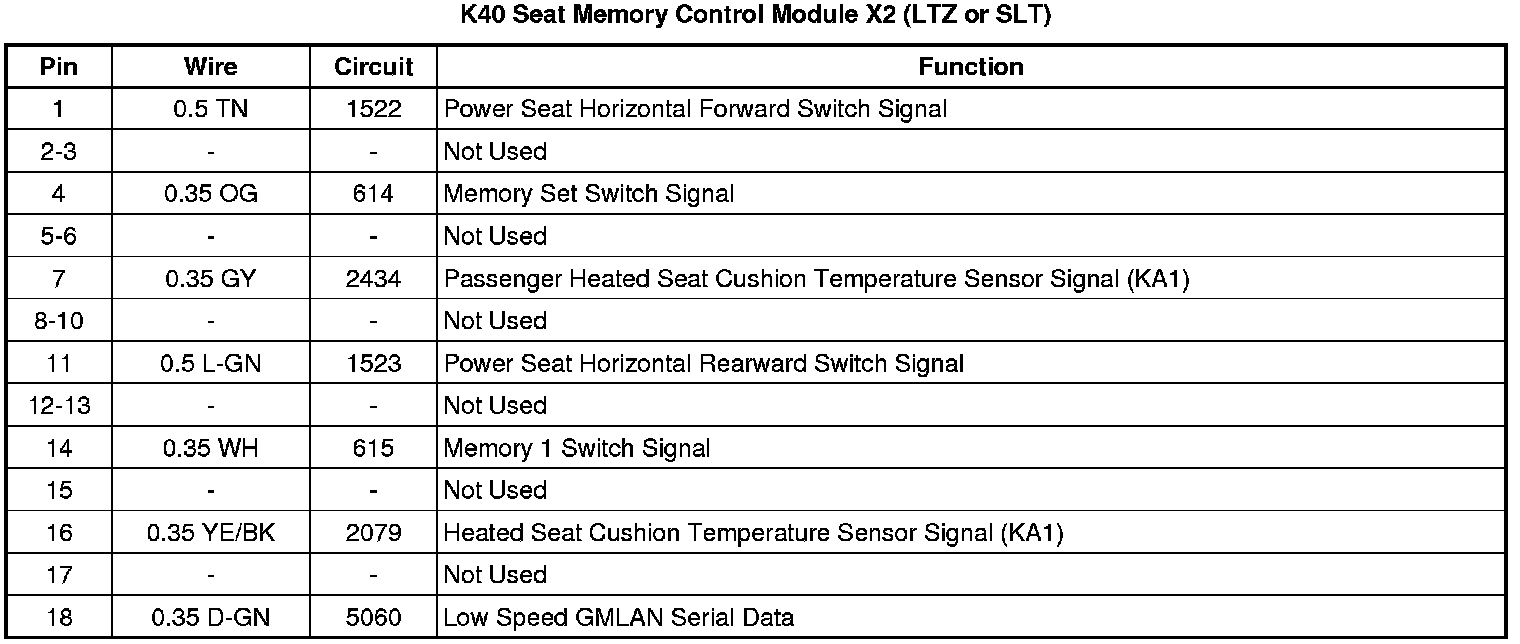

K40 Seat Memory Control Module X2 (LTZ or SLT)
