lemon-mirror
:
Home
>>
GMC
>>
2012
>>
Terrain FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Control Module
Power Mirror Control Module
Component Connector End Views

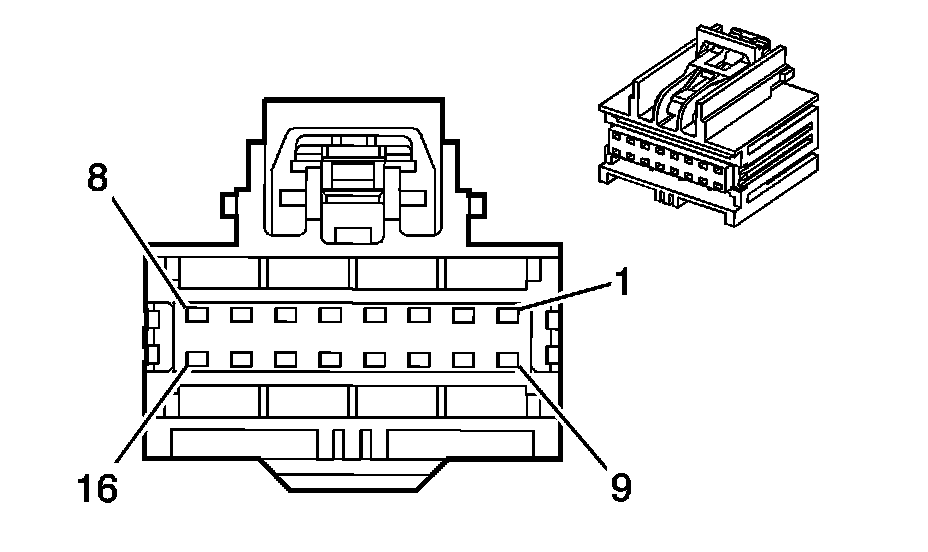

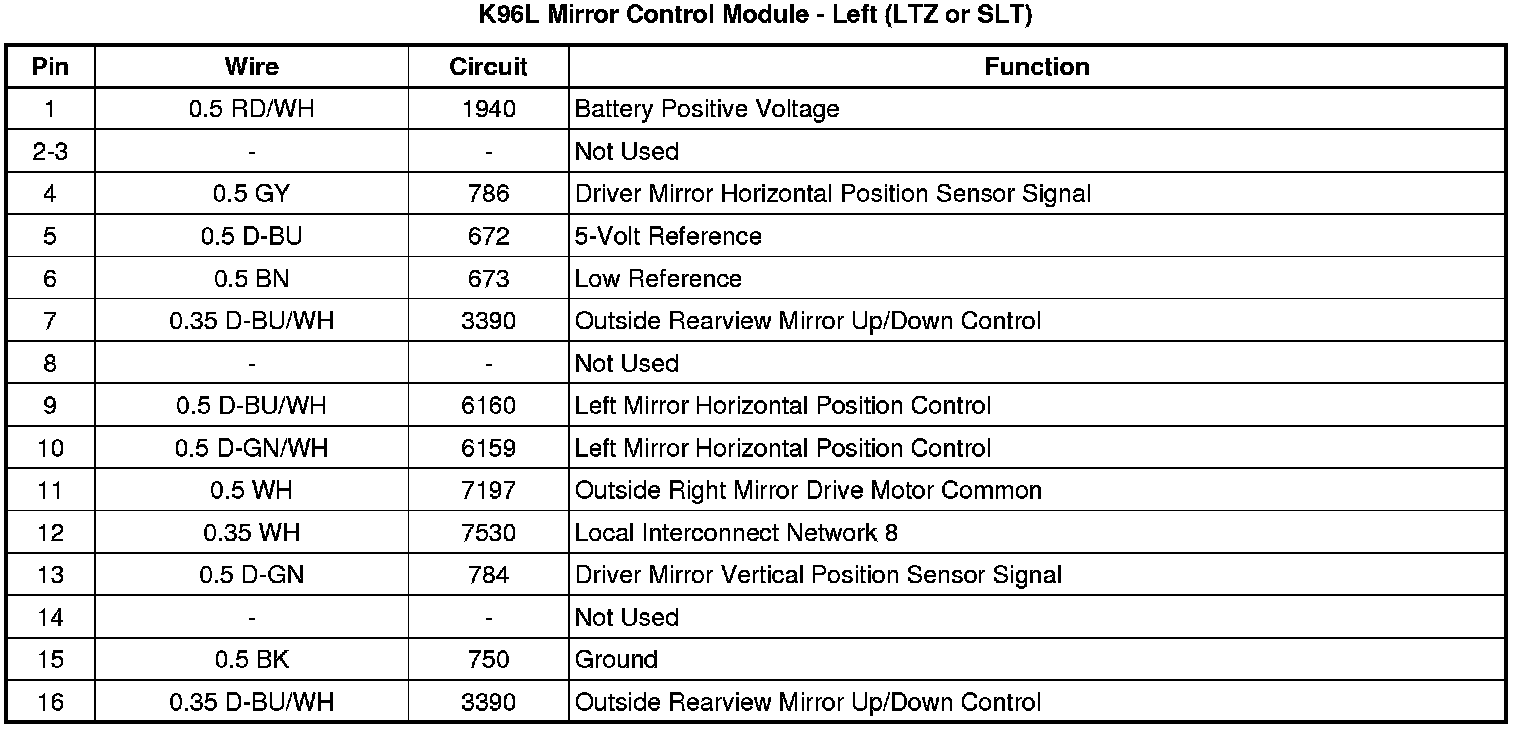

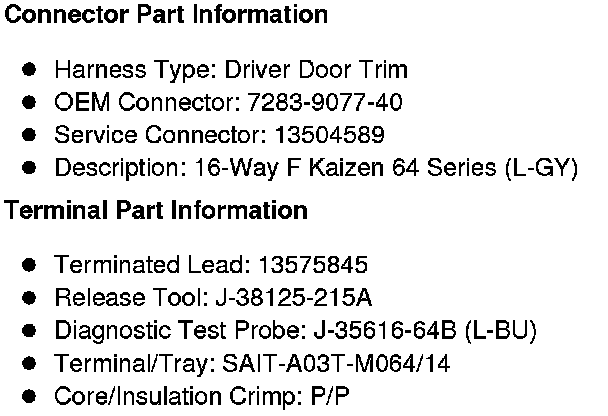

K96L Mirror Control Module - Left (LTZ or SLT)
