lemon-mirror
:
Home
>>
GMC
>>
2012
>>
Terrain FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Central Control Module
>>
Telematics Communication Interface Control Module X2 (UE1)
Telematics Communication Interface Control Module X2 (UE1)
Component Connector End Views

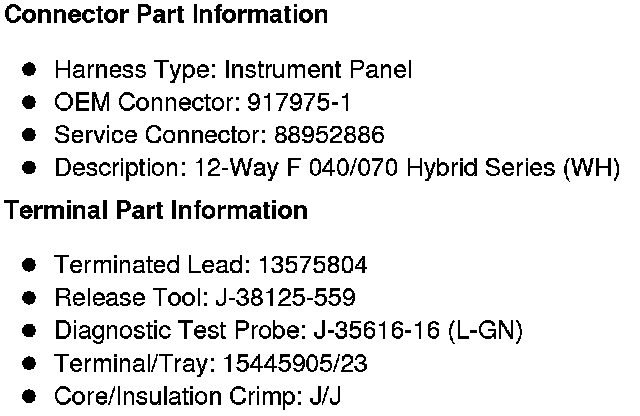

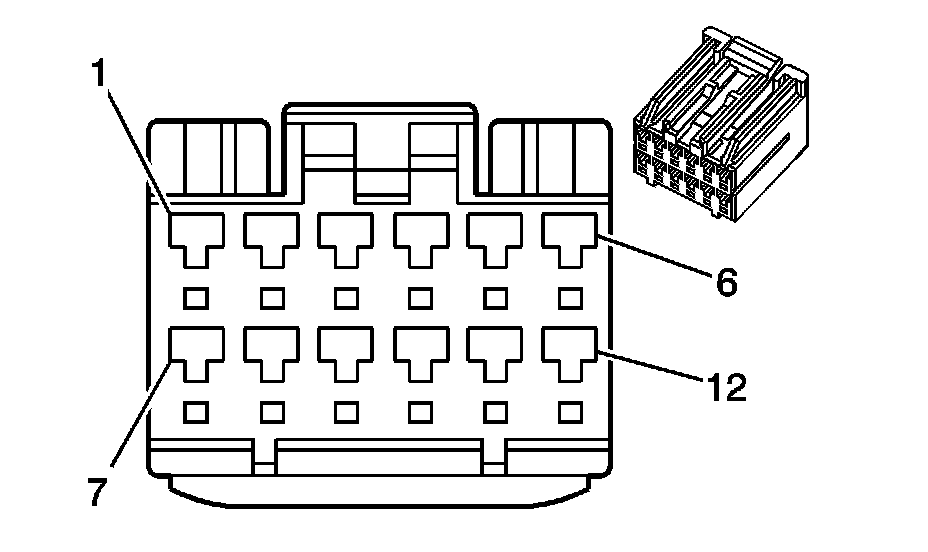

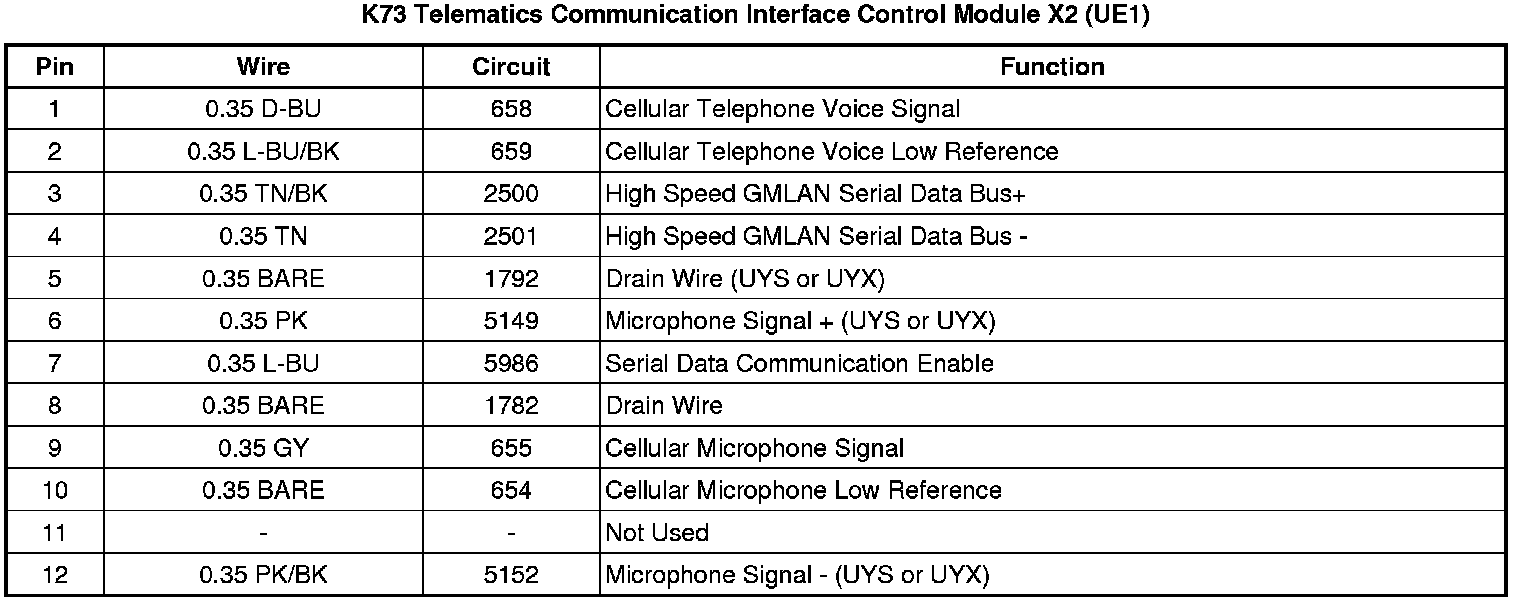

K73 Telematics Communication Interface Control Module X2 (UE1)
