Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

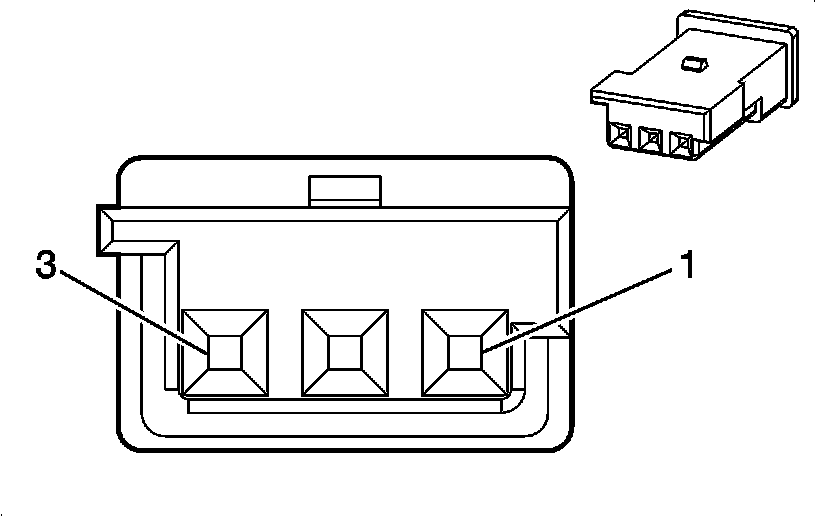

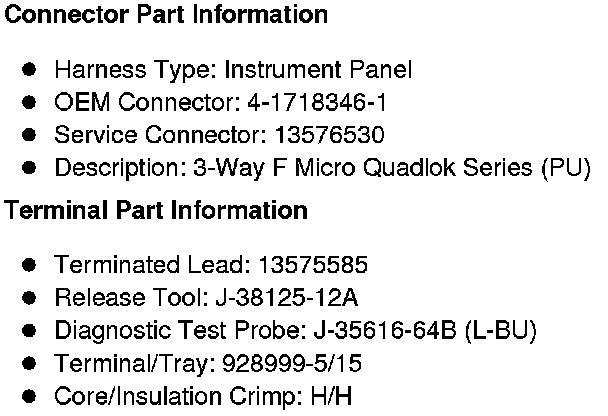

Component Connector End Views
K89 Immobilizer Control Module
