Home >> GMC >> 2012 >> Canyon 2WD L4-2.9L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Diagrams

Coolant Temperature Sensor/Switch (For Computer): Diagrams

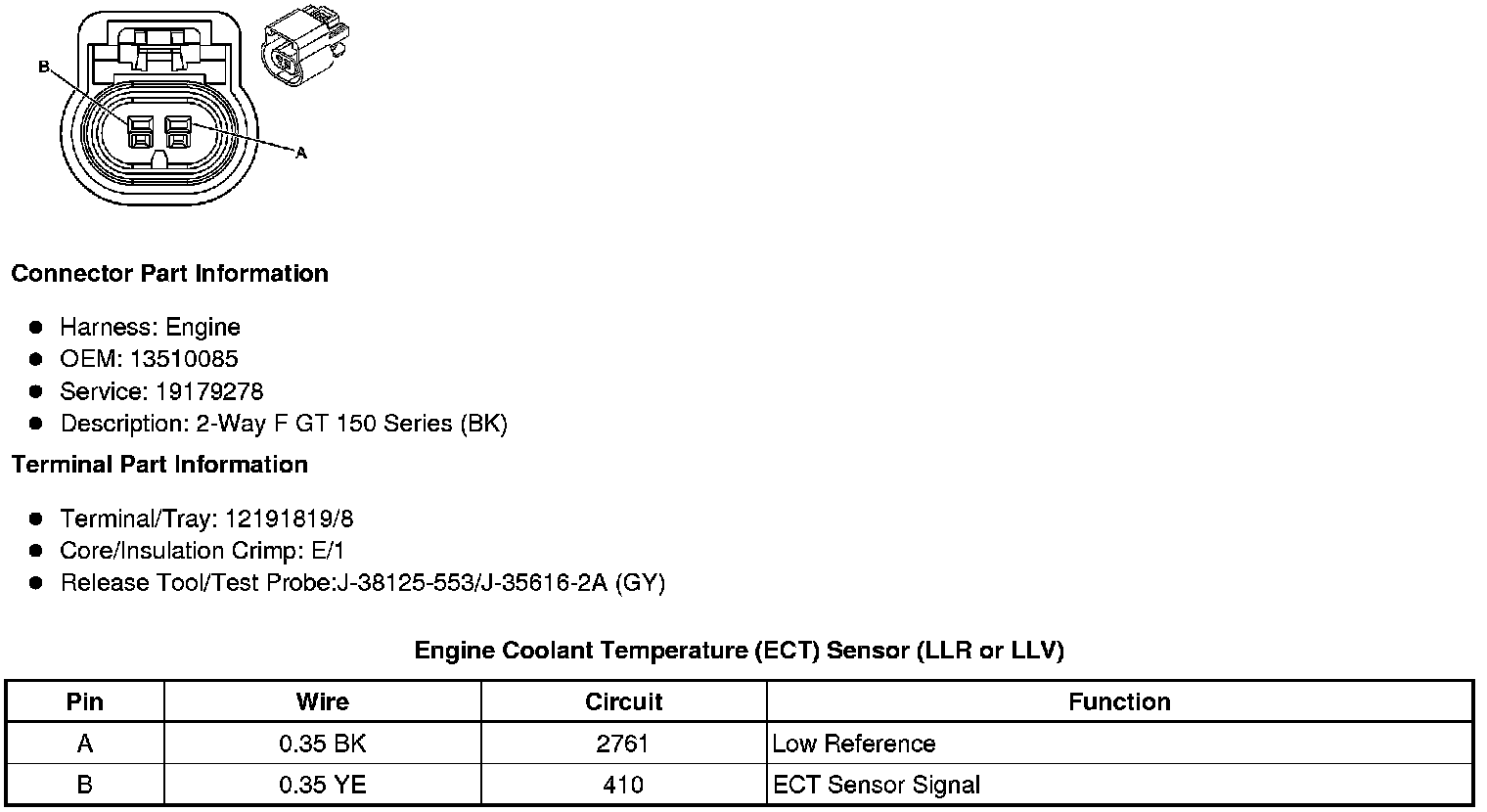

Component Connector End Views

Engine Coolant Temperature (ECT) Sensor (LLR or LLV)
