GMC
>>
2011
>>
Yukon 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor/Pump, Suspension Control
Compressor/Pump, Suspension Control
Component Connector End Views

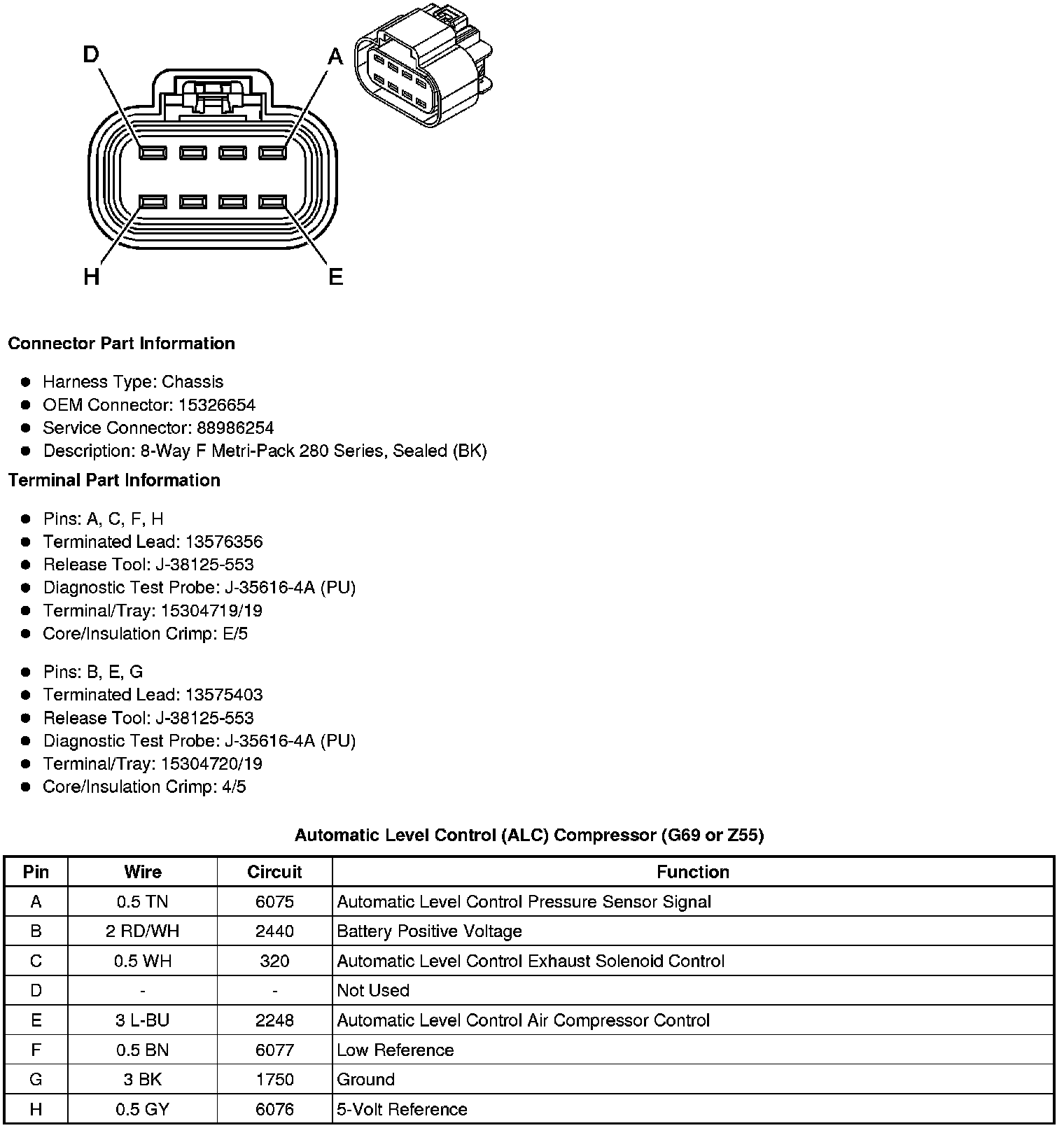

Automatic Level Control (ALC) Compressor (G69 or Z55)
