Oxygen Sensor: Diagrams




Component Connector End Views

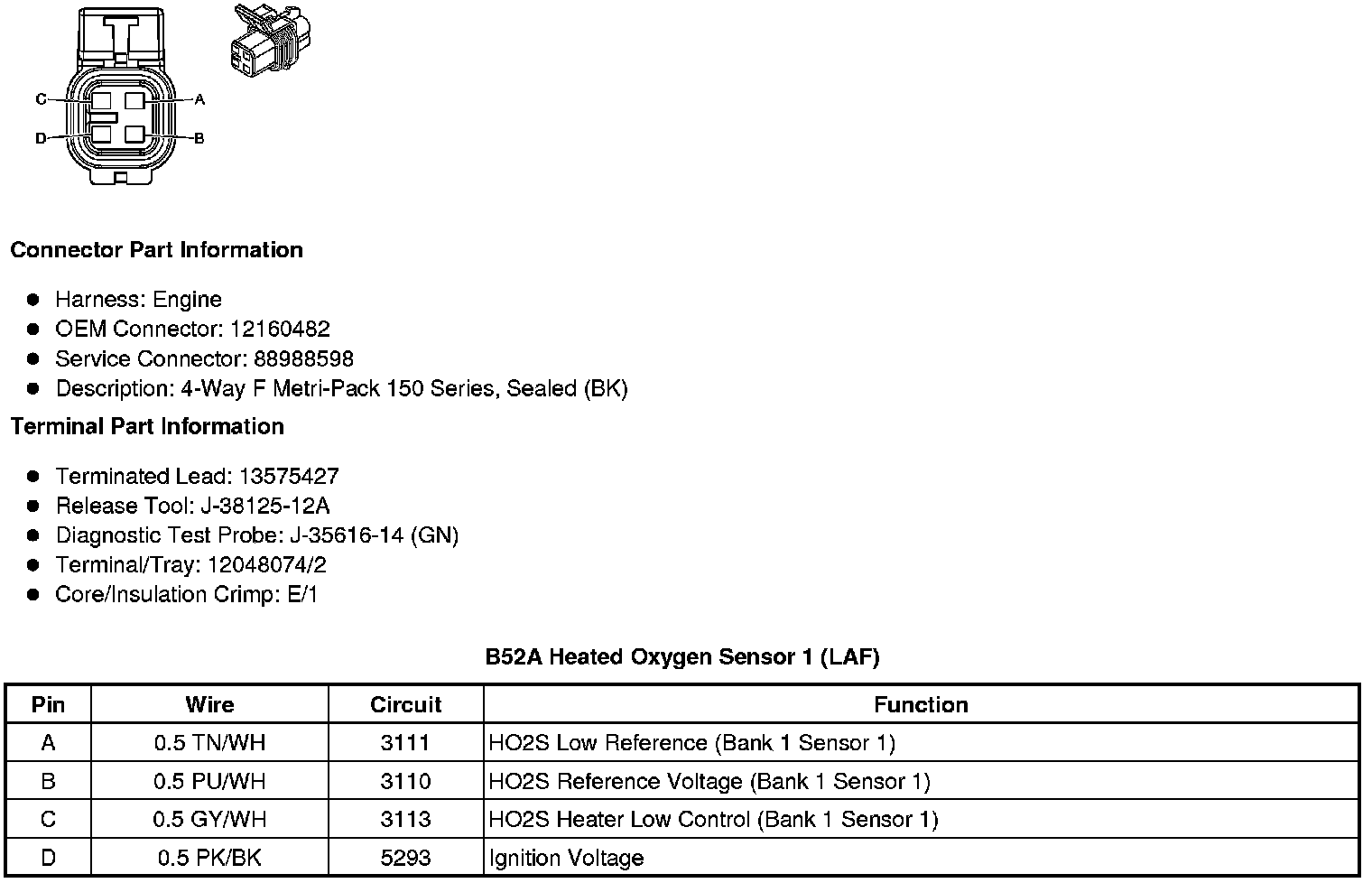

B52A Heated Oxygen Sensor 1 (LAF)

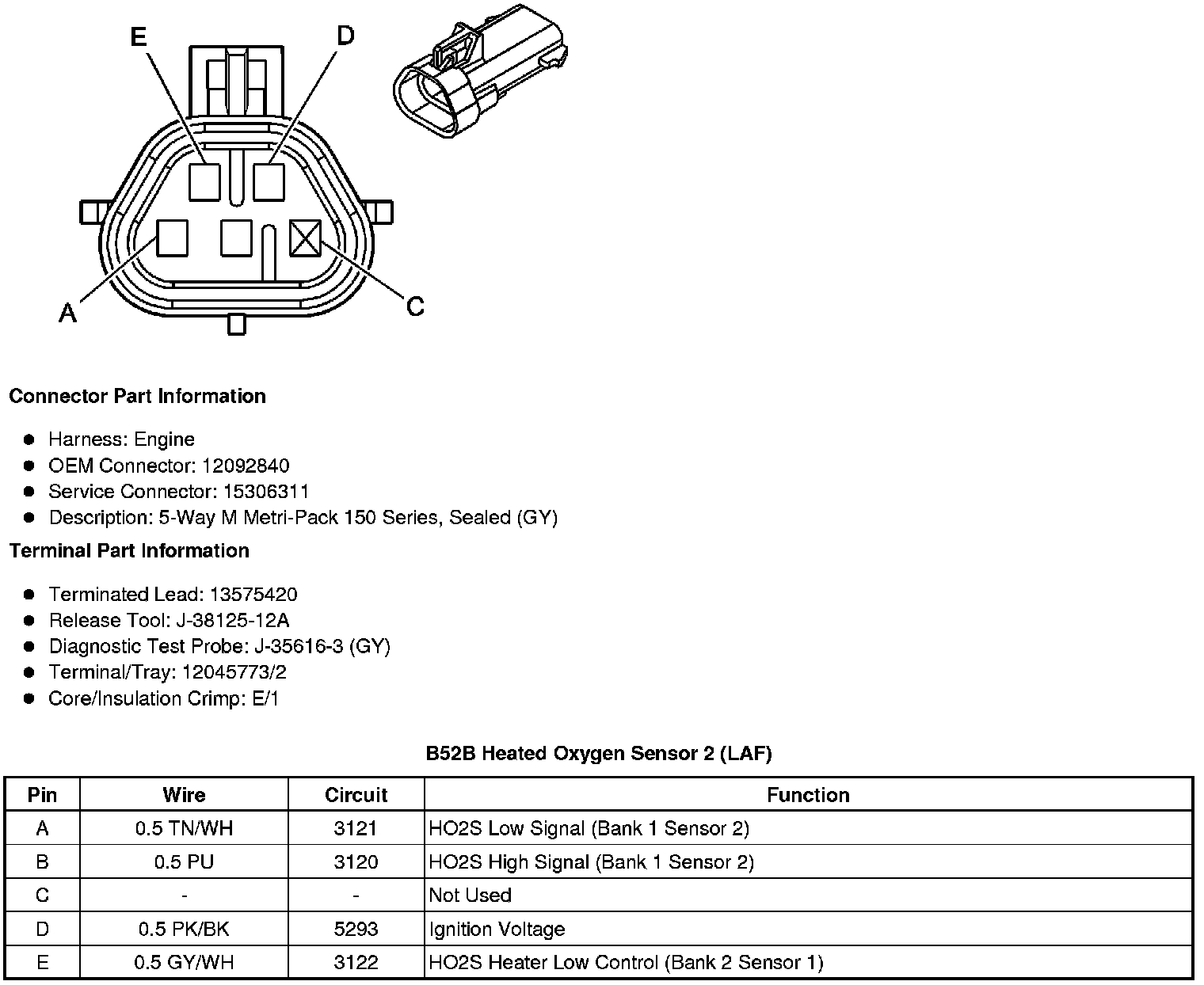

B52B Heated Oxygen Sensor 2 (LAF)

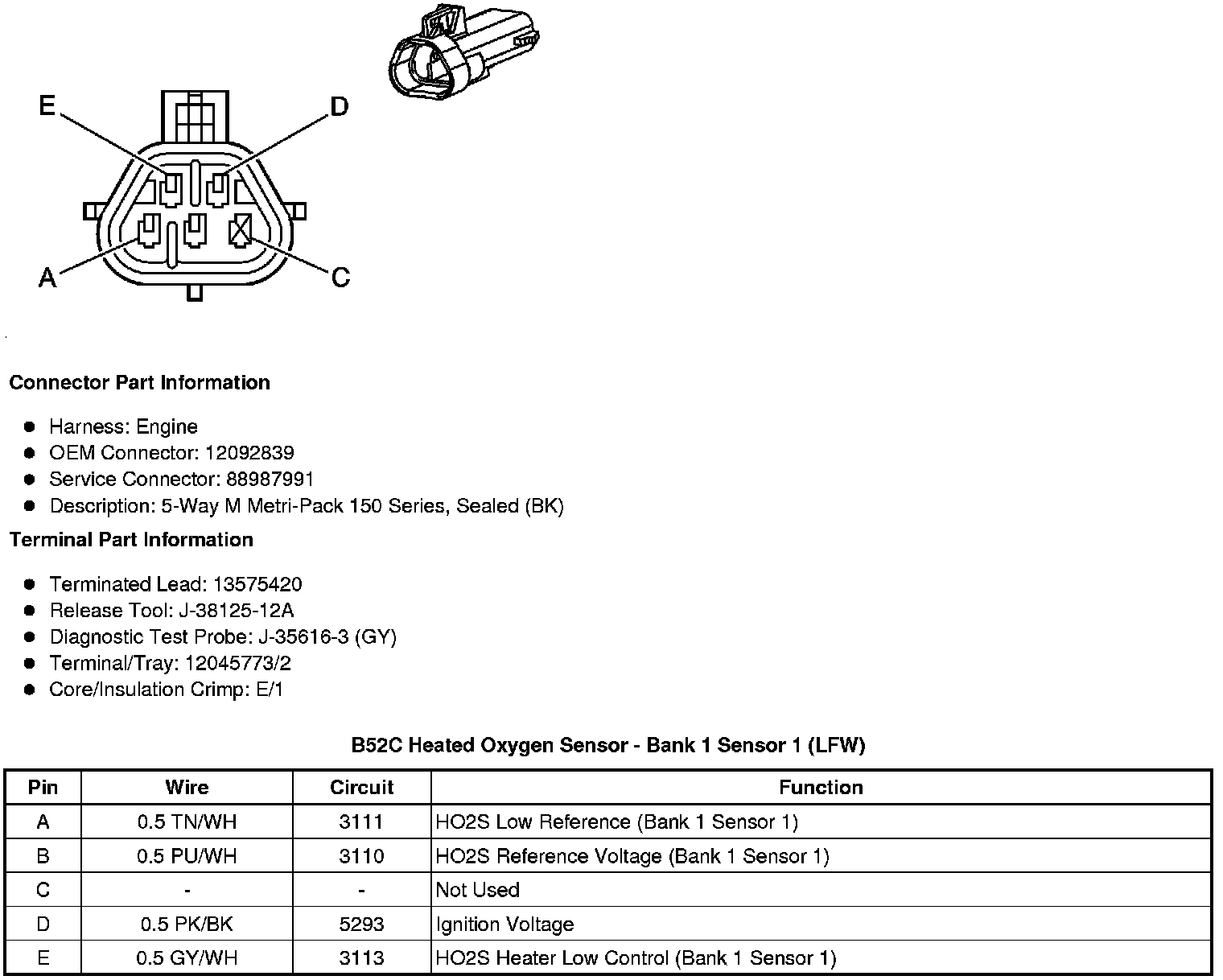

B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFW)

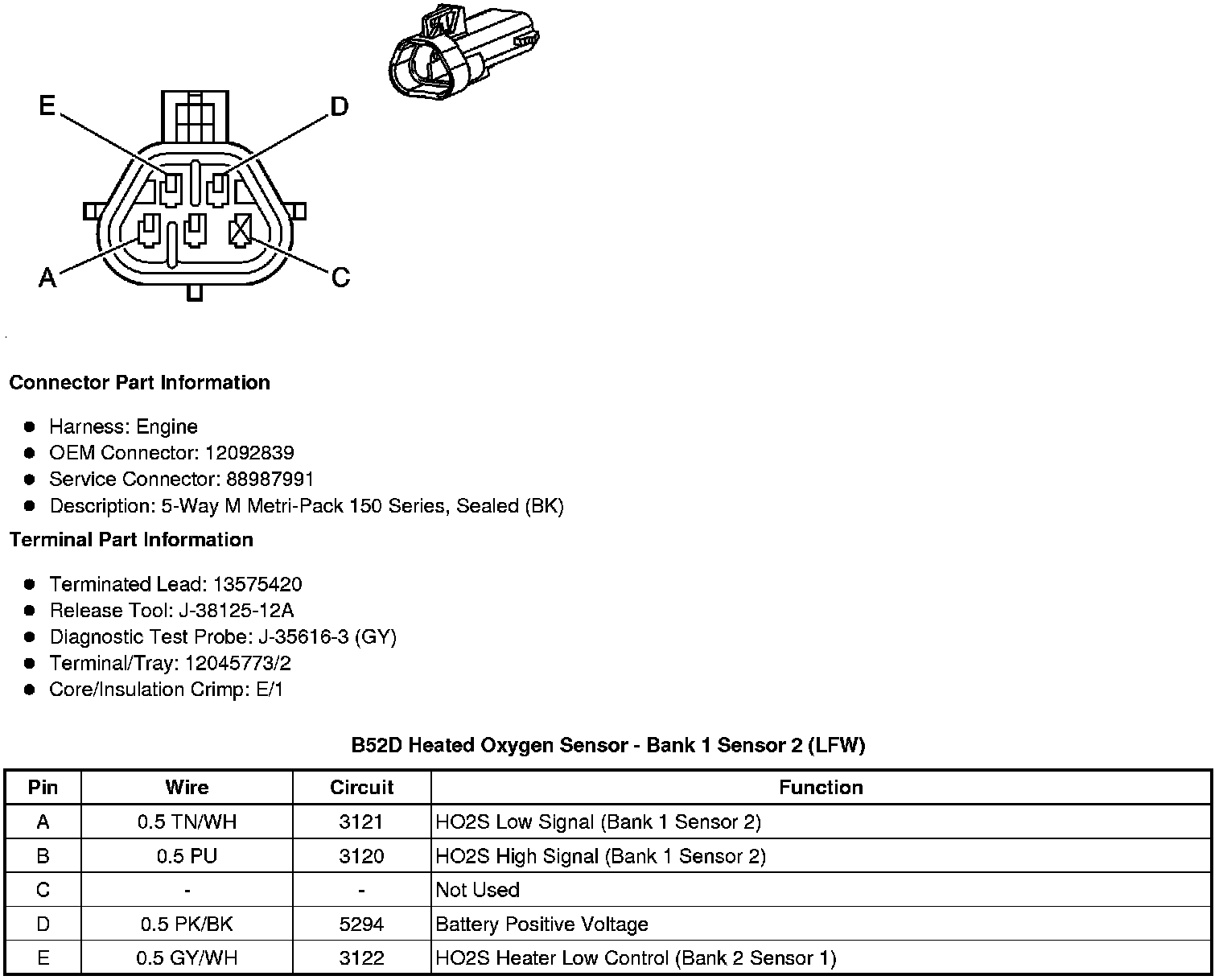

B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFW)





B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFW)





B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFW)
