Coolant Temperature Sensor/Switch (For Computer): Diagrams

Component Connector End Views

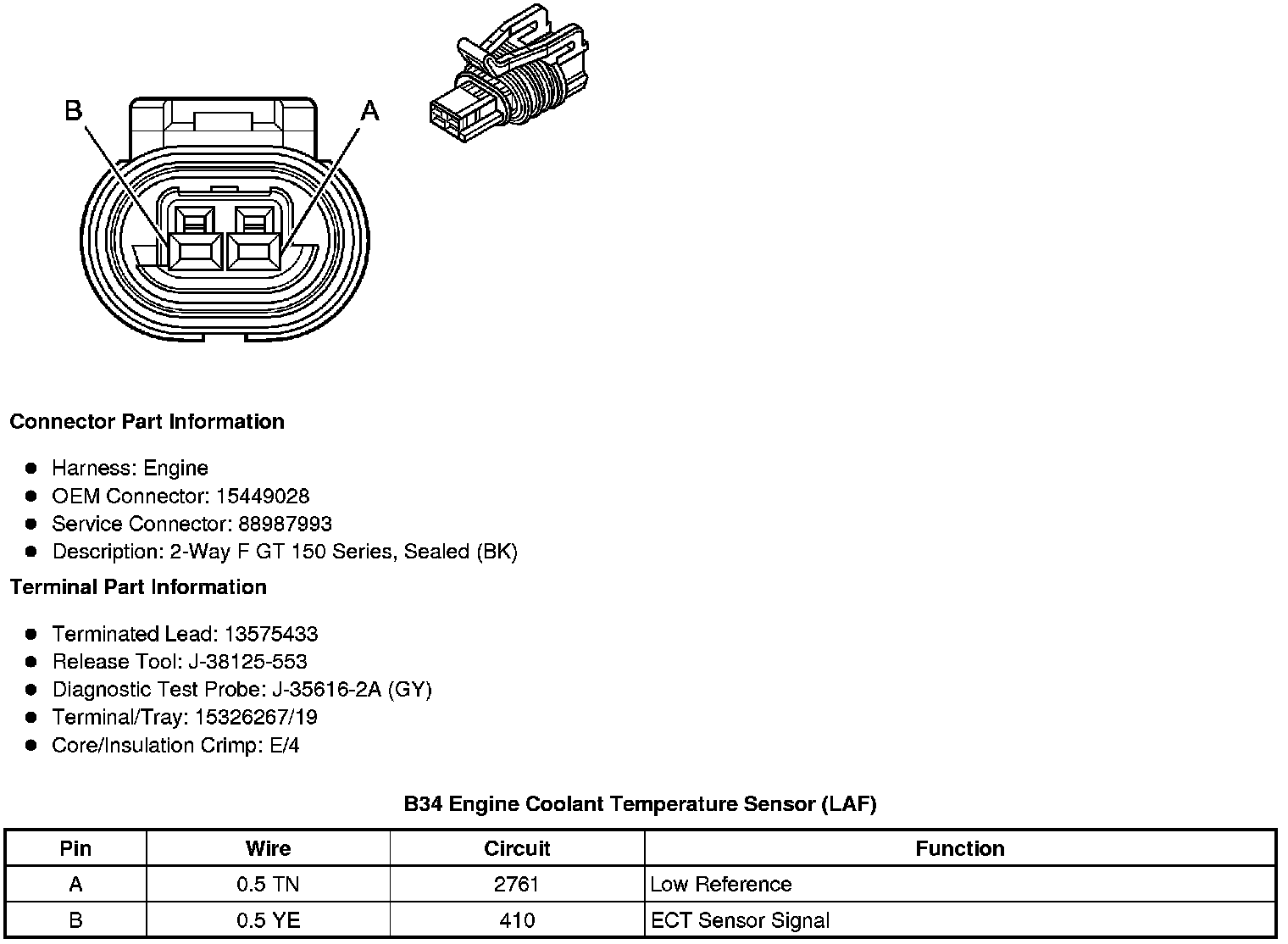

B34 Engine Coolant Temperature Sensor (LAF)

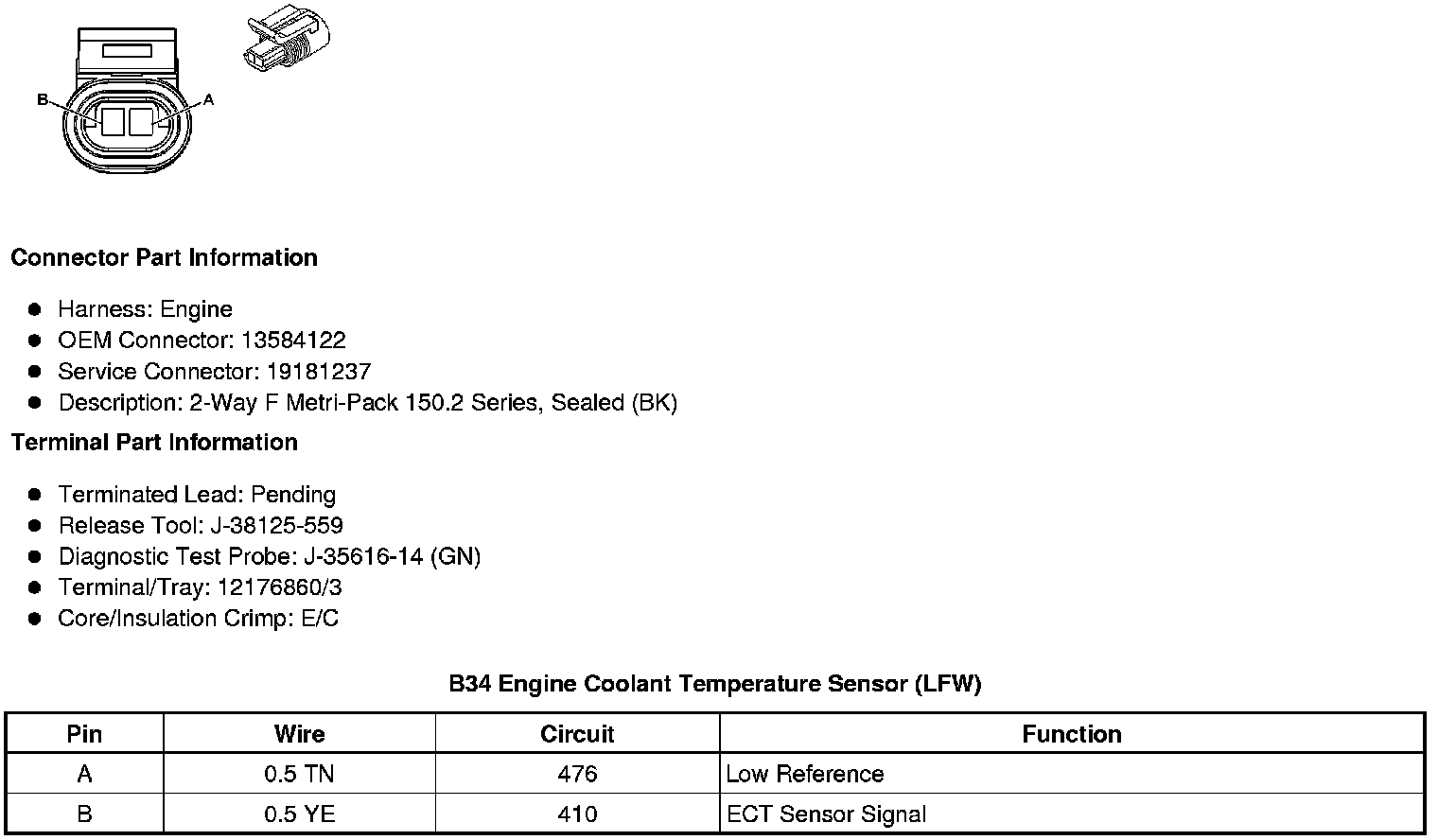

B34 Engine Coolant Temperature Sensor (LFW)
