Steering Control Module



Component Connector End Views

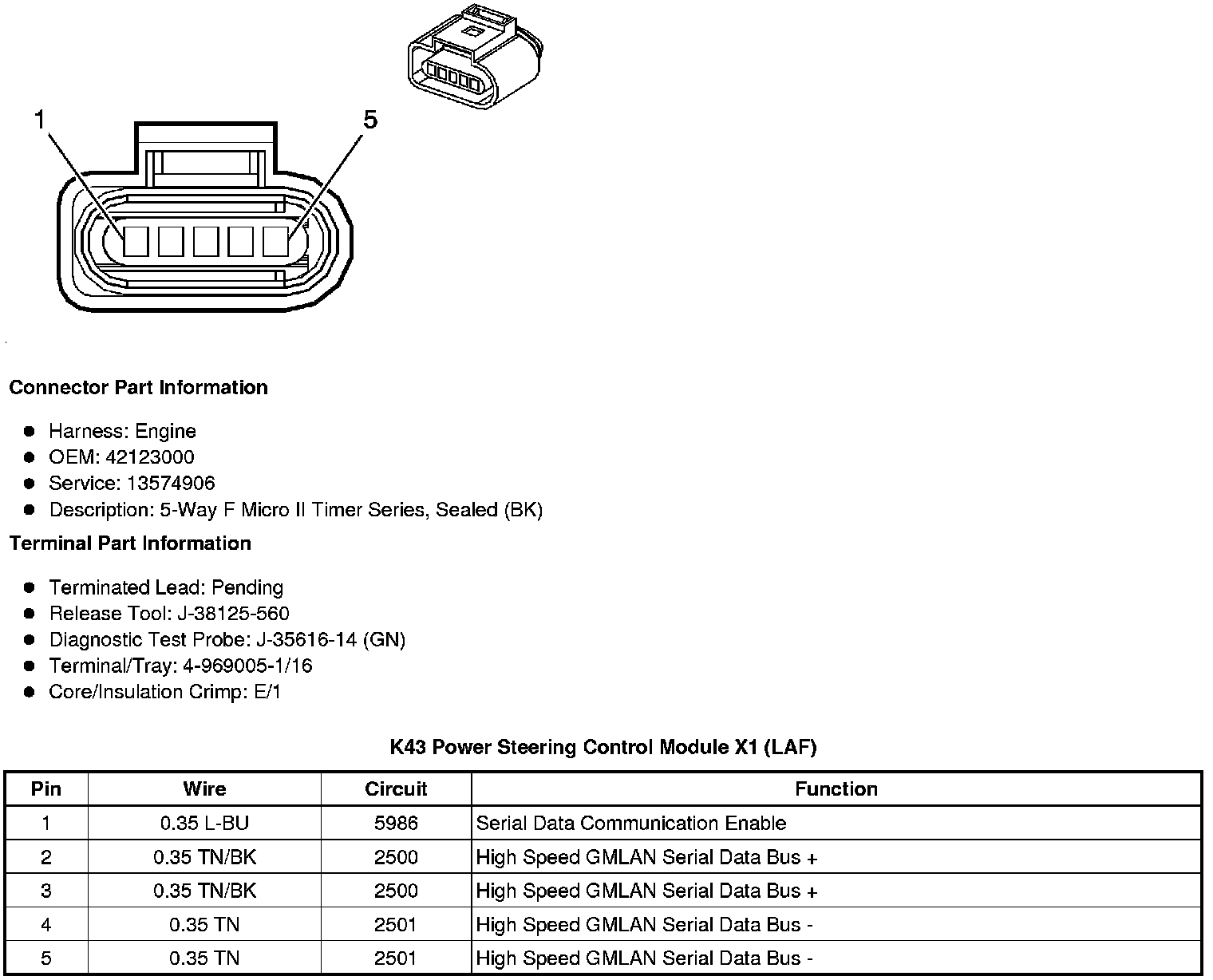

K43 Power Steering Control Module X1 (LAF)

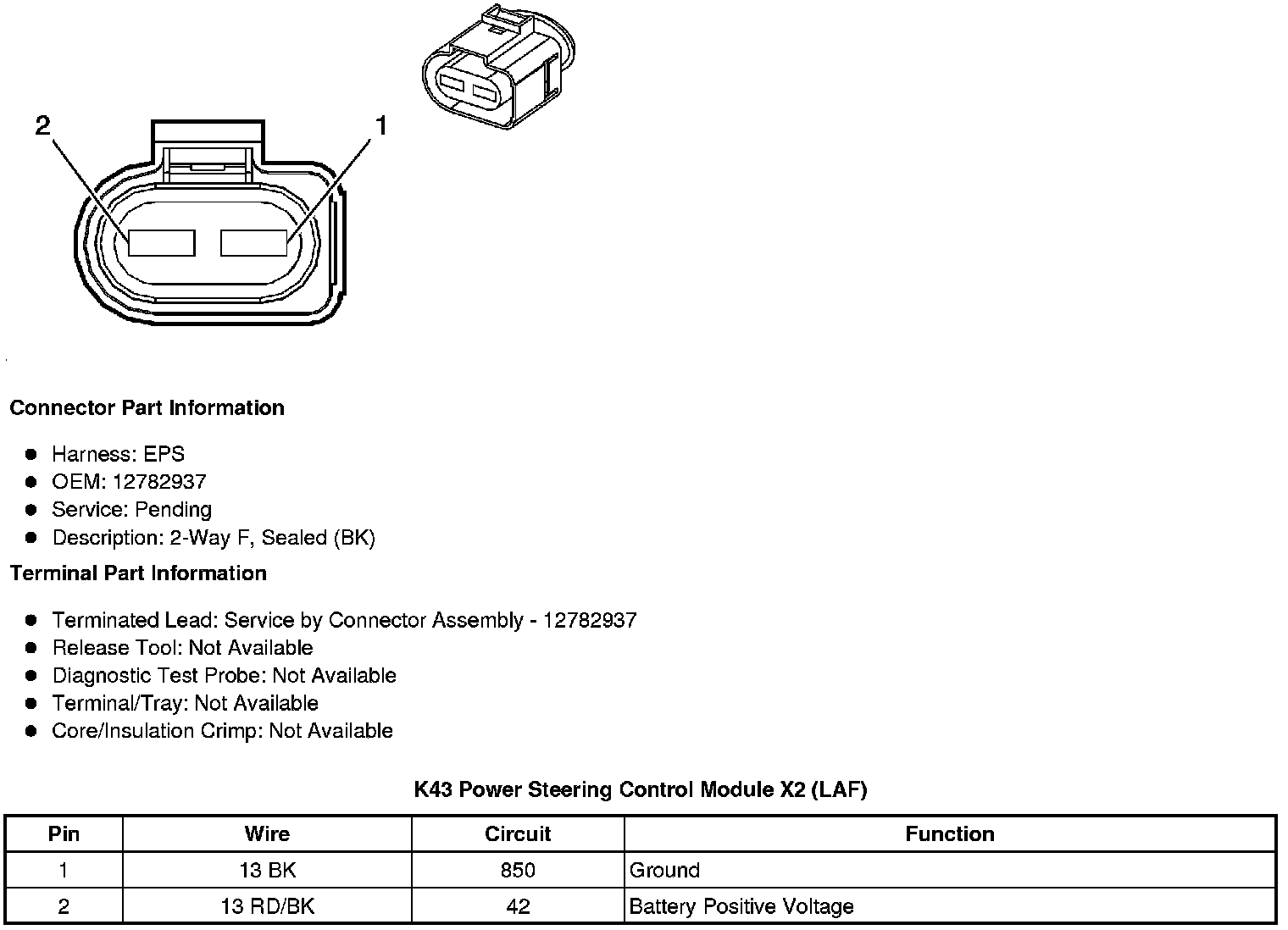

K43 Power Steering Control Module X2 (LAF)

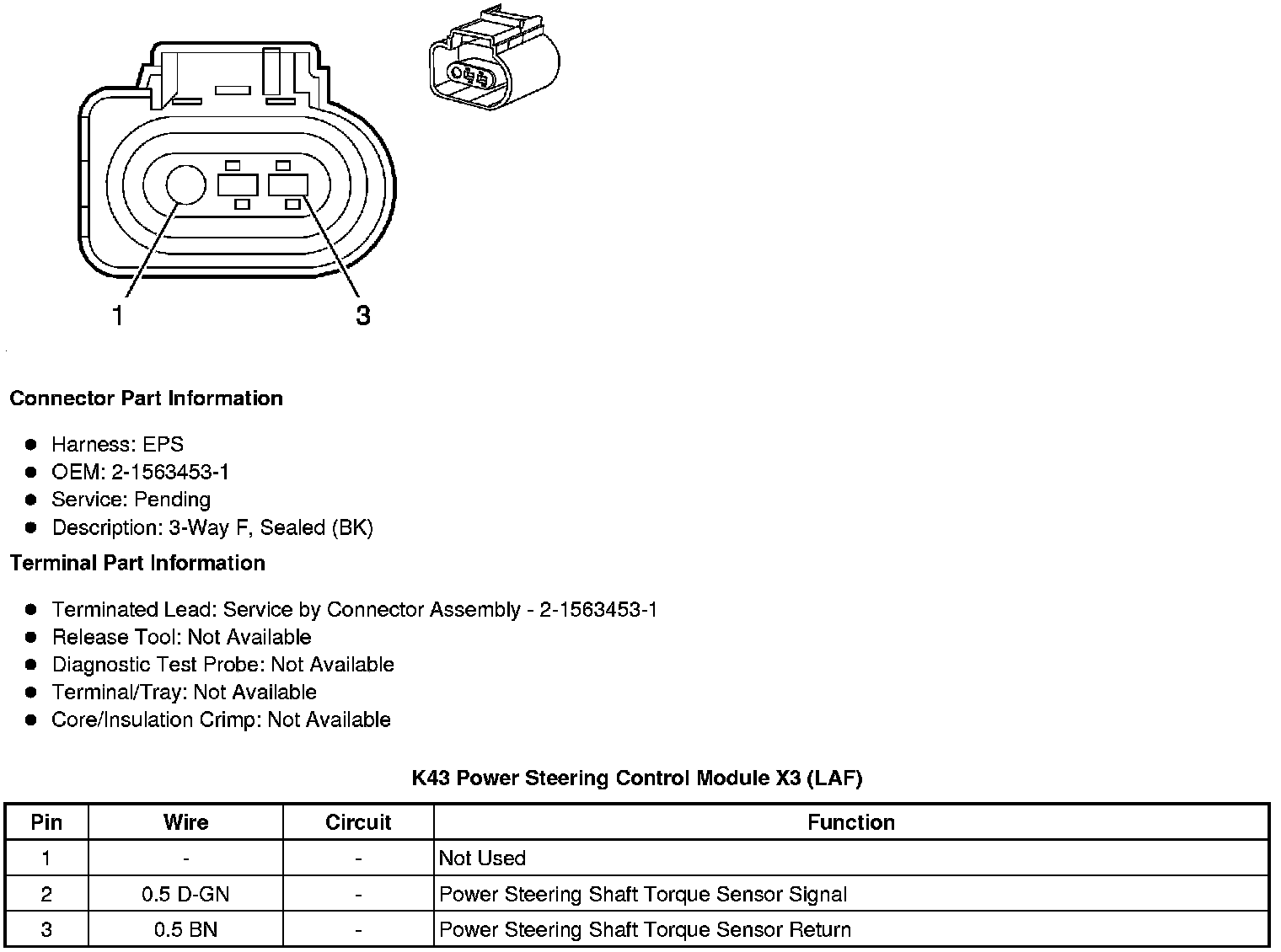

K43 Power Steering Control Module X3 (LAF)
