Power Trunk / Liftgate Control Module




Component Connector End Views

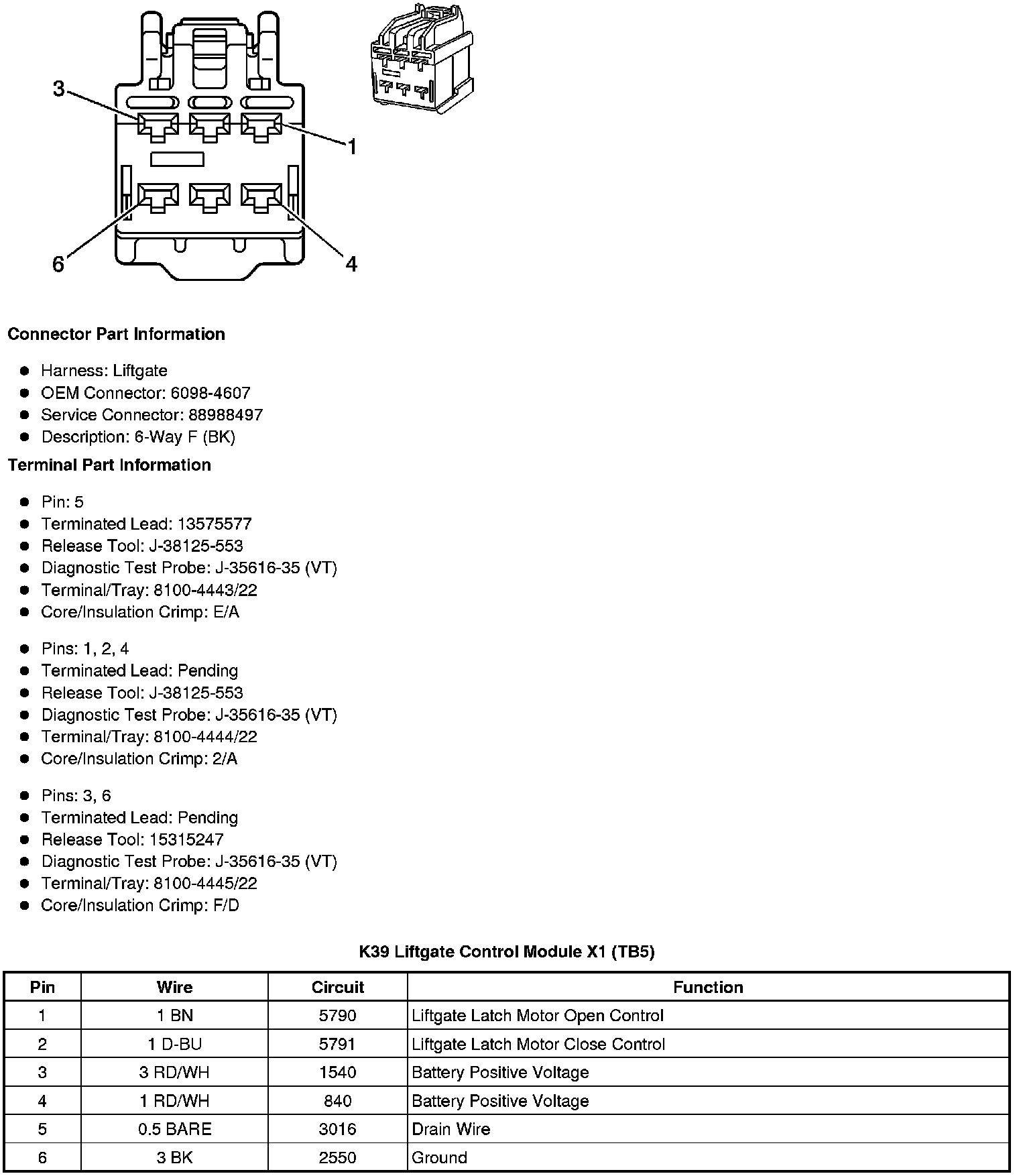

K39 Liftgate Control Module X1 (TB5)

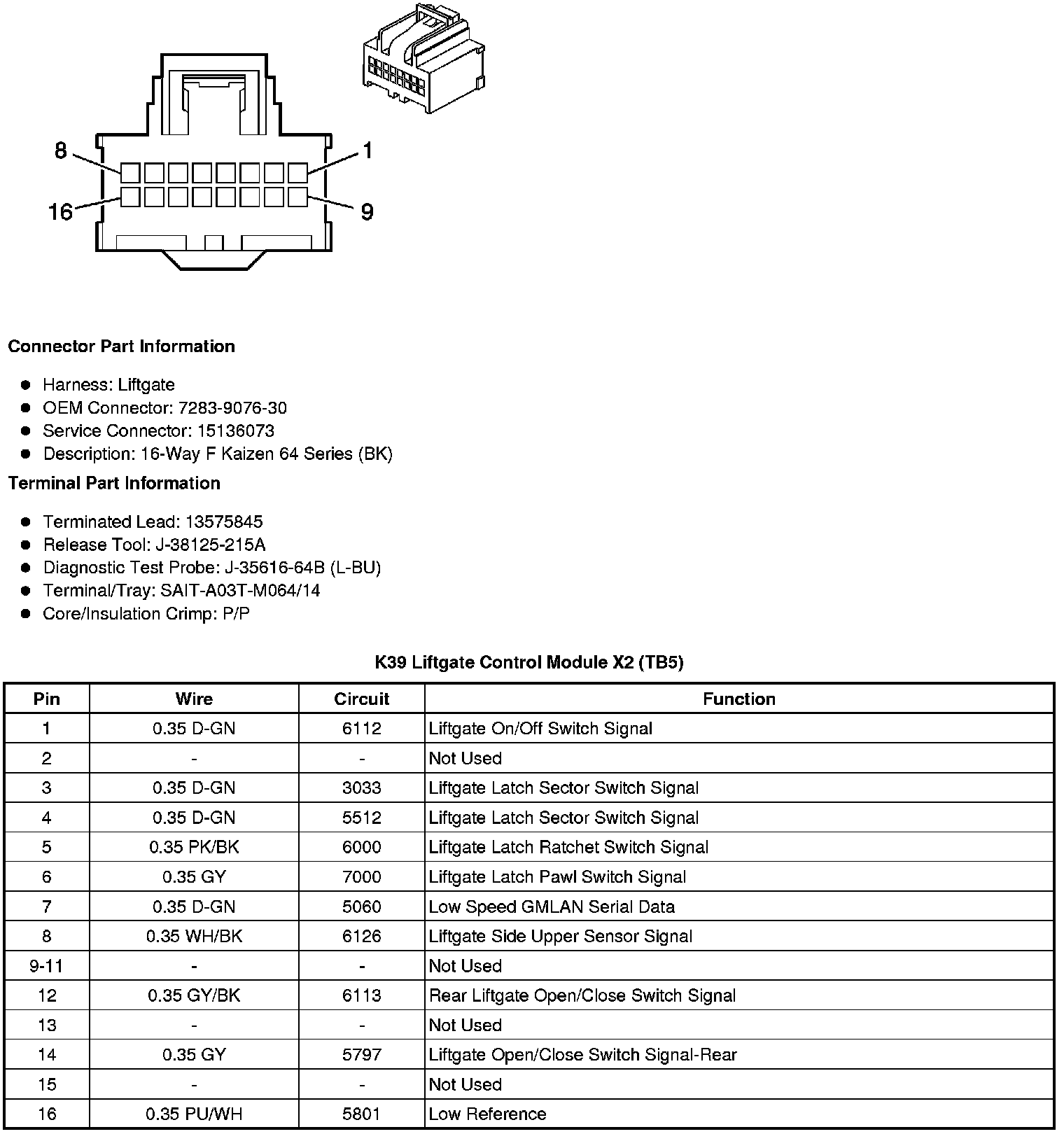

K39 Liftgate Control Module X2 (TB5)

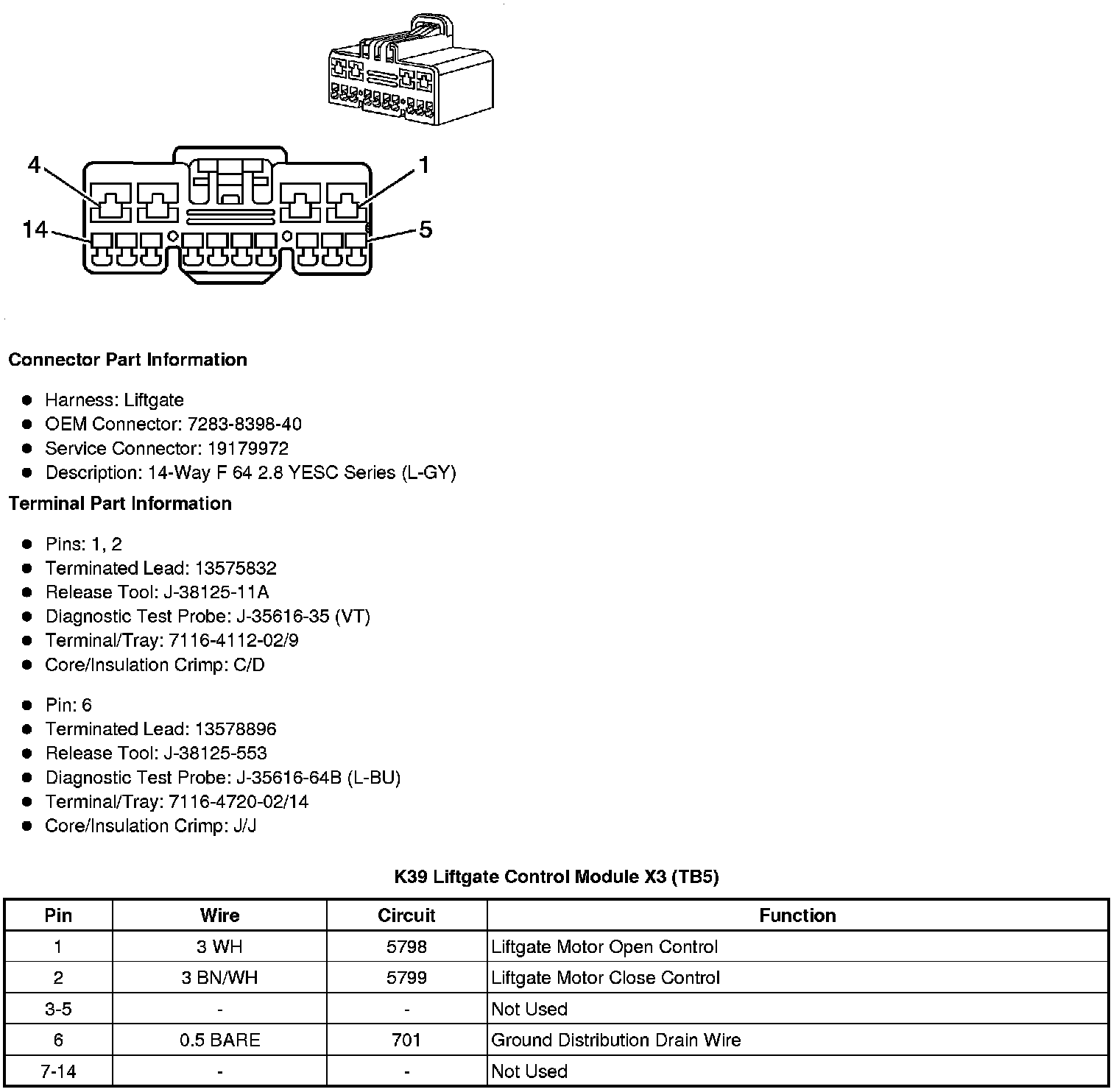

K39 Liftgate Control Module X3 (TB5)
