Memory Positioning Switch
Memory Positioning Switch
Component Connector End Views

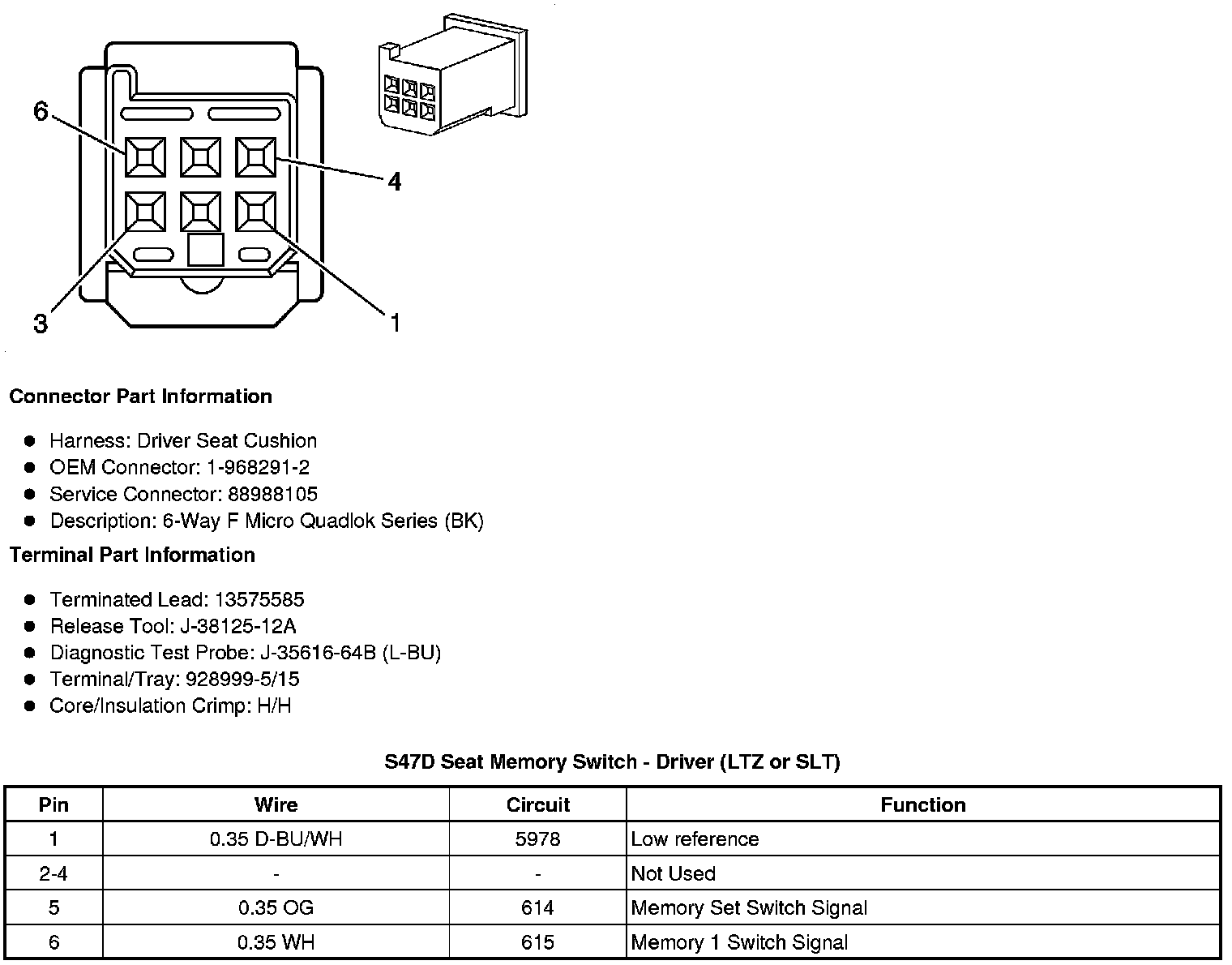

S47D Seat Memory Switch - Driver (LTZ or SLT)
