Fuel Pressure Control Module
Fuel Pressure Control Module

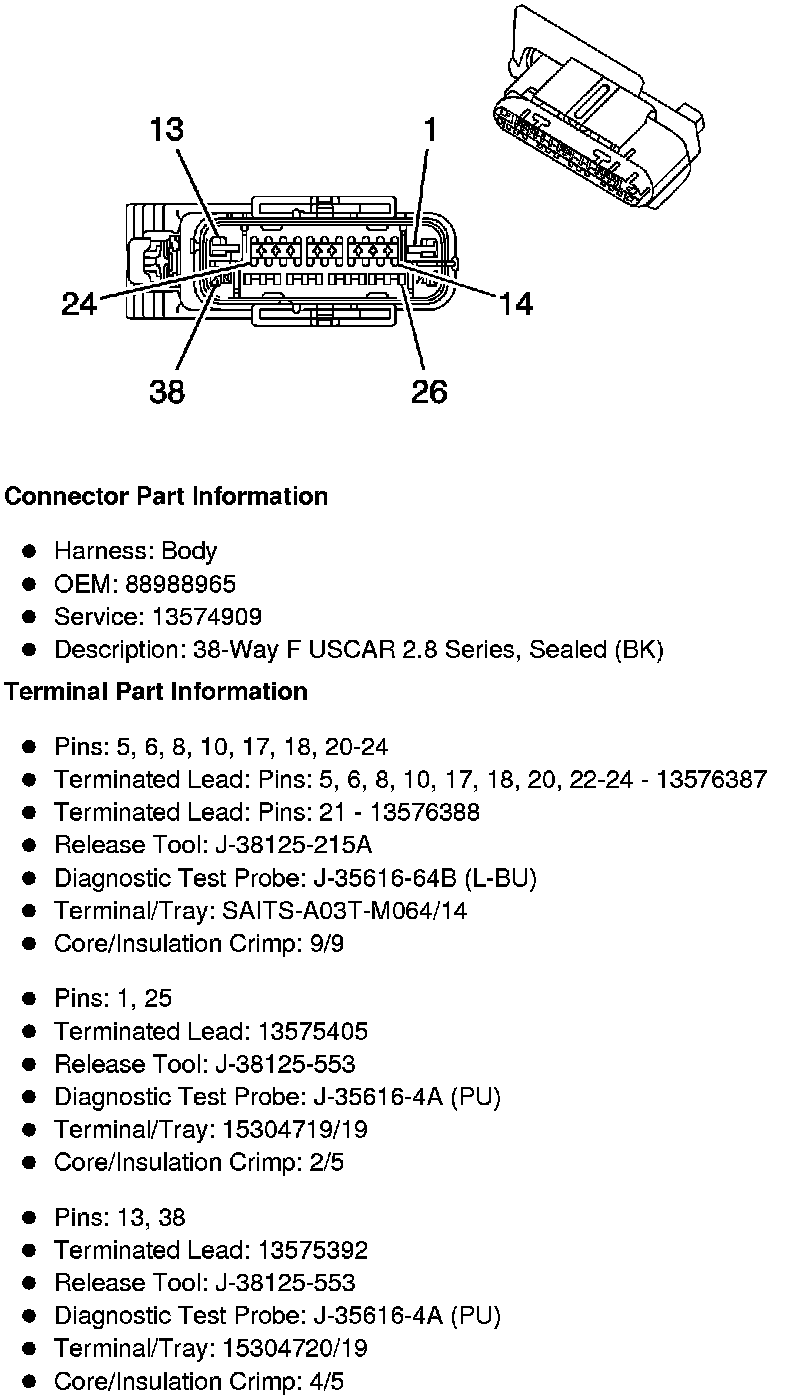

Component Connector End Views

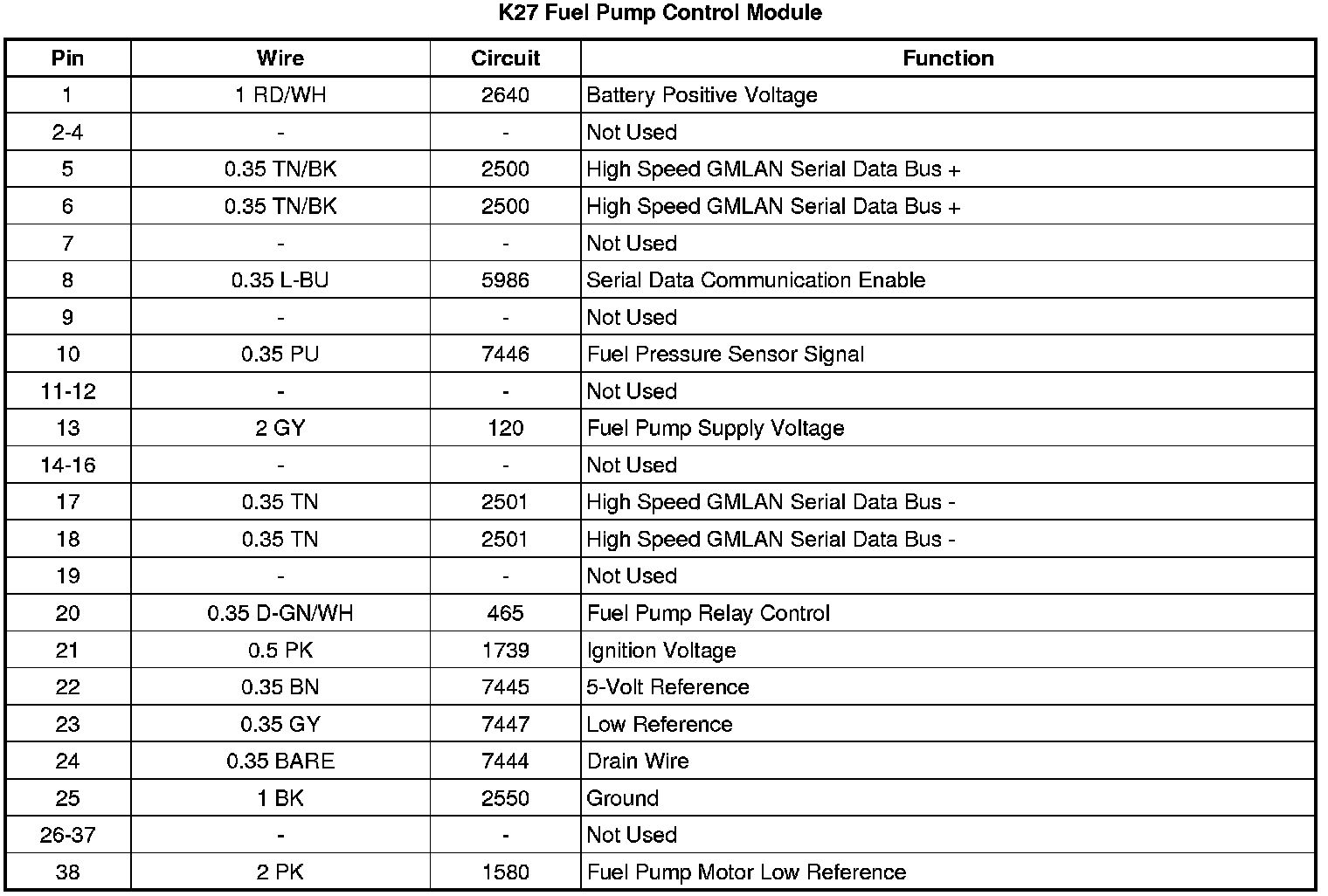

K27 Fuel Pump Control Module
