Automatic Volume Control




Component Connector End Views

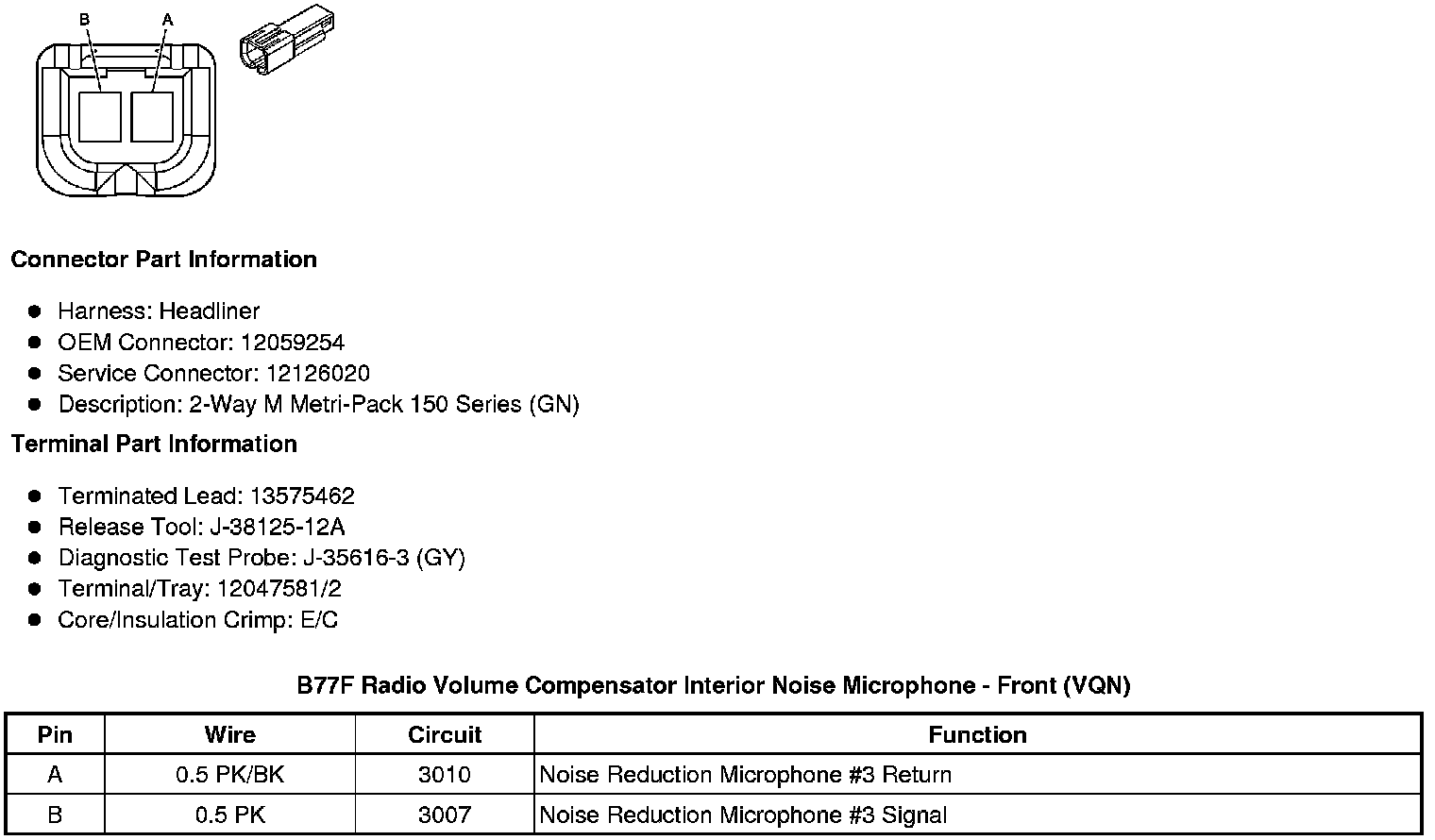

B77F Radio Volume Compensator Interior Noise Microphone - Front (VQN)

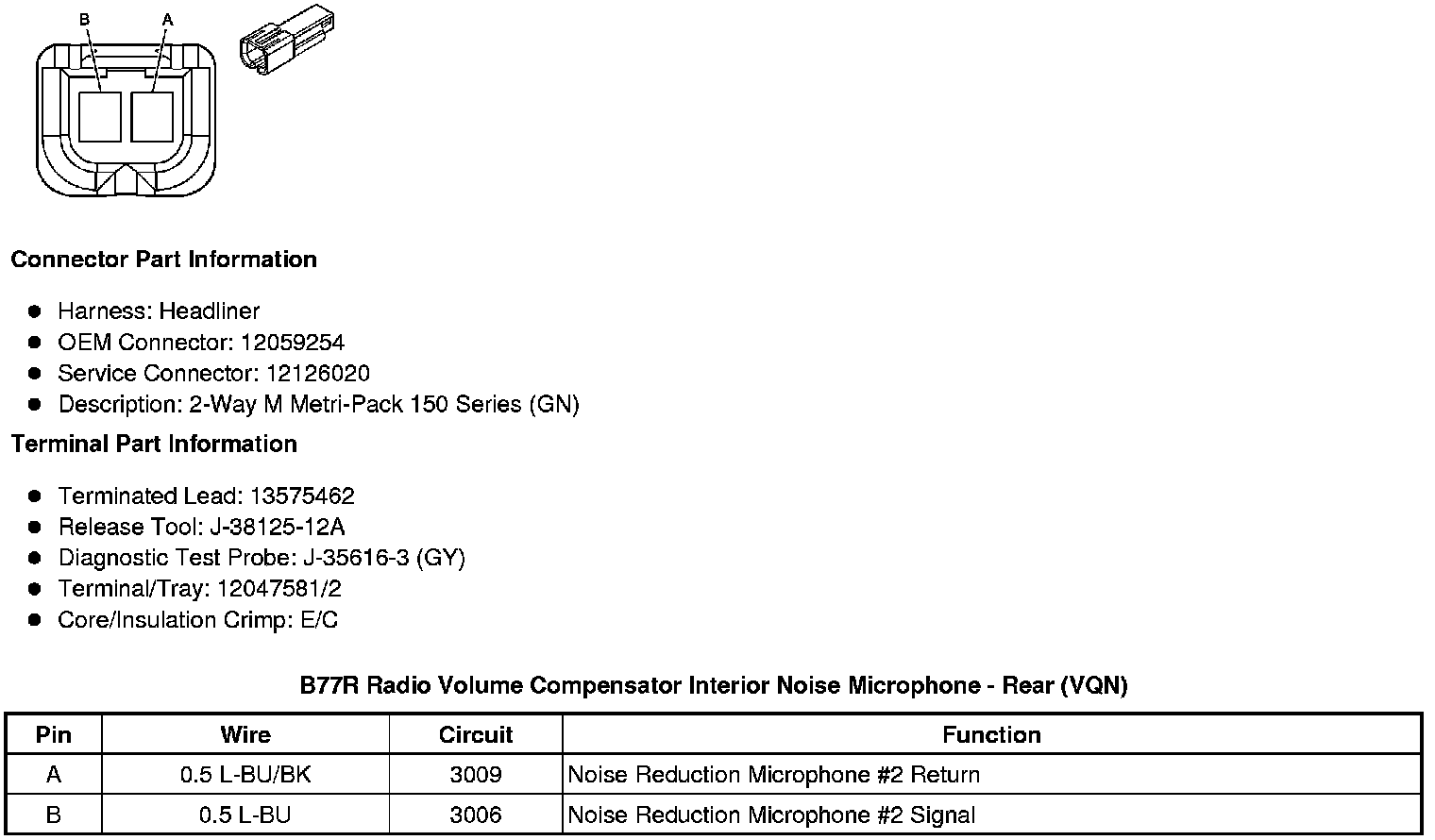

B77R Radio Volume Compensator Interior Noise Microphone - Rear (VQN)
