Home >> GMC >> 2011 >> Canyon 2WD L4-2.9L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Accelerator Pedal Position Sensor >> Diagrams

Accelerator Pedal Position Sensor: Diagrams

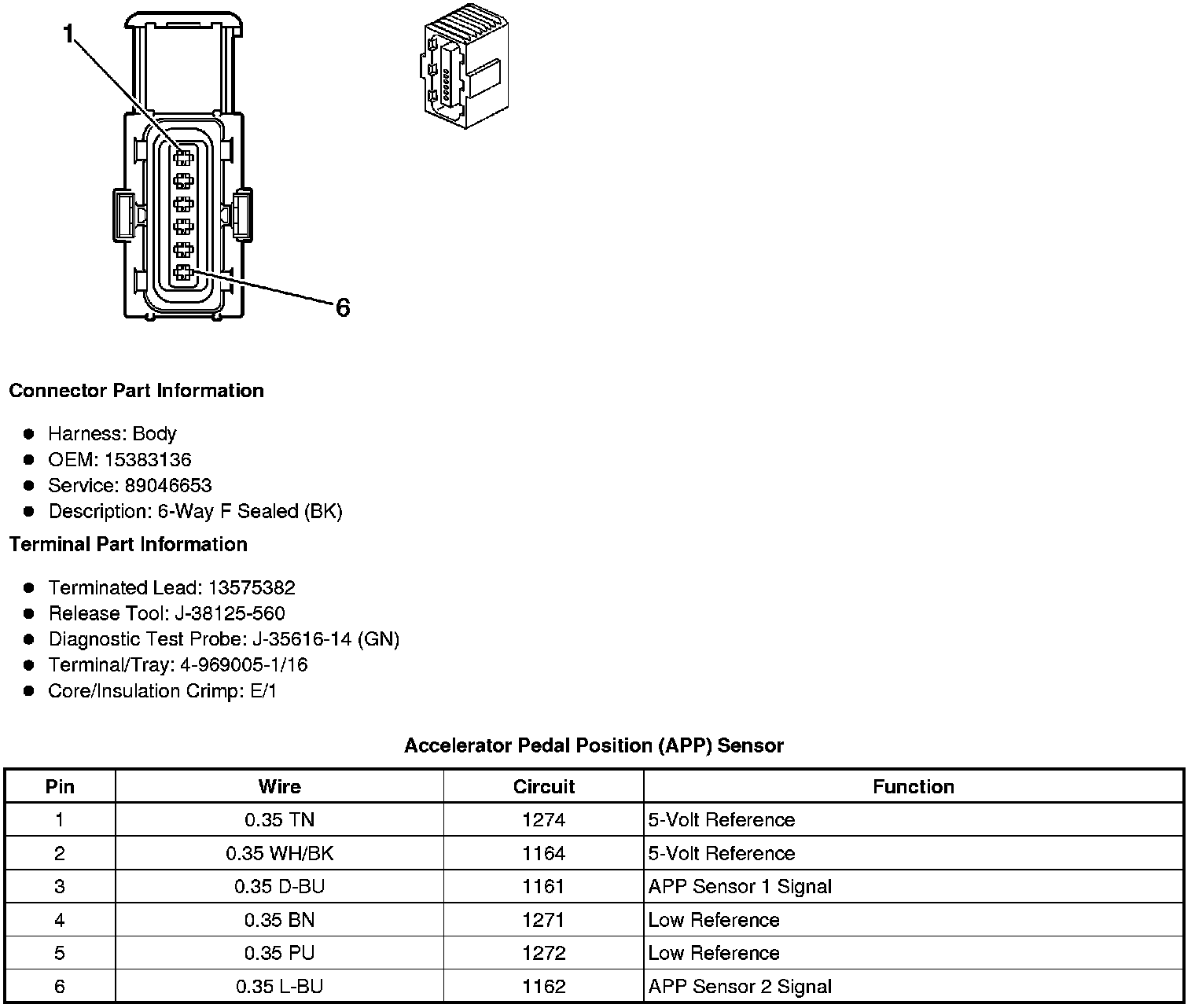

Component Connector End Views

Accelerator Pedal Position (APP) Sensor
