Power Trunk / Liftgate Control Module




Component Connector End Views

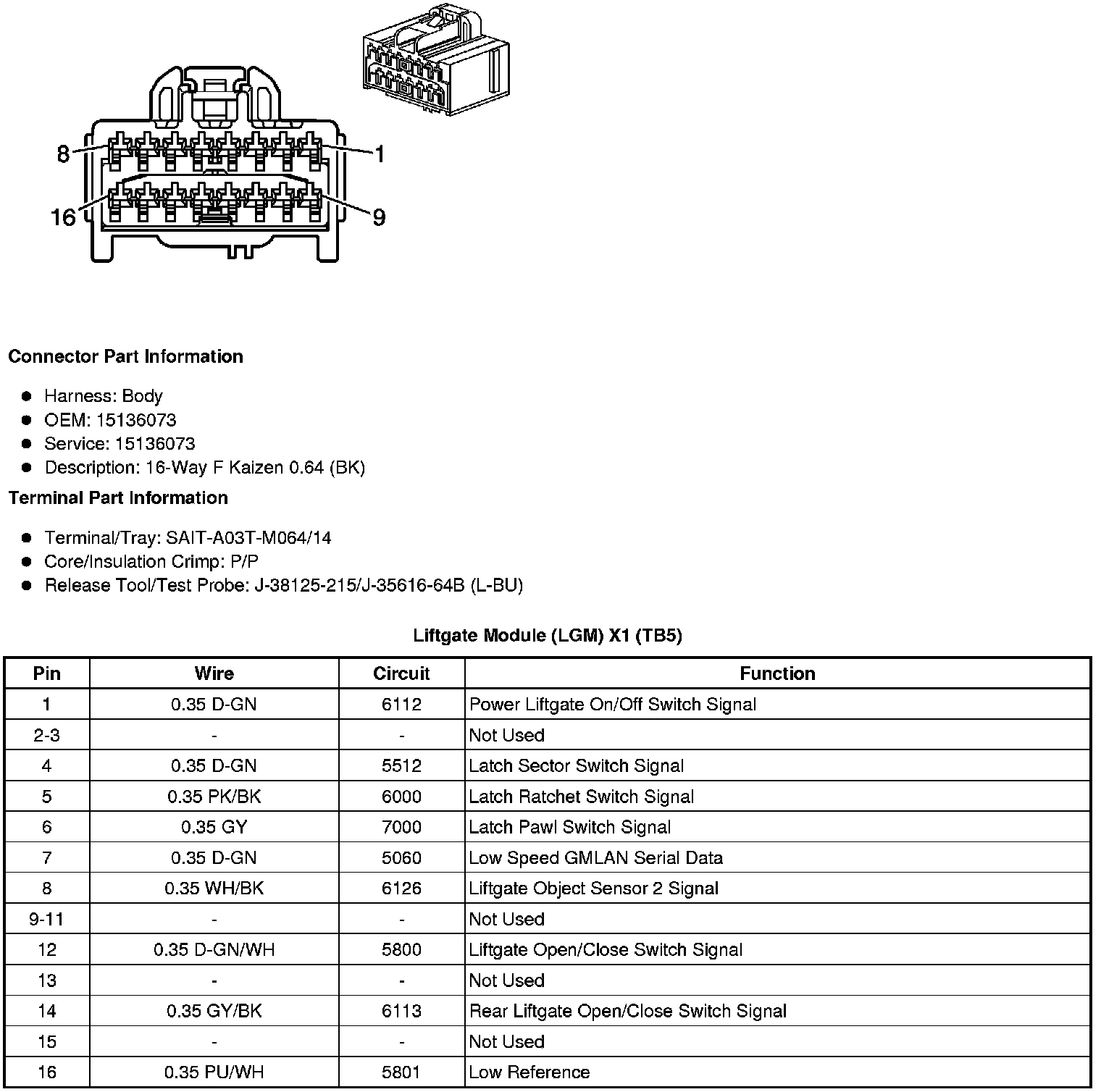

Liftgate Module (LGM) X1 (TB5)

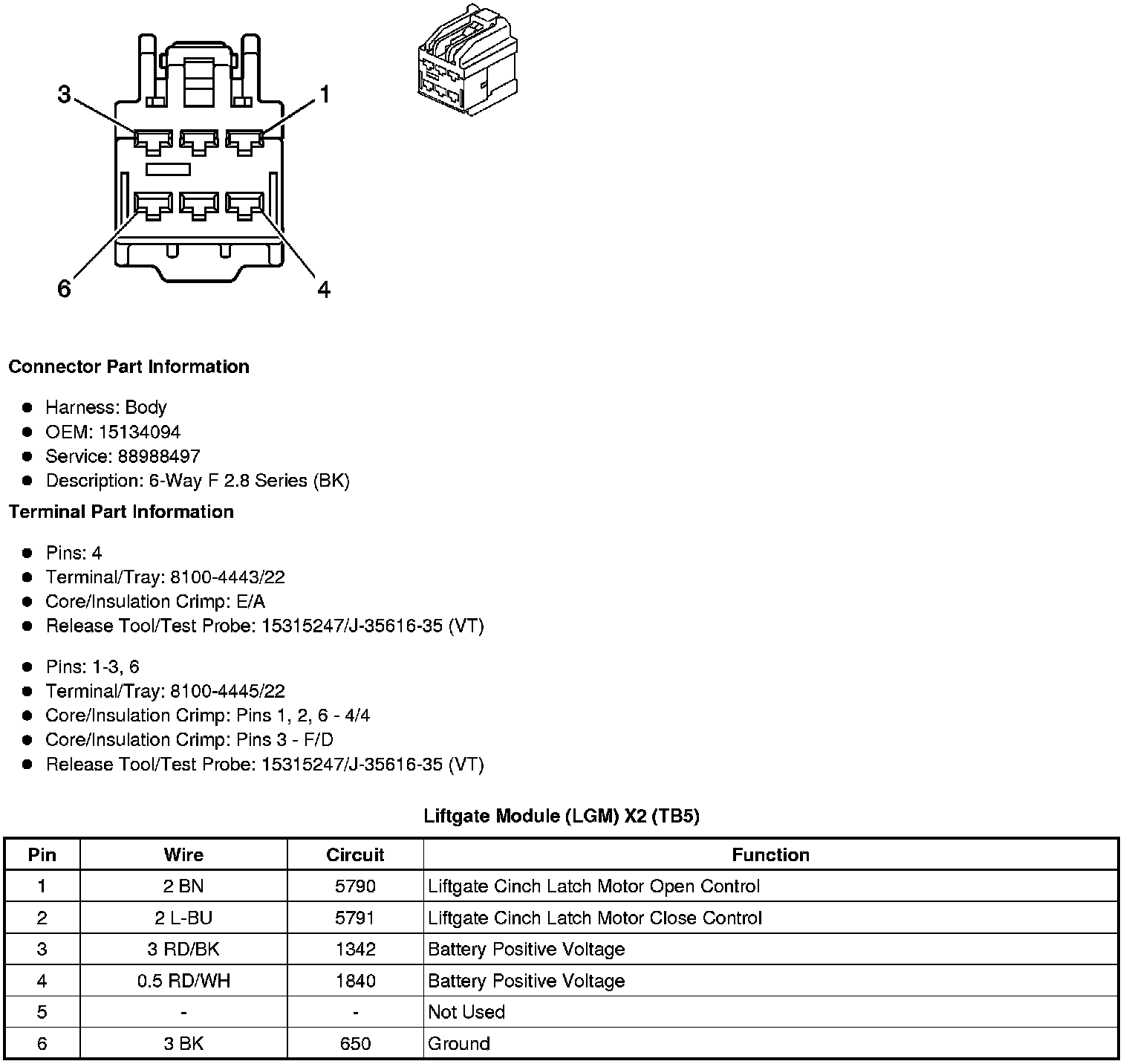

Liftgate Module (LGM) X2 (TB5)

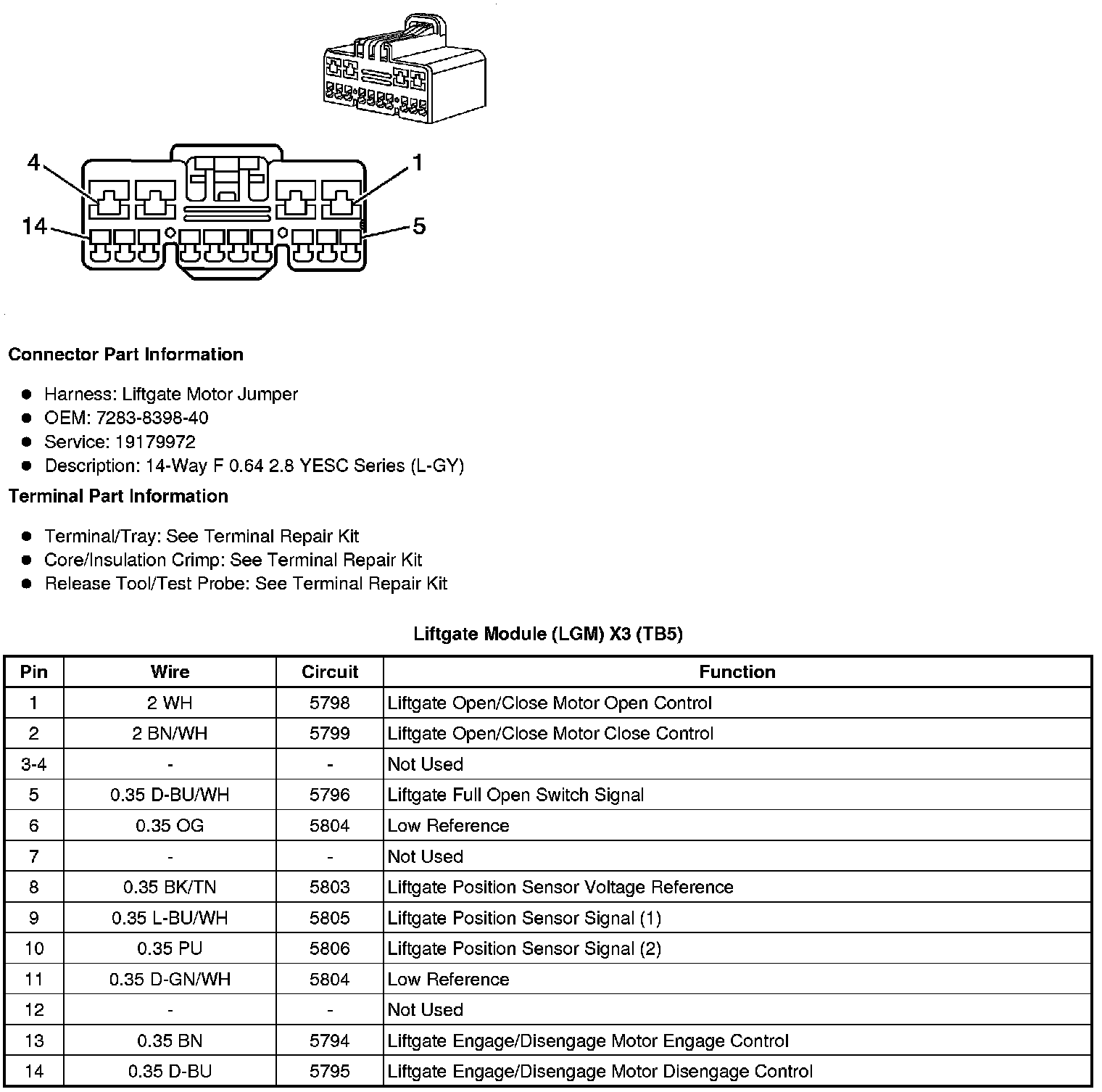

Liftgate Module (LGM) X3 (TB5)
