Control Module




Component Connector End Views

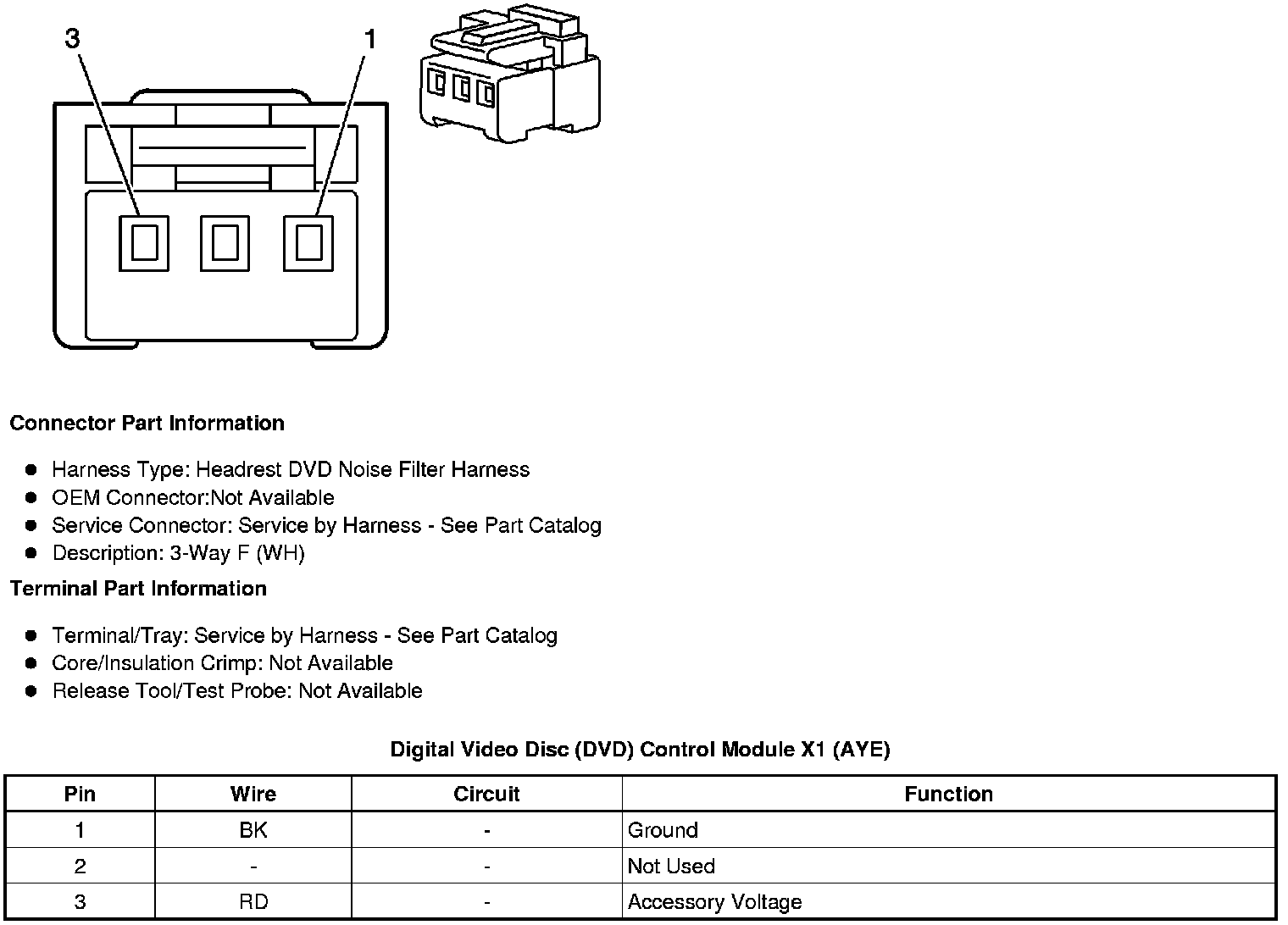

Digital Video Disc (DVD) Control Module X1 (AYE)





Digital Video Disc (DVD) Control Module X2 (AYE)

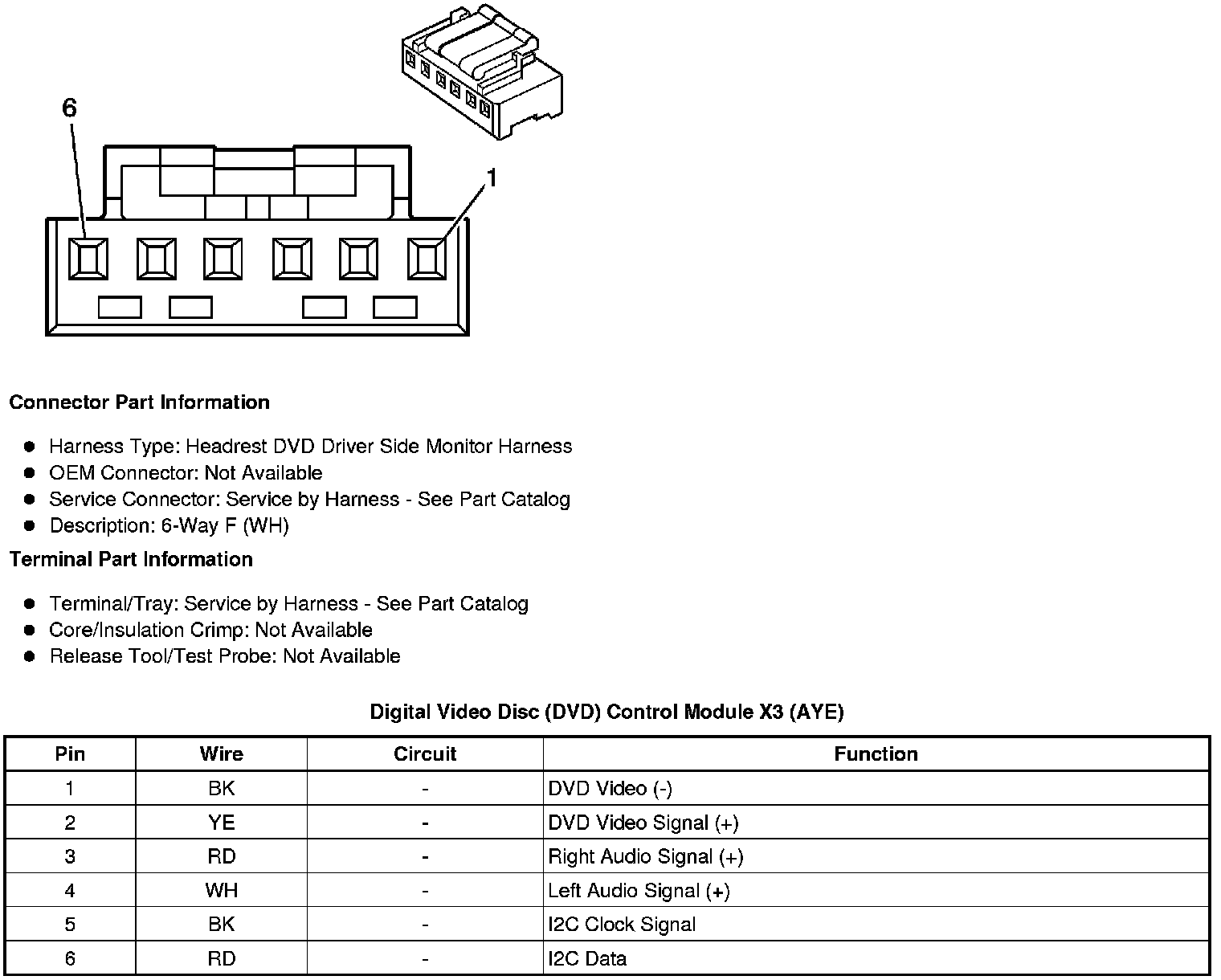

Digital Video Disc (DVD) Control Module X3 (AYE)

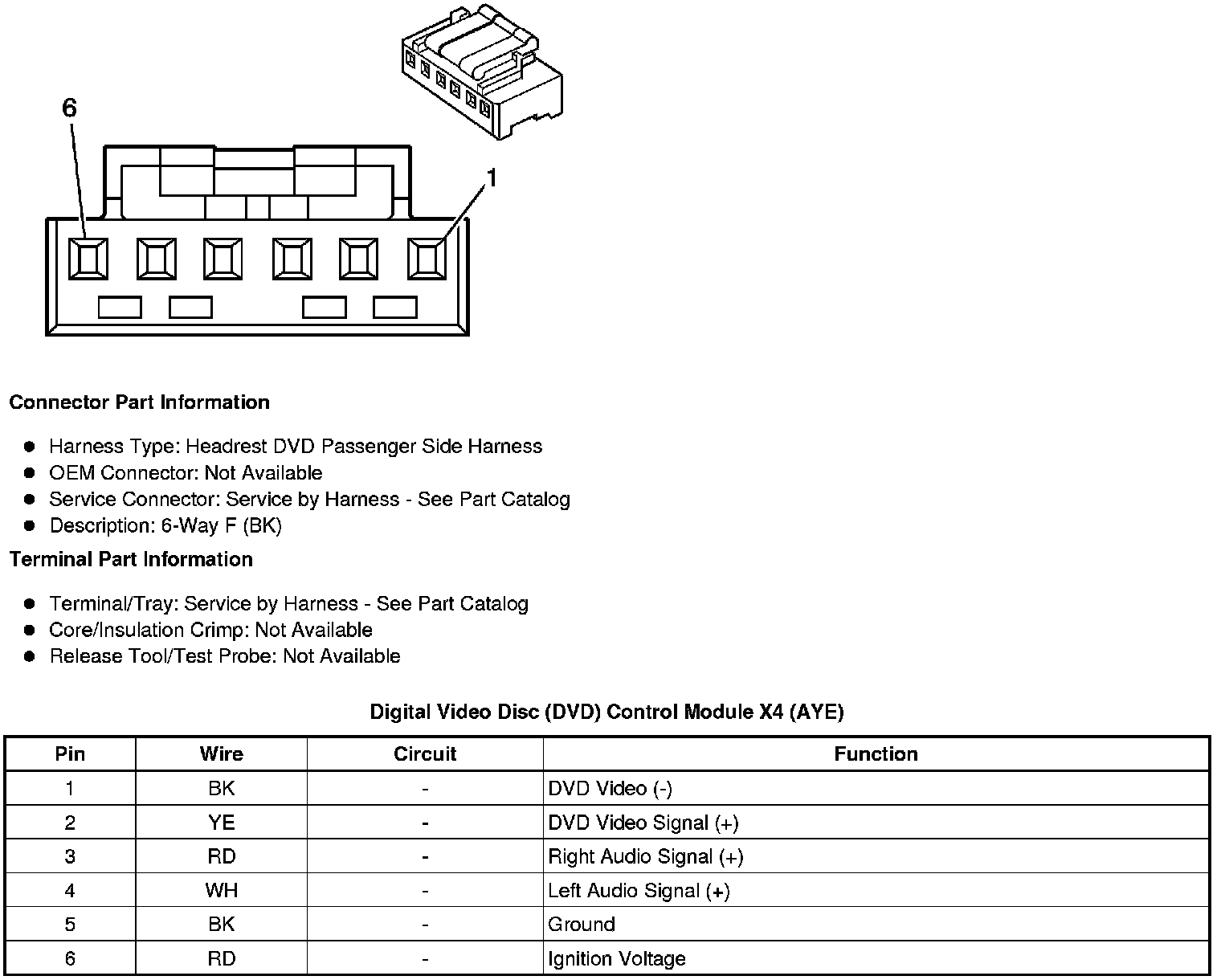

Digital Video Disc (DVD) Control Module X4 (AYE)

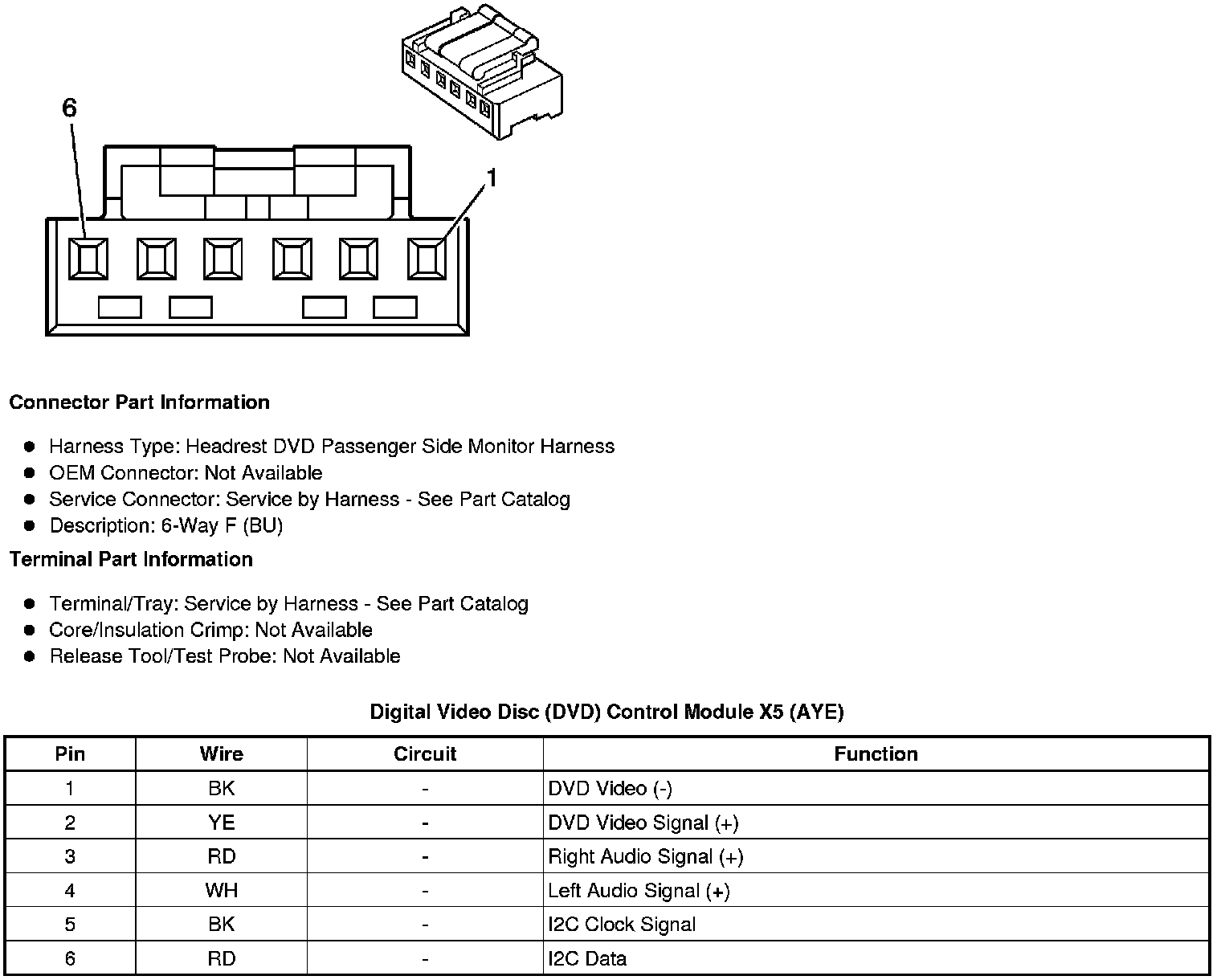

Digital Video Disc (DVD) Control Module X5 (AYE)

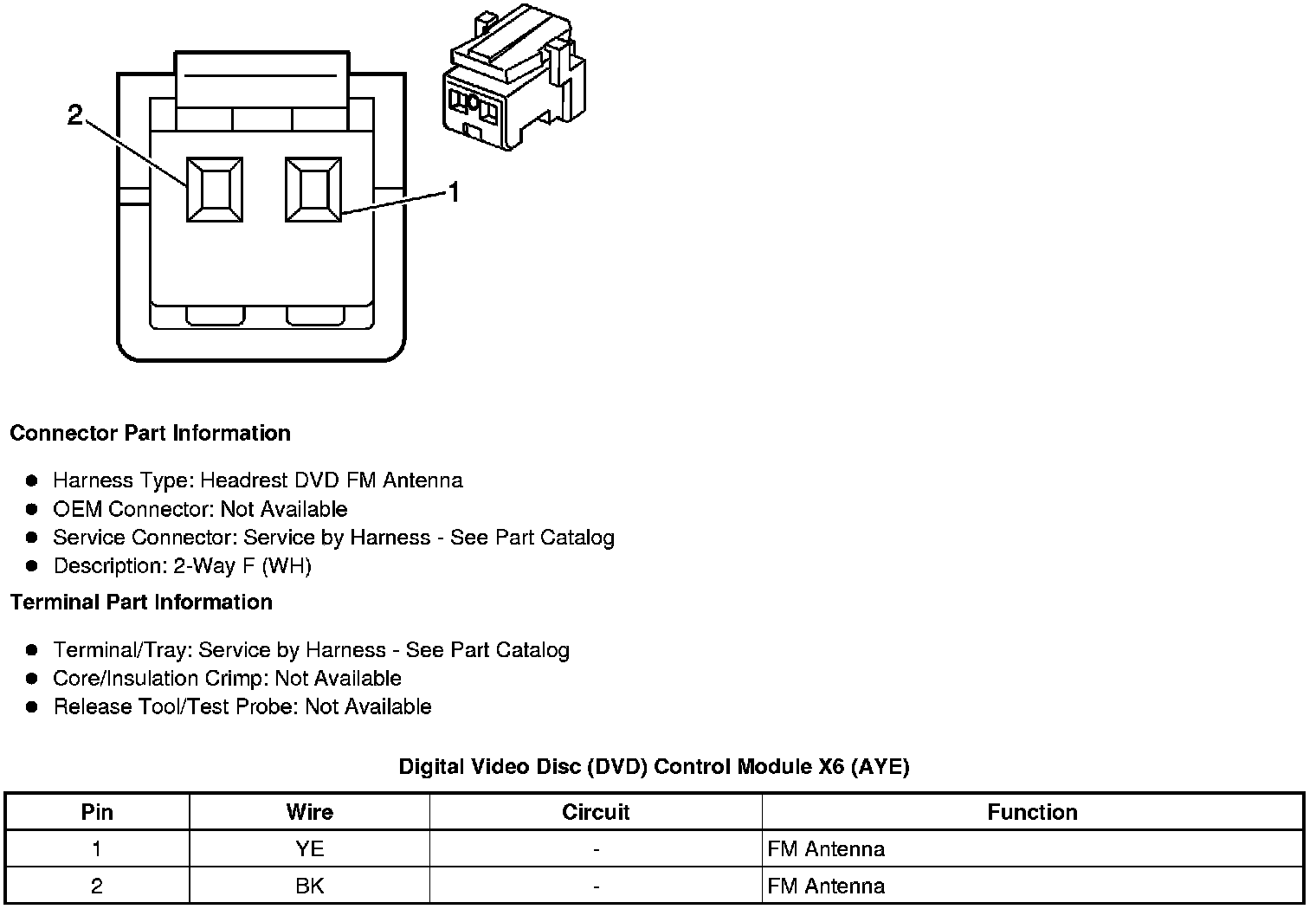

Digital Video Disc (DVD) Control Module X6 (AYE)
