Control Module, A/T
Control Module, A/T

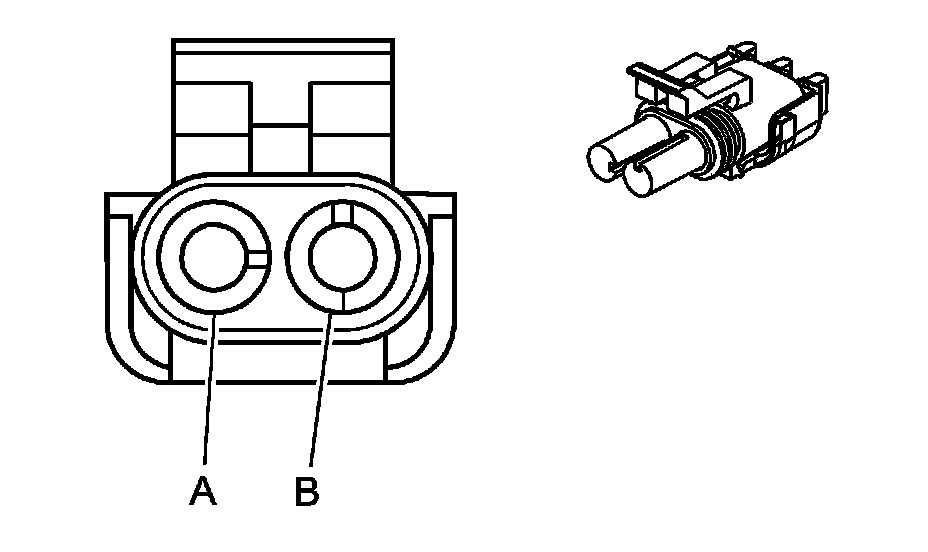

Component Connector End Views

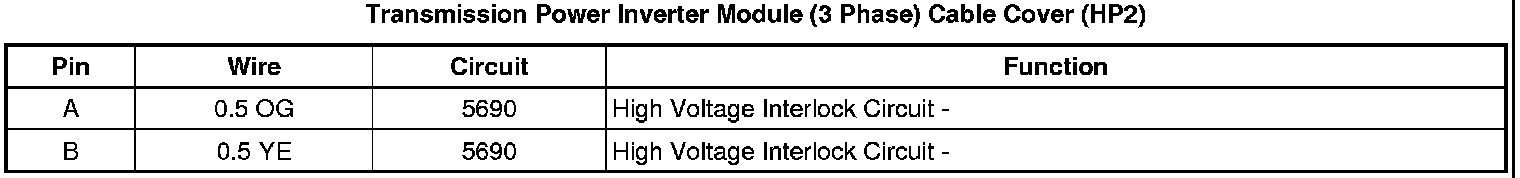

Transmission Power Inverter Module (3 Phase) Cable Cover (HP2)
