Knock Sensor: Diagrams

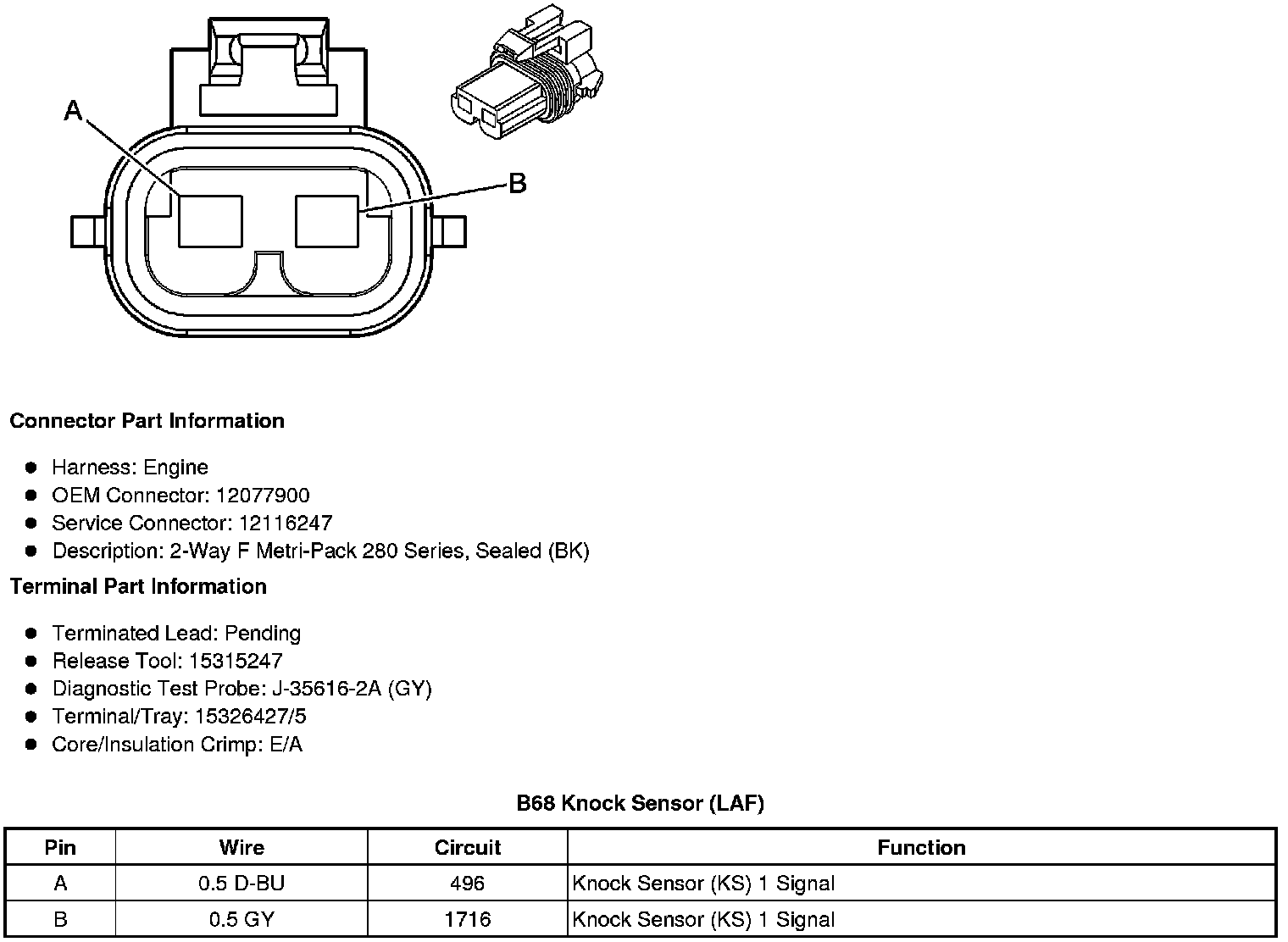

B68 Knock Sensor (LAF)





B68A Knock Sensor 1 (LF1)

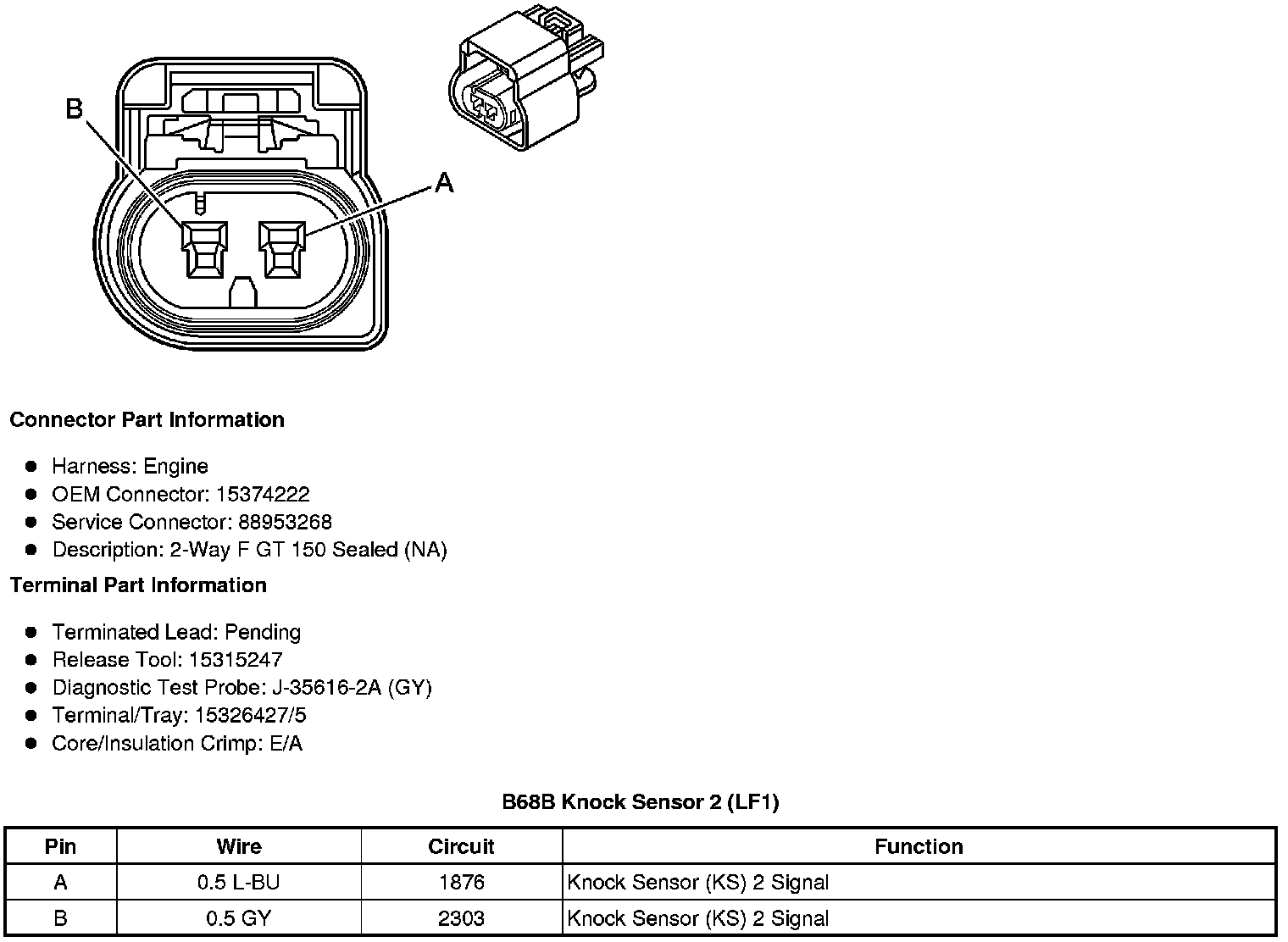

B68B Knock Sensor 2 (LF1)
