Home >> GMC >> 2010 >> Terrain FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module

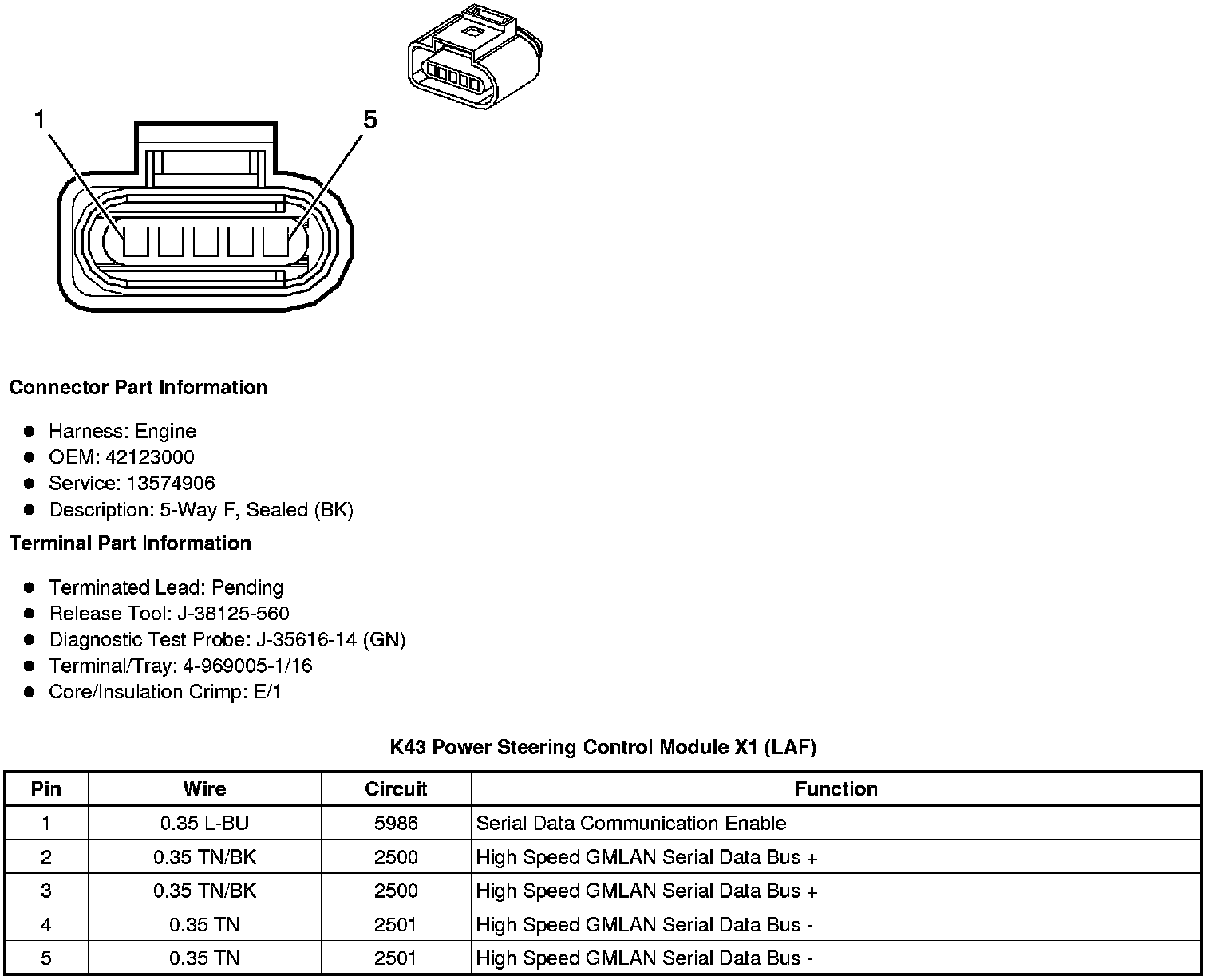

K43 Power Steering Control Module X1 (LAF)

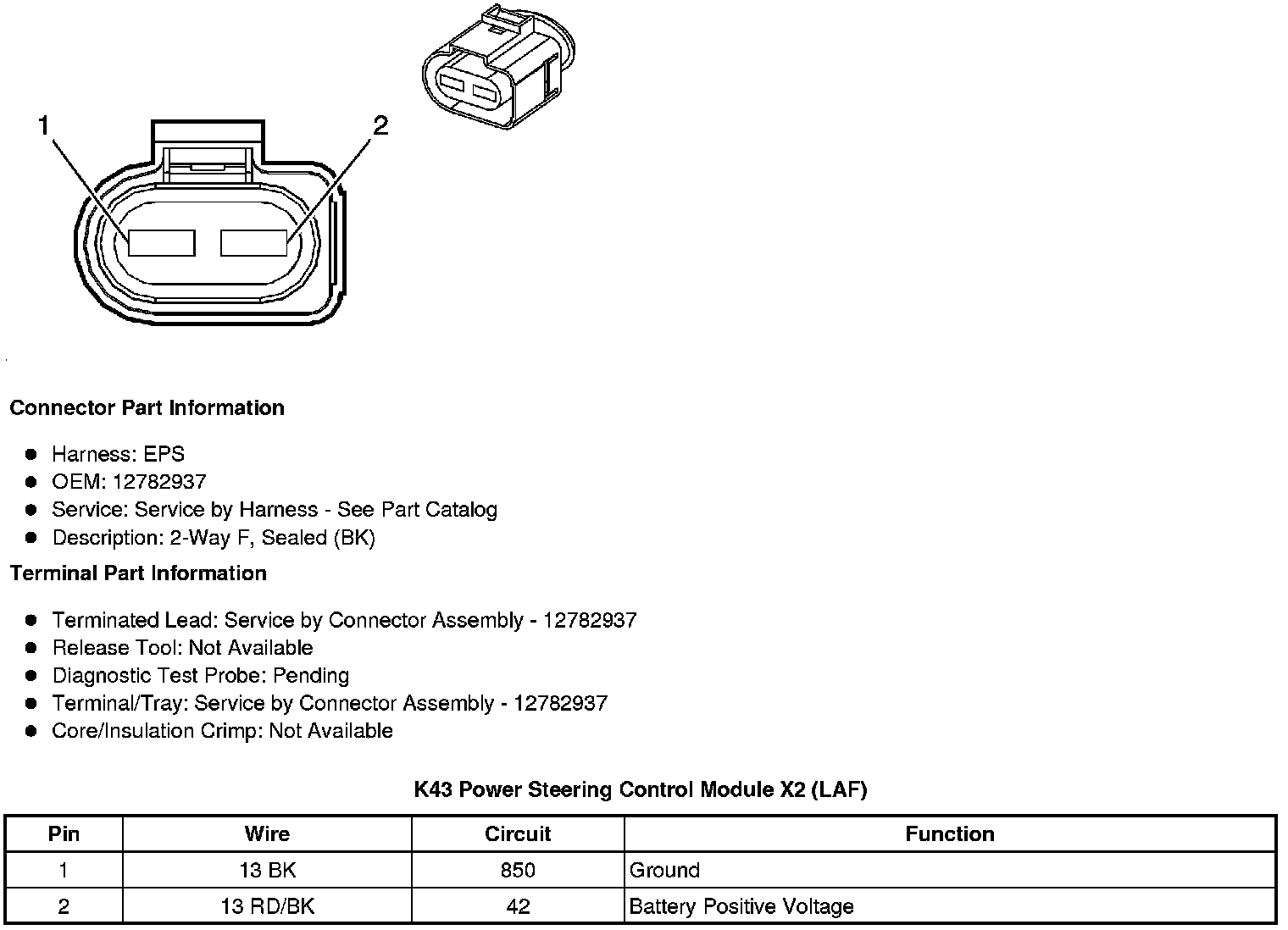

K43 Power Steering Control Module X2 (LAF)

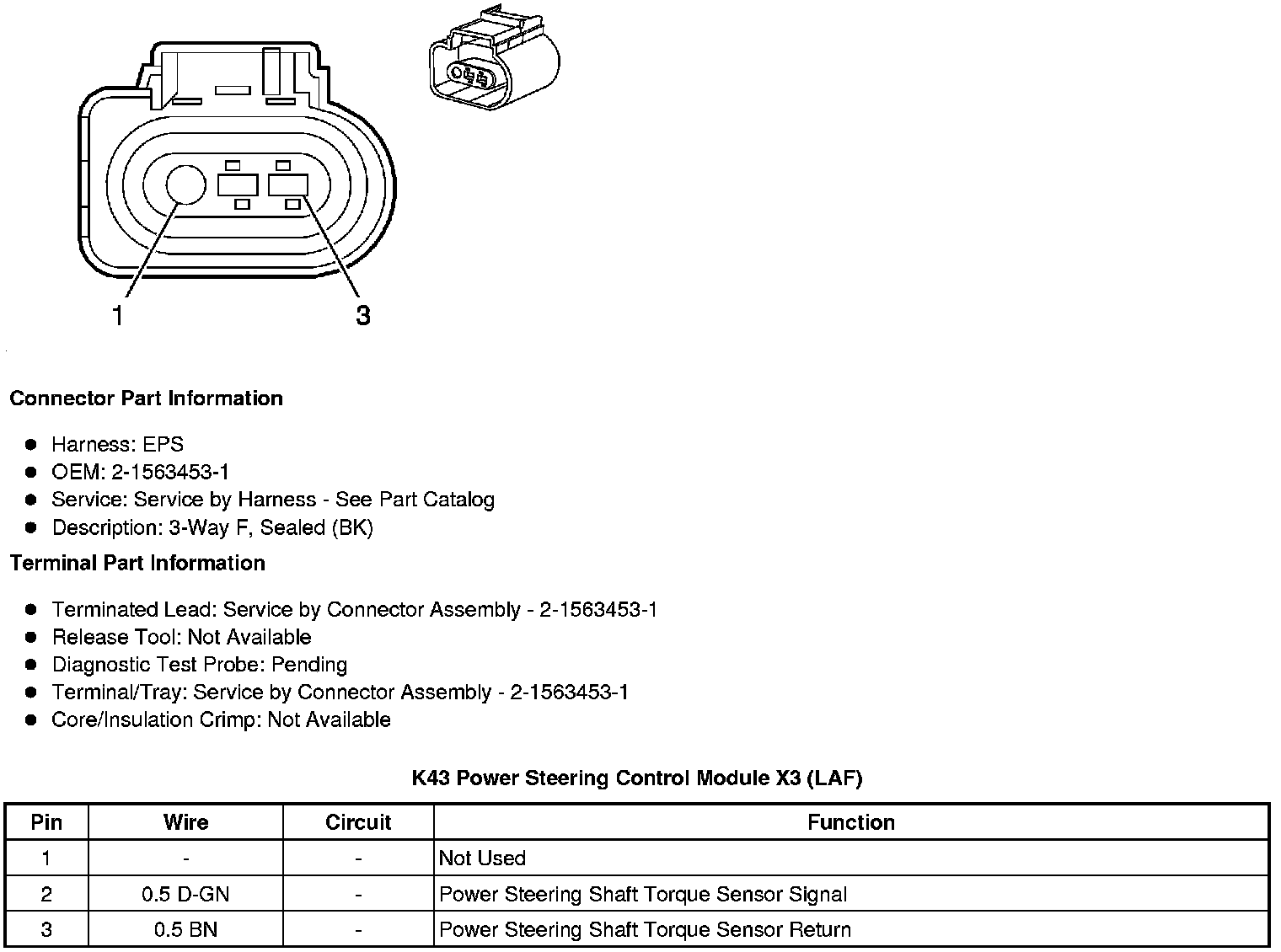

K43 Power Steering Control Module X3 (LAF)
