Engine Control Module

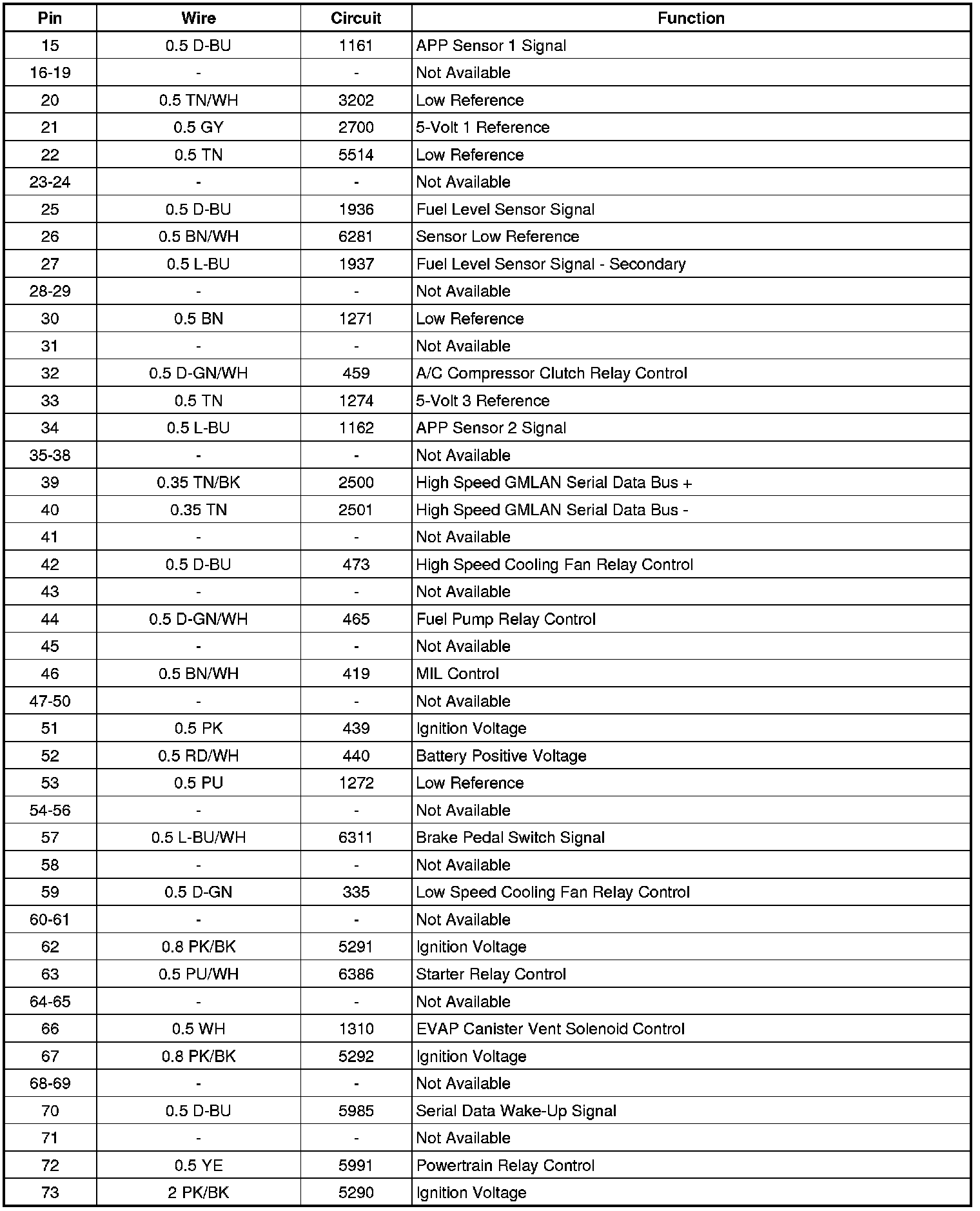

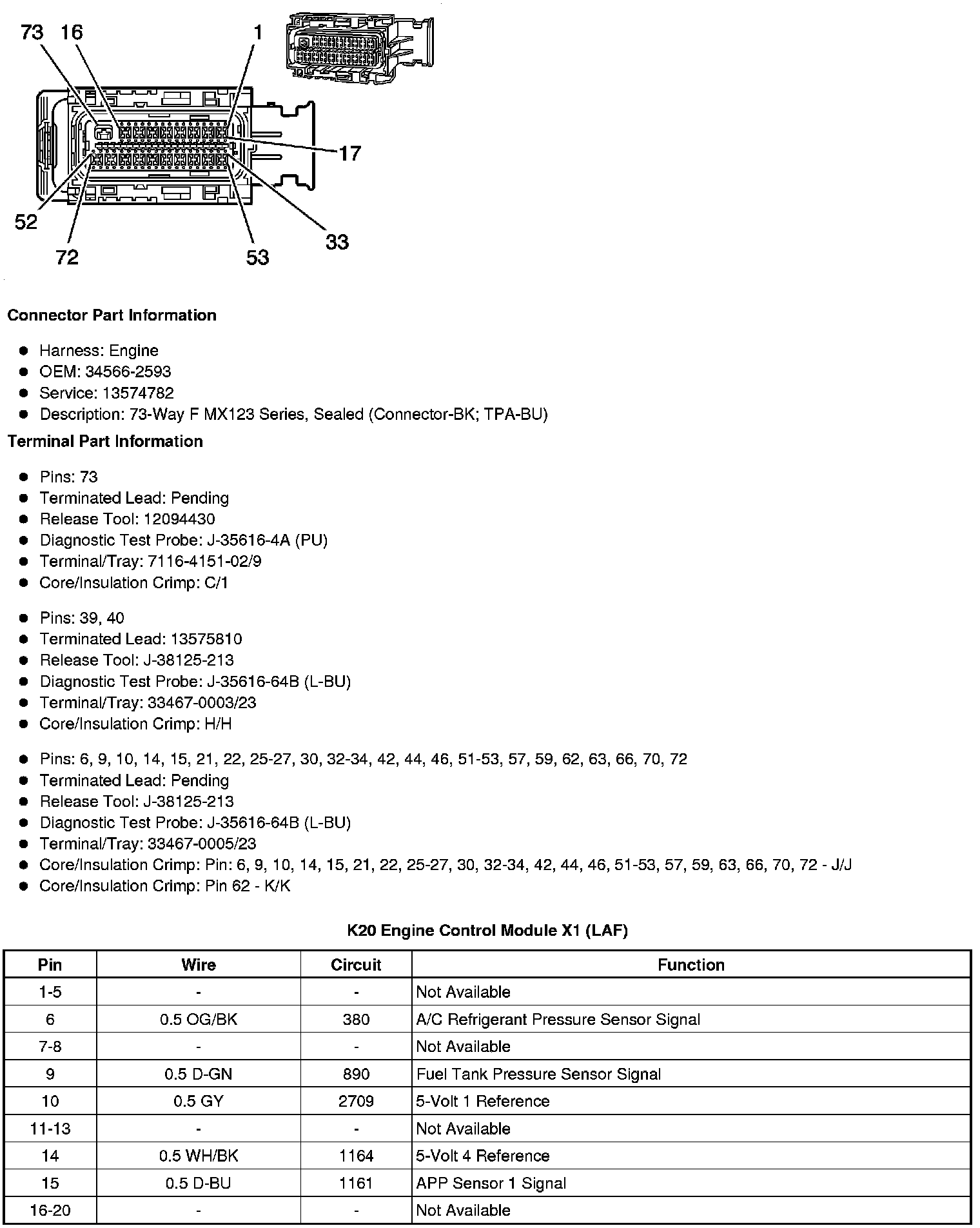

K20 Engine Control Module X1 (LAF)

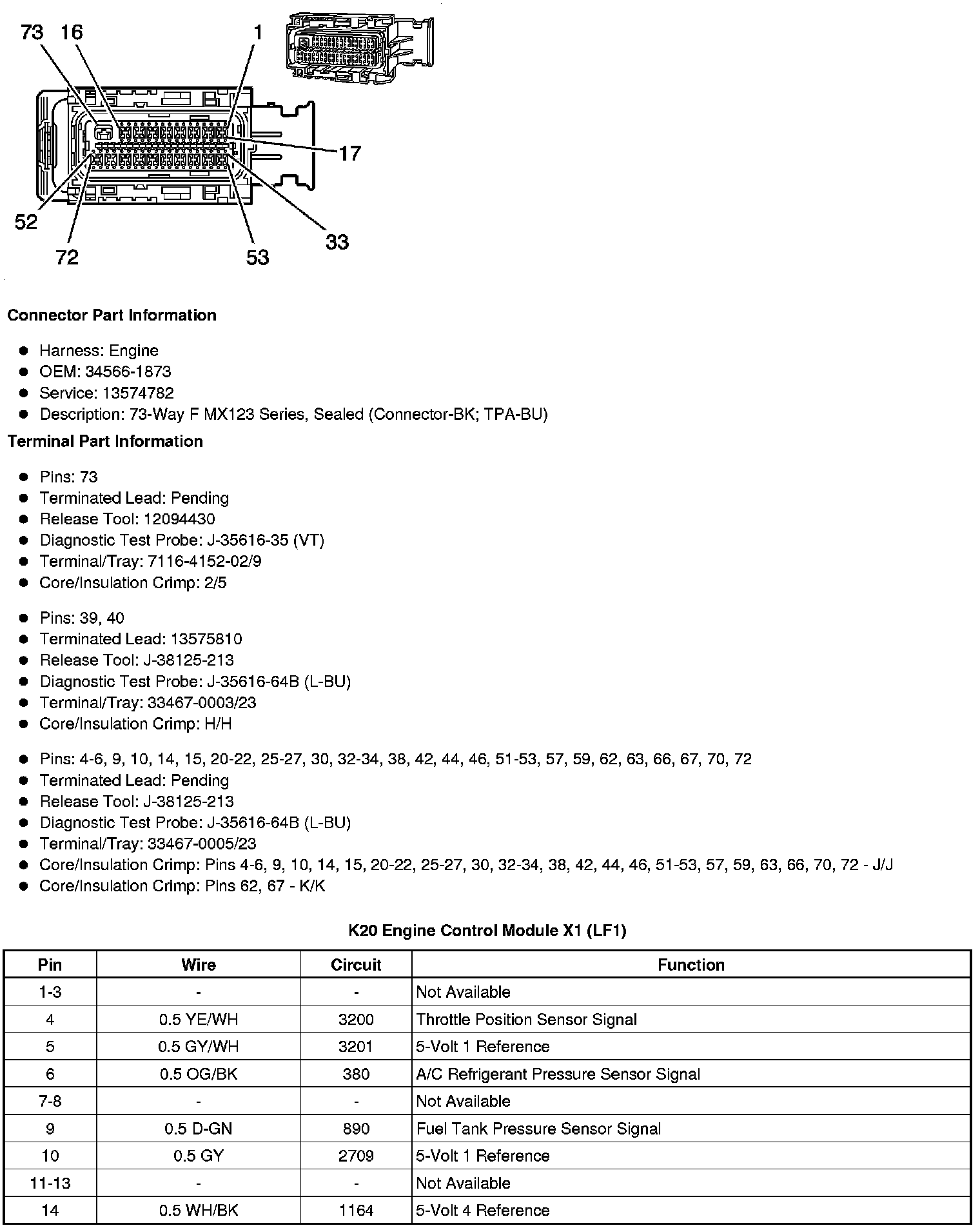

K20 Engine Control Module X1 (LF1)

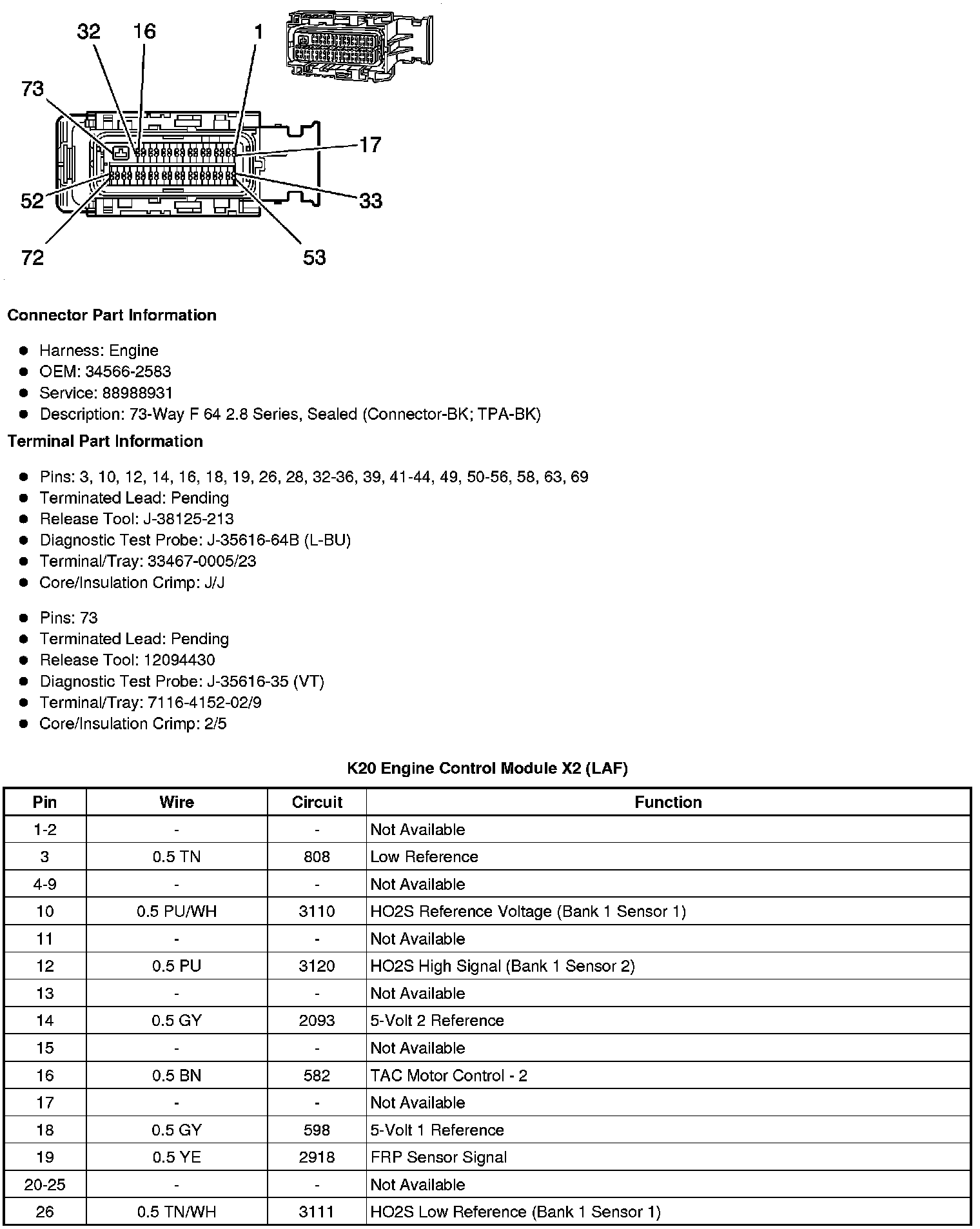

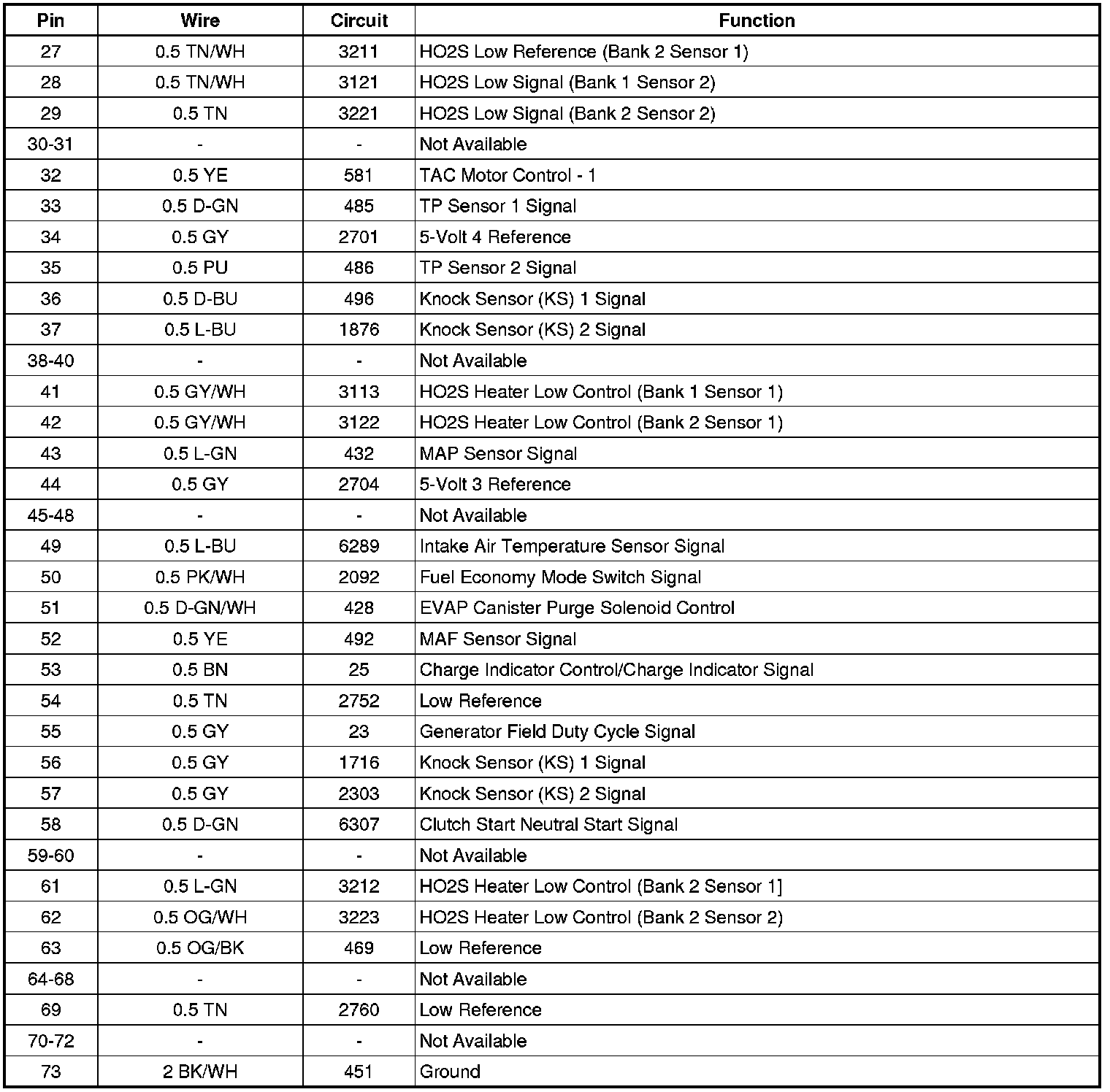

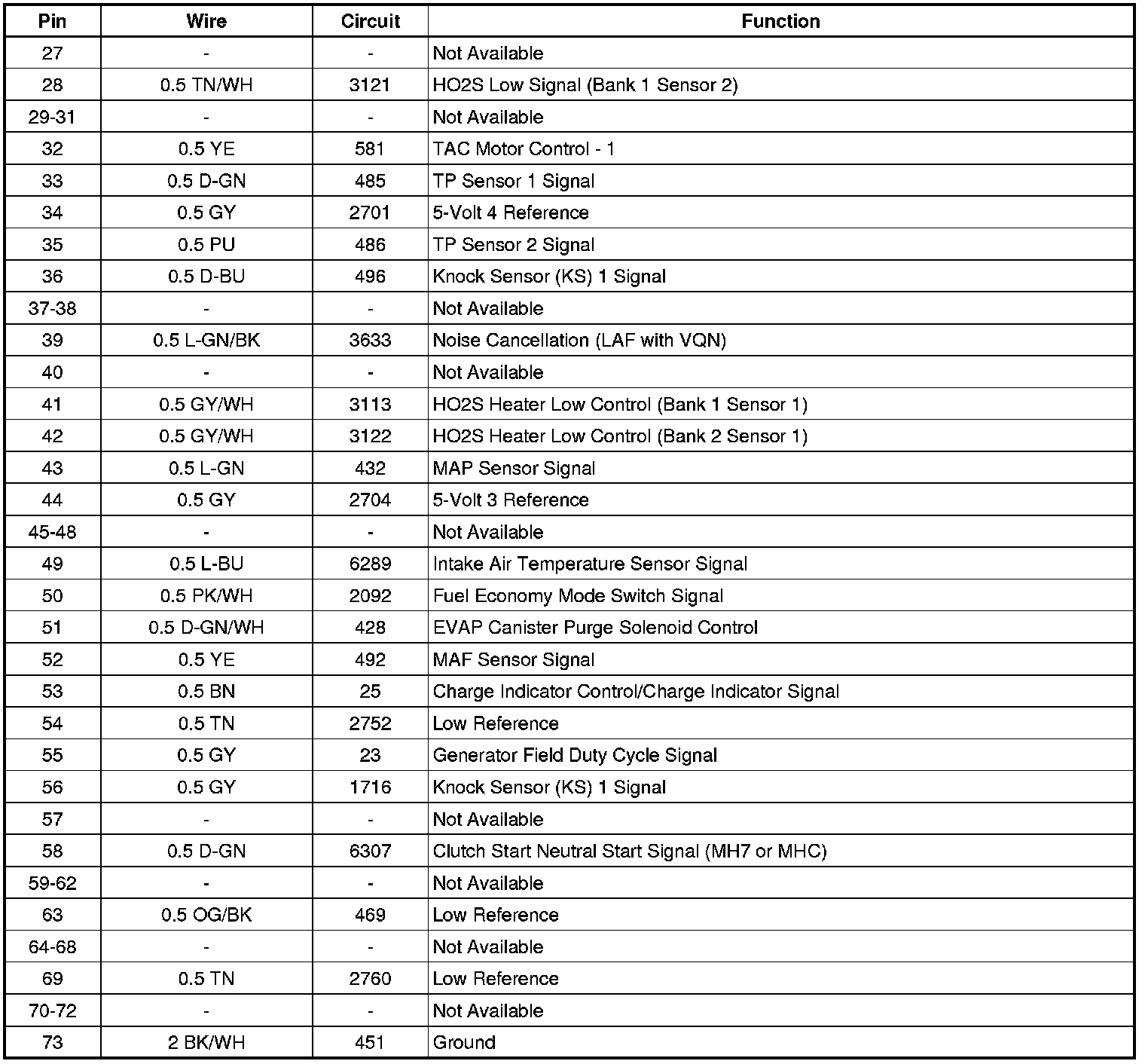

K20 Engine Control Module X2 (LAF)

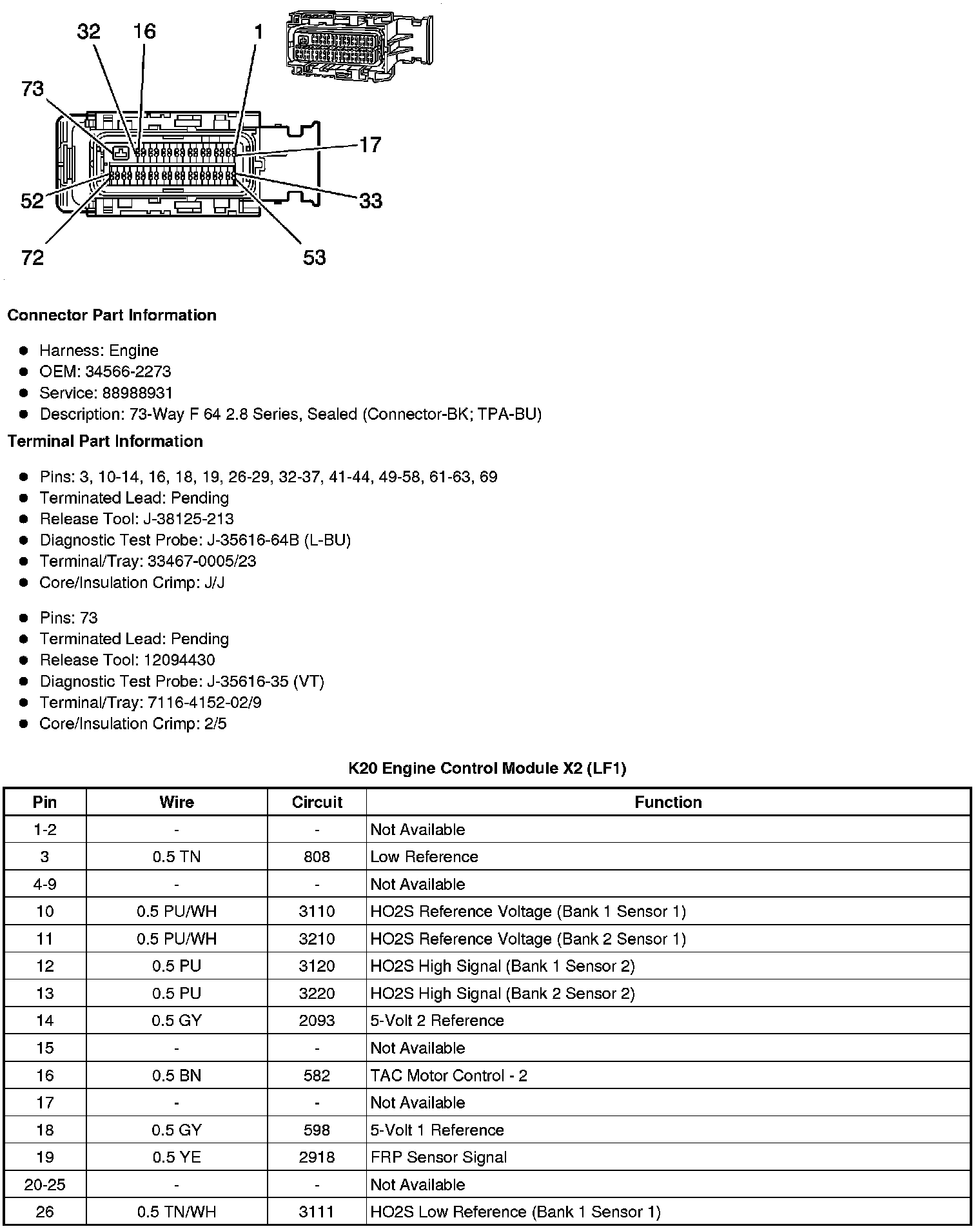

K20 Engine Control Module X2 (LF1)

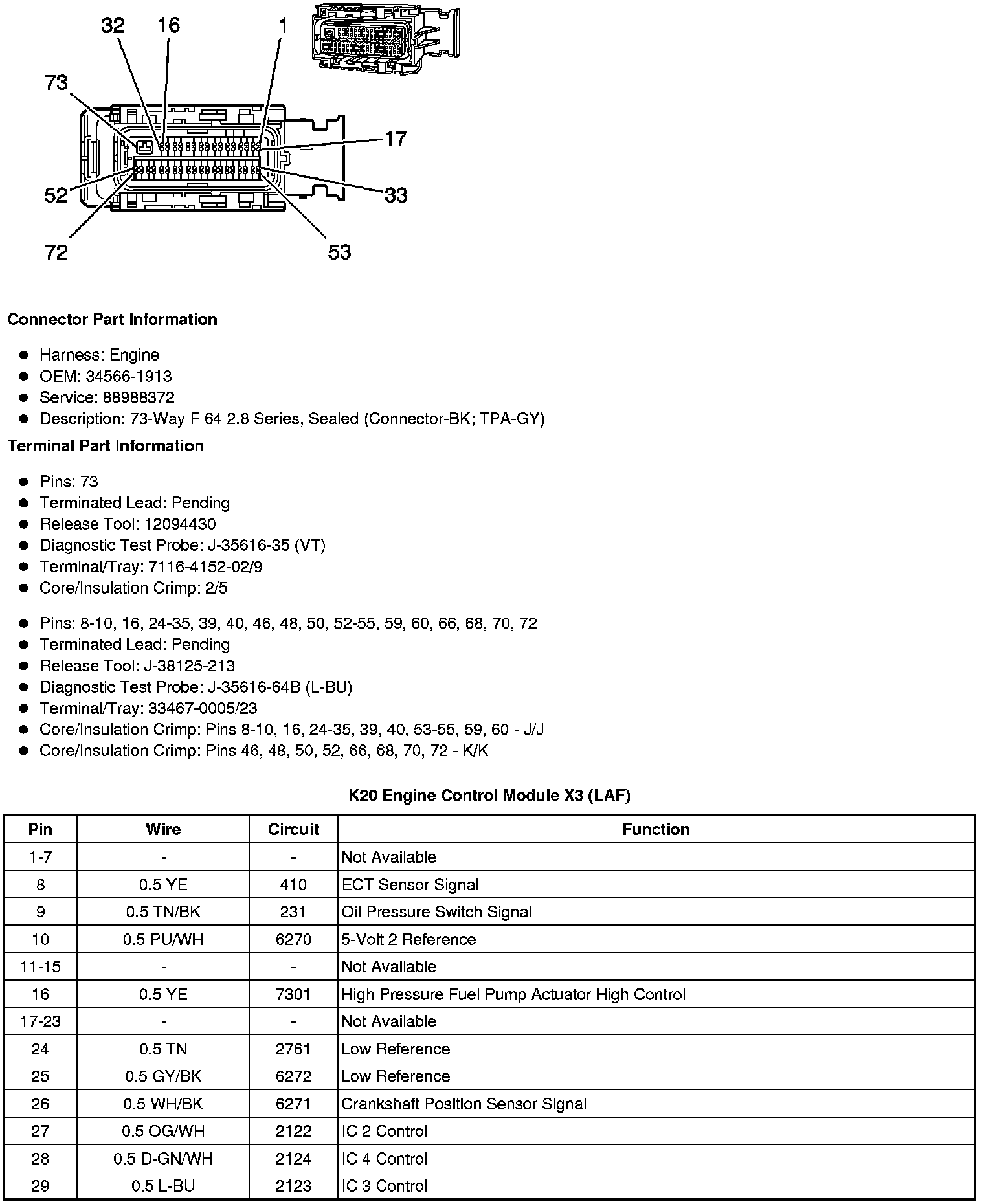

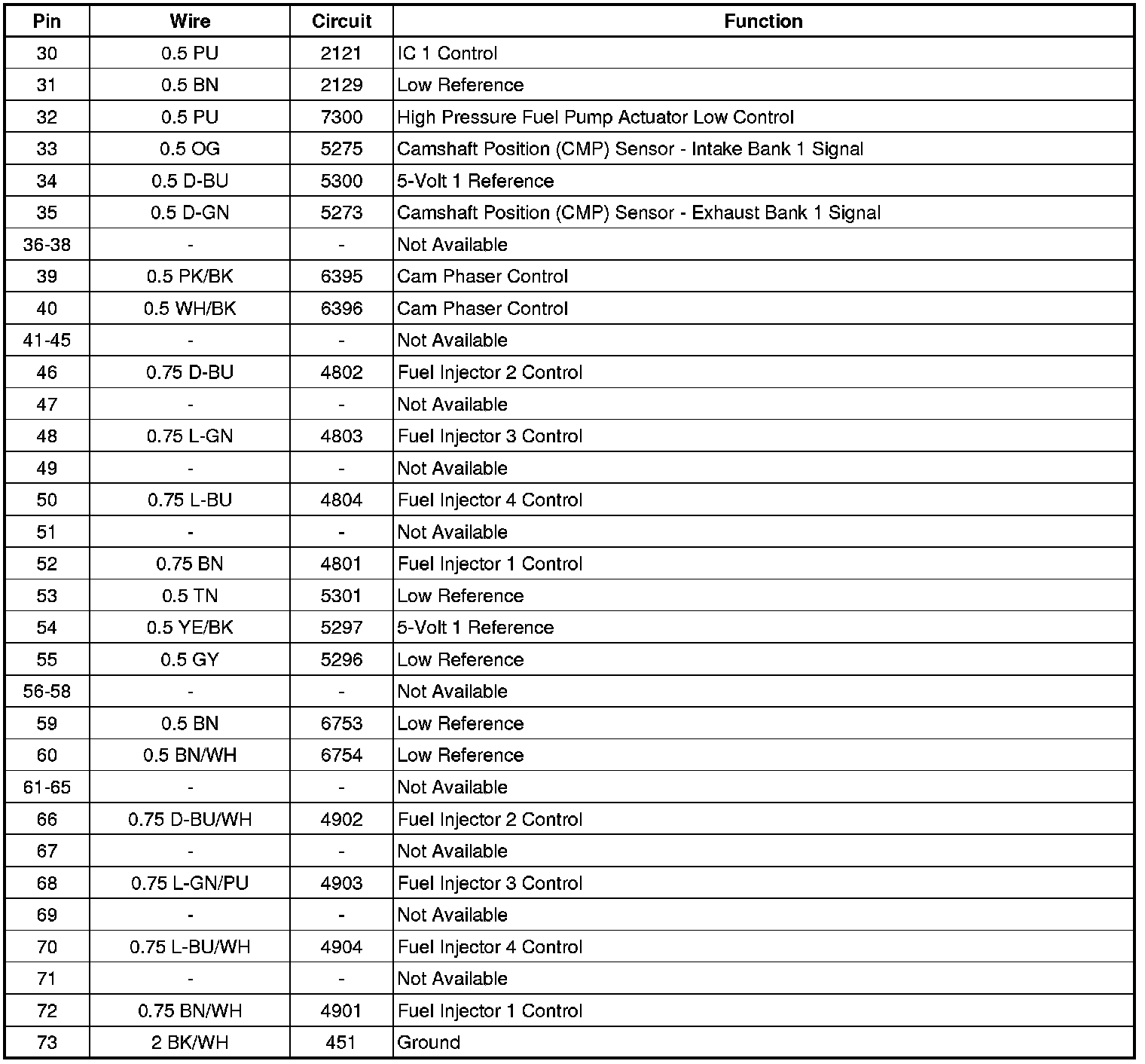

K20 Engine Control Module X3 (LAF)

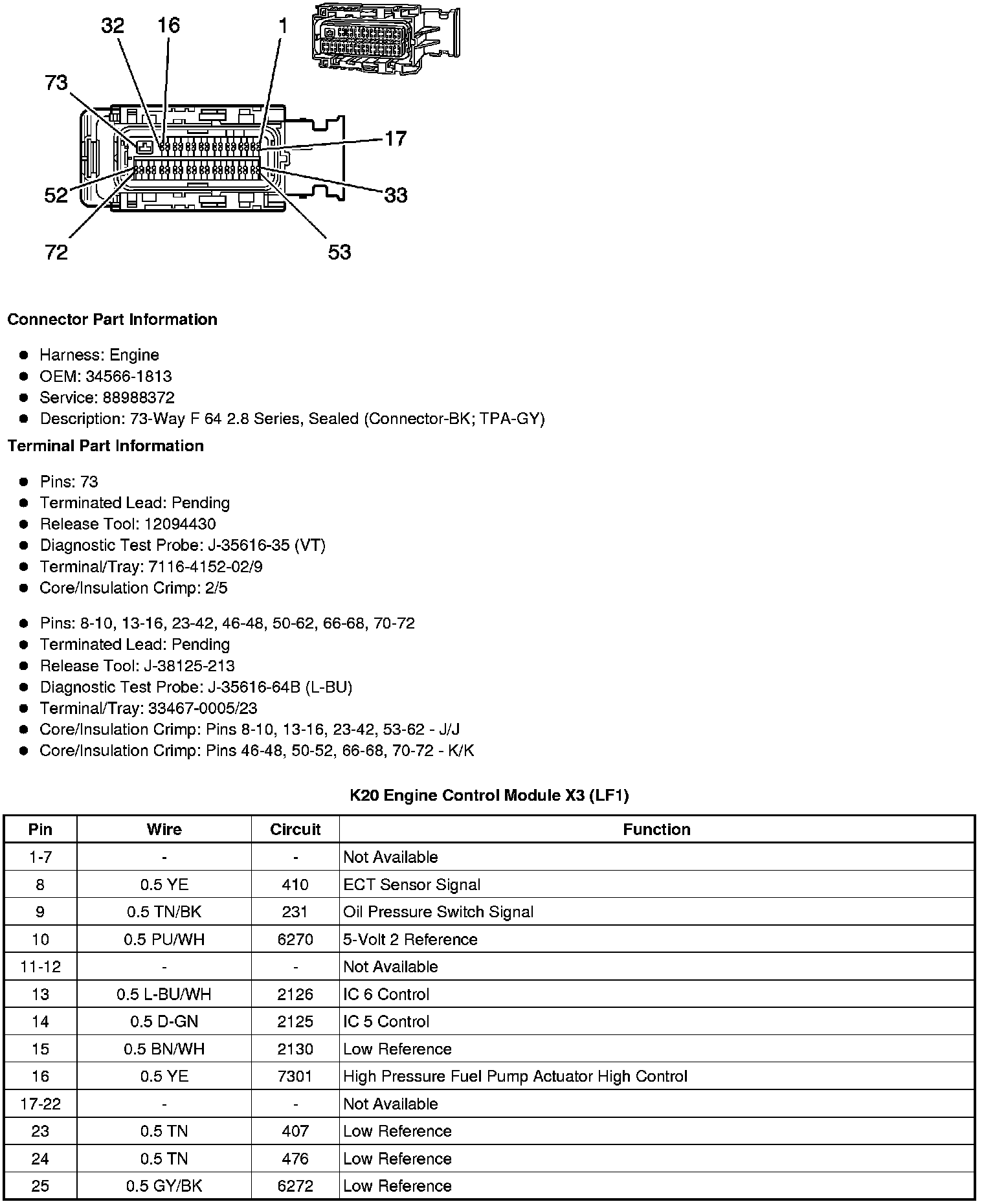

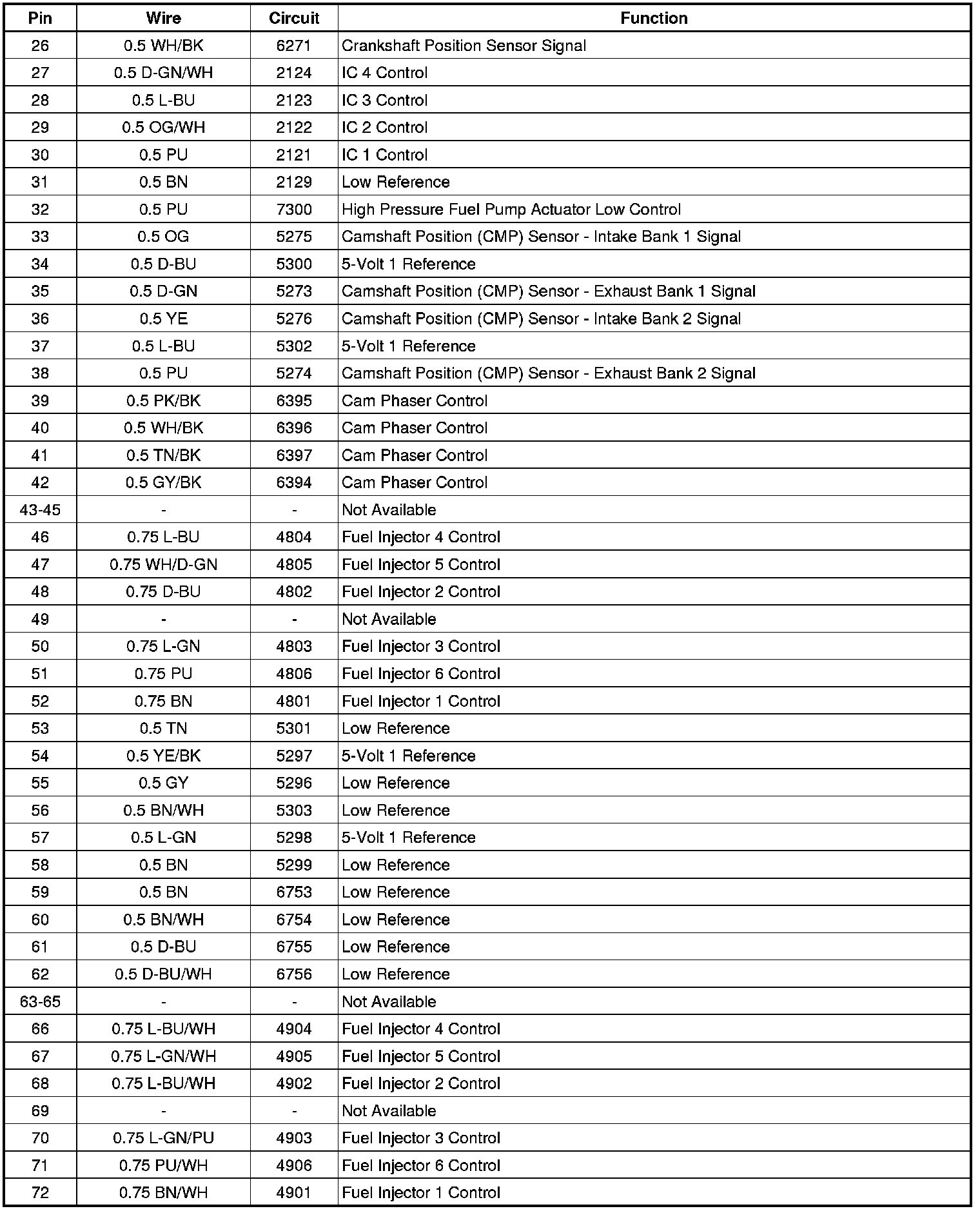

K20 Engine Control Module X3 (LF1)
