Home >> GMC >> 2010 >> Terrain FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module

Communications Control Module

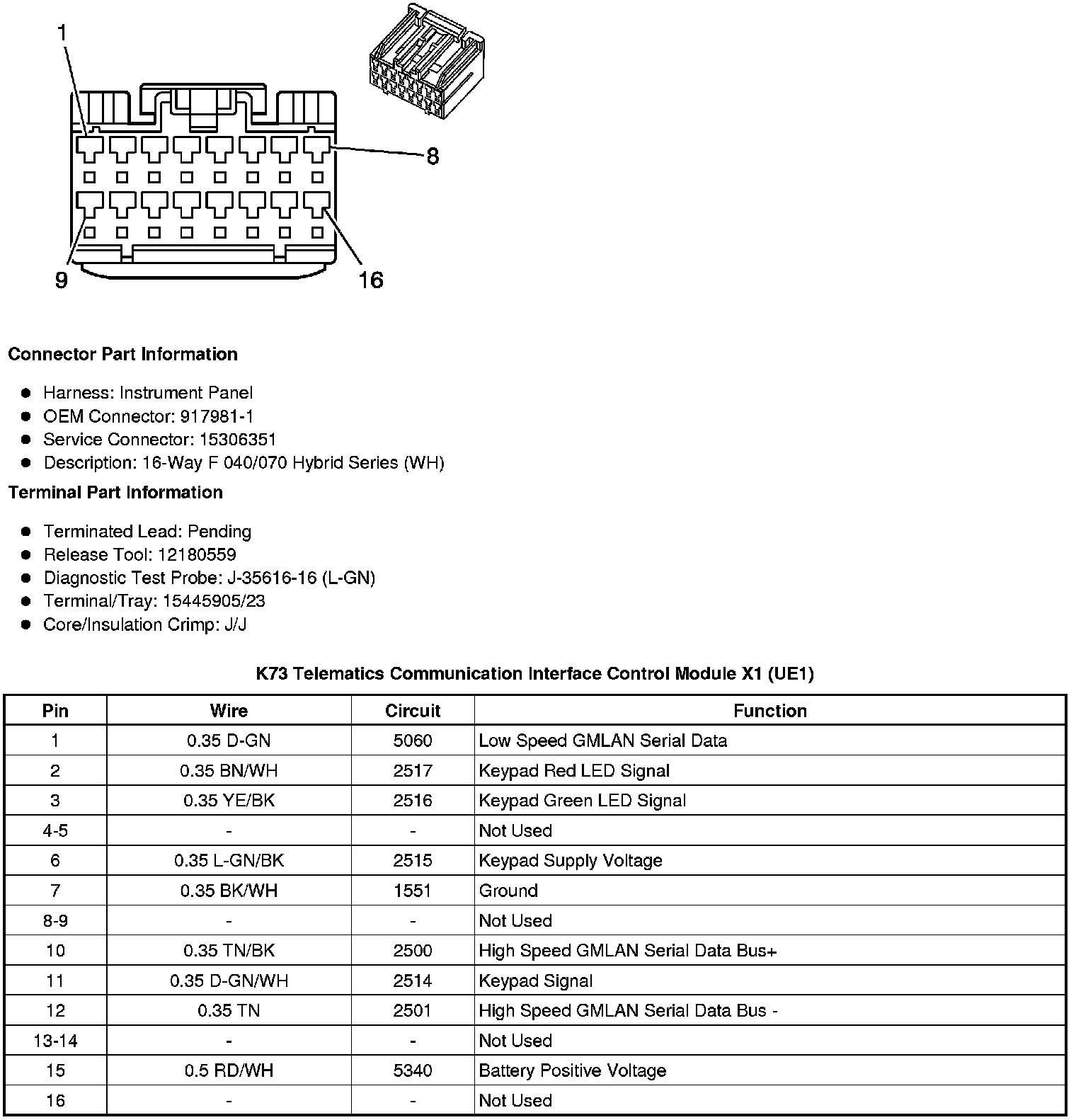

K73 Telematics Communication Interface Control Module X1 (UE1)

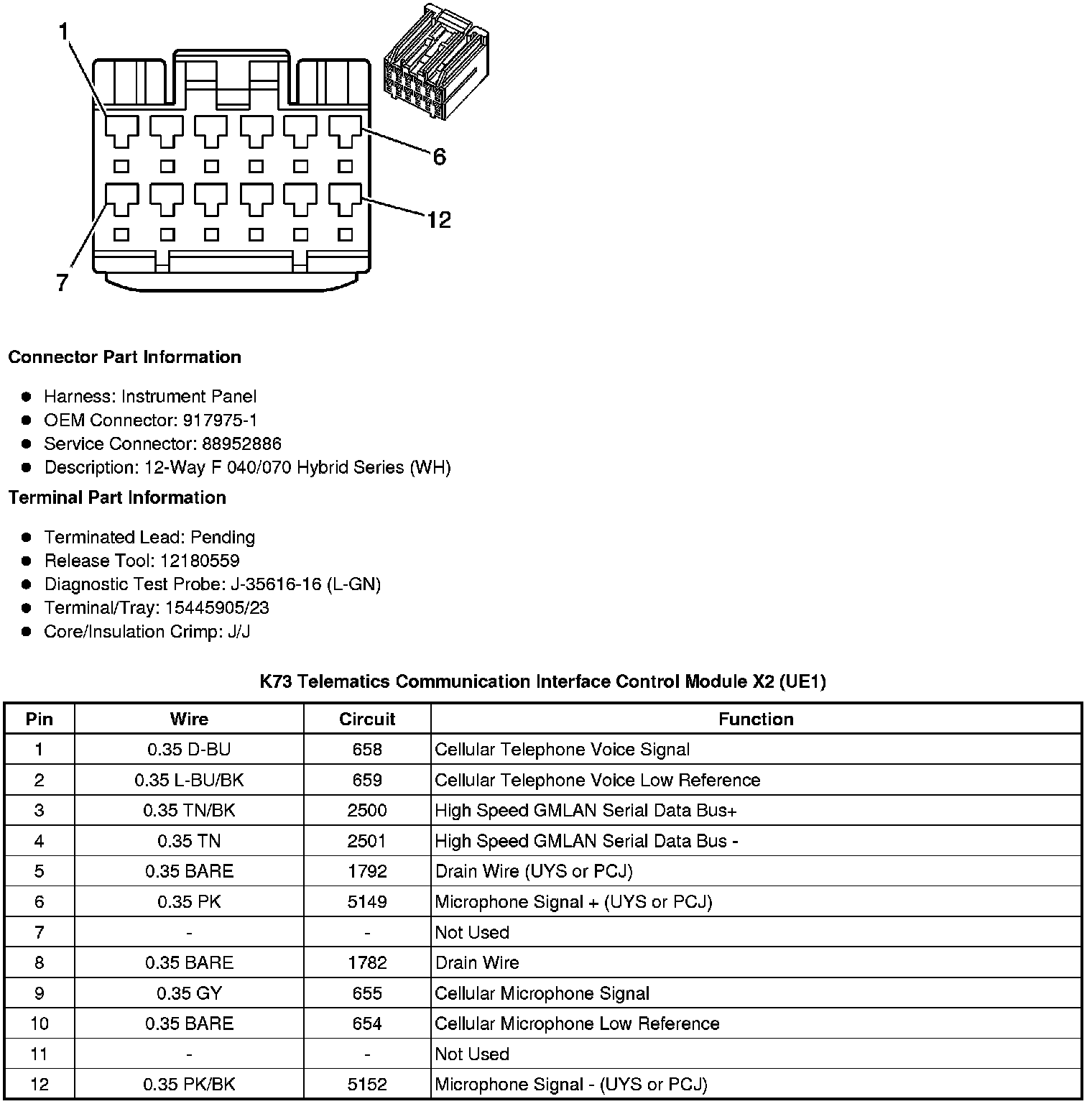

K73 Telematics Communication Interface Control Module X2 (UE1)
