Home >> GMC >> 2010 >> Terrain FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

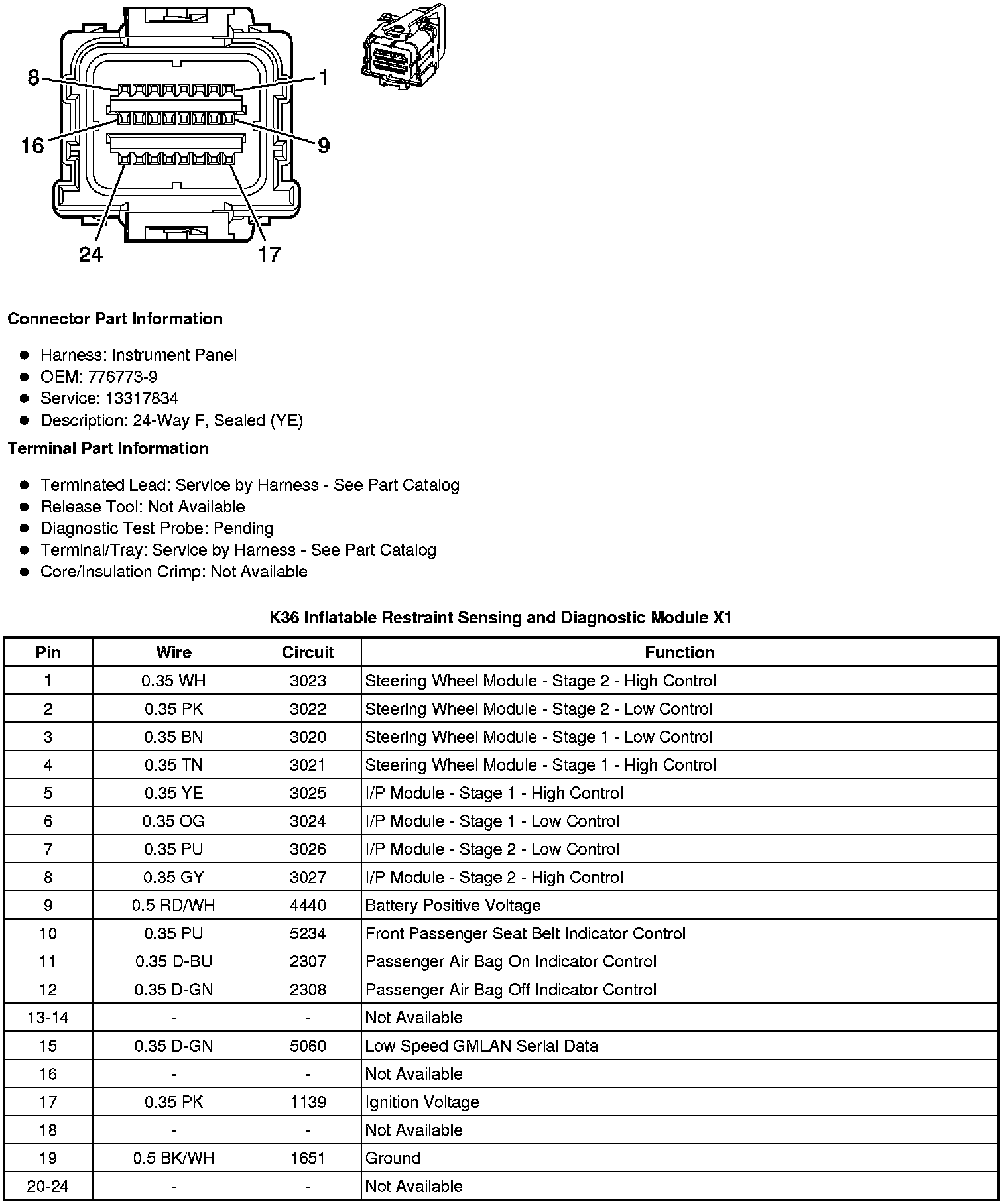

K36 Inflatable Restraint Sensing and Diagnostic Module X1

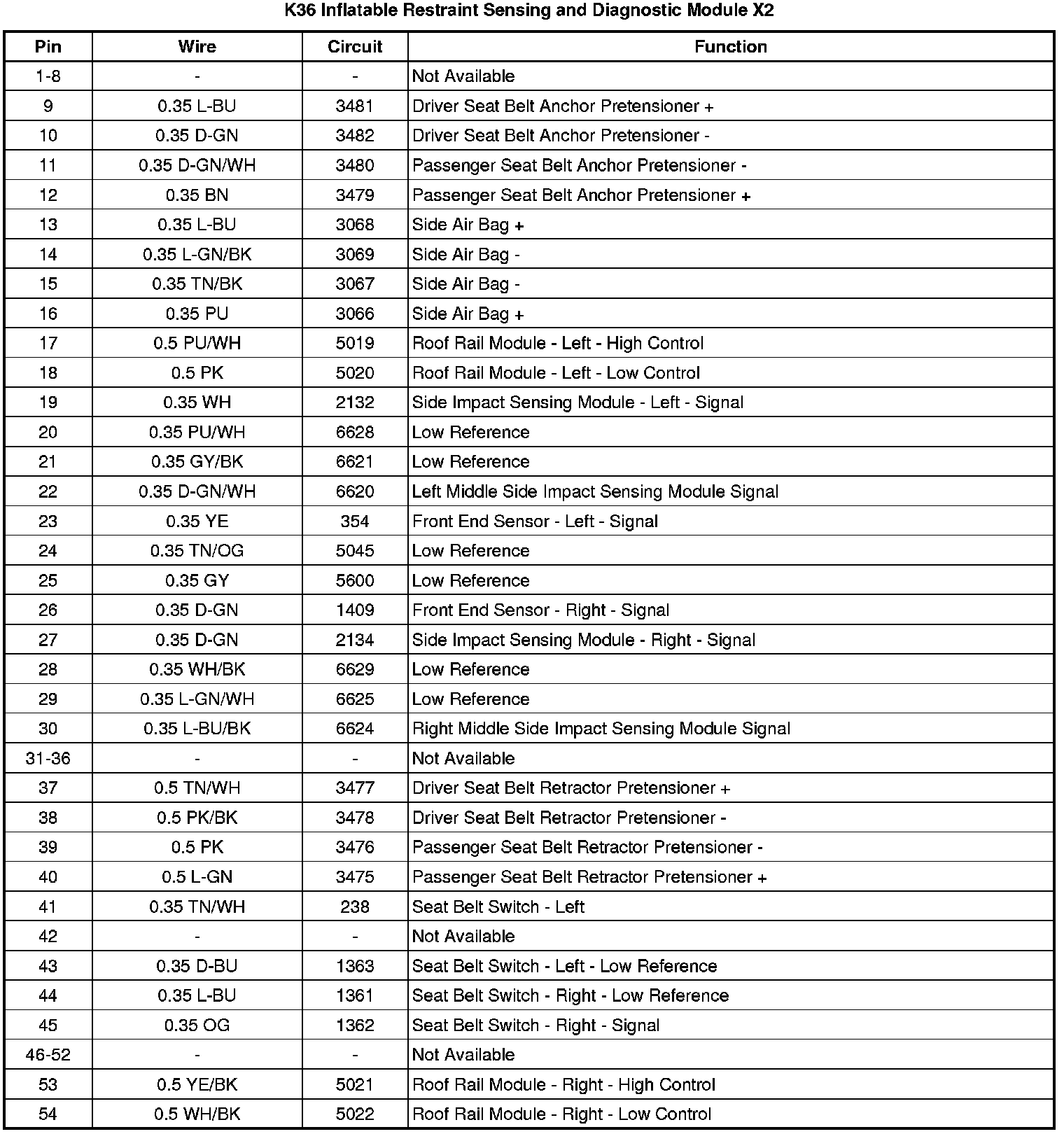

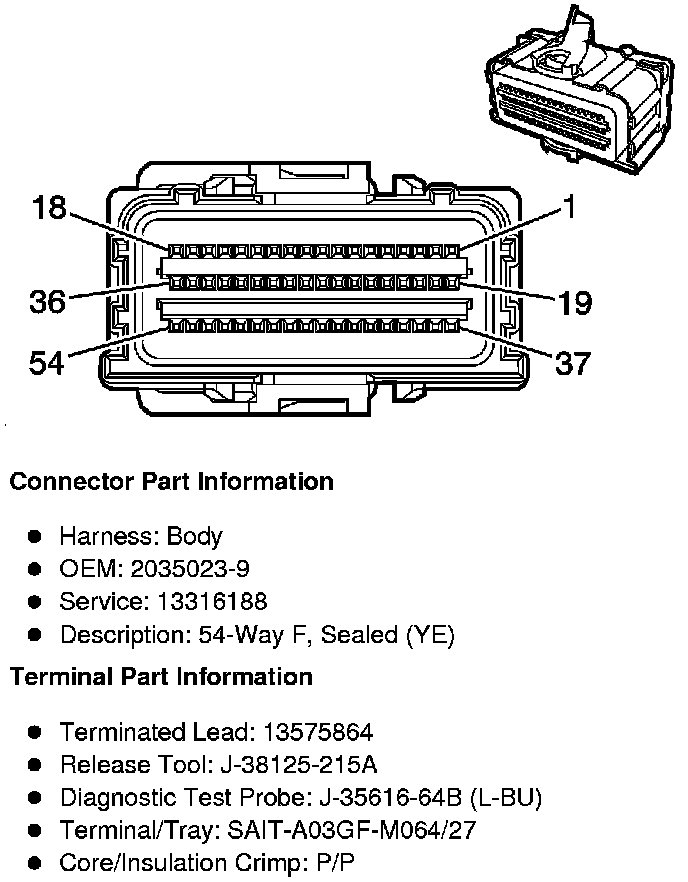

K36 Inflatable Restraint Sensing and Diagnostic Module X2
