GMC
>>
2010
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
Control Unit, Differential Lock

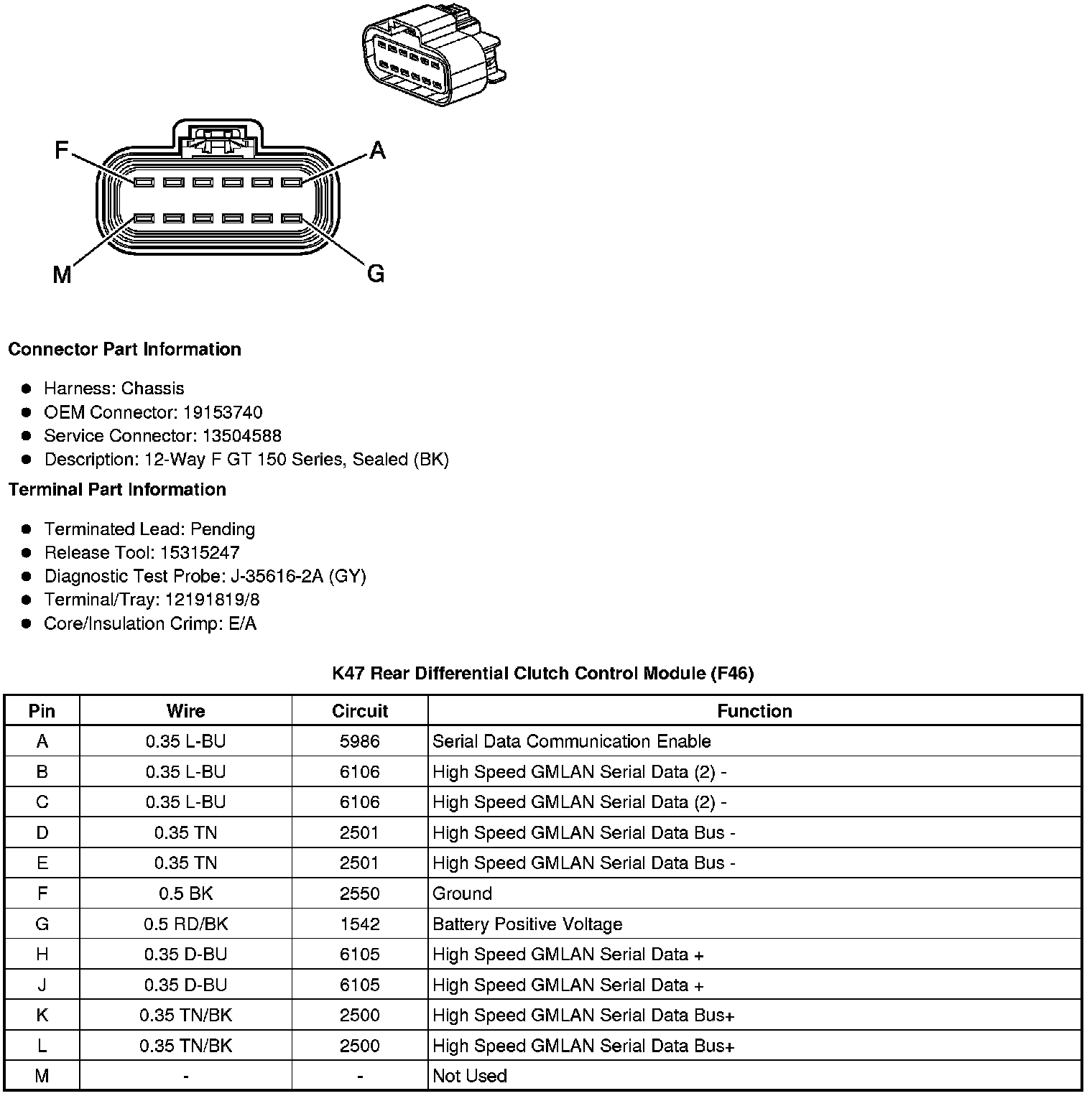

K47 Rear Differential Clutch Control Module (F46)
