Control Module, Transfer Case




Component Connector End Views

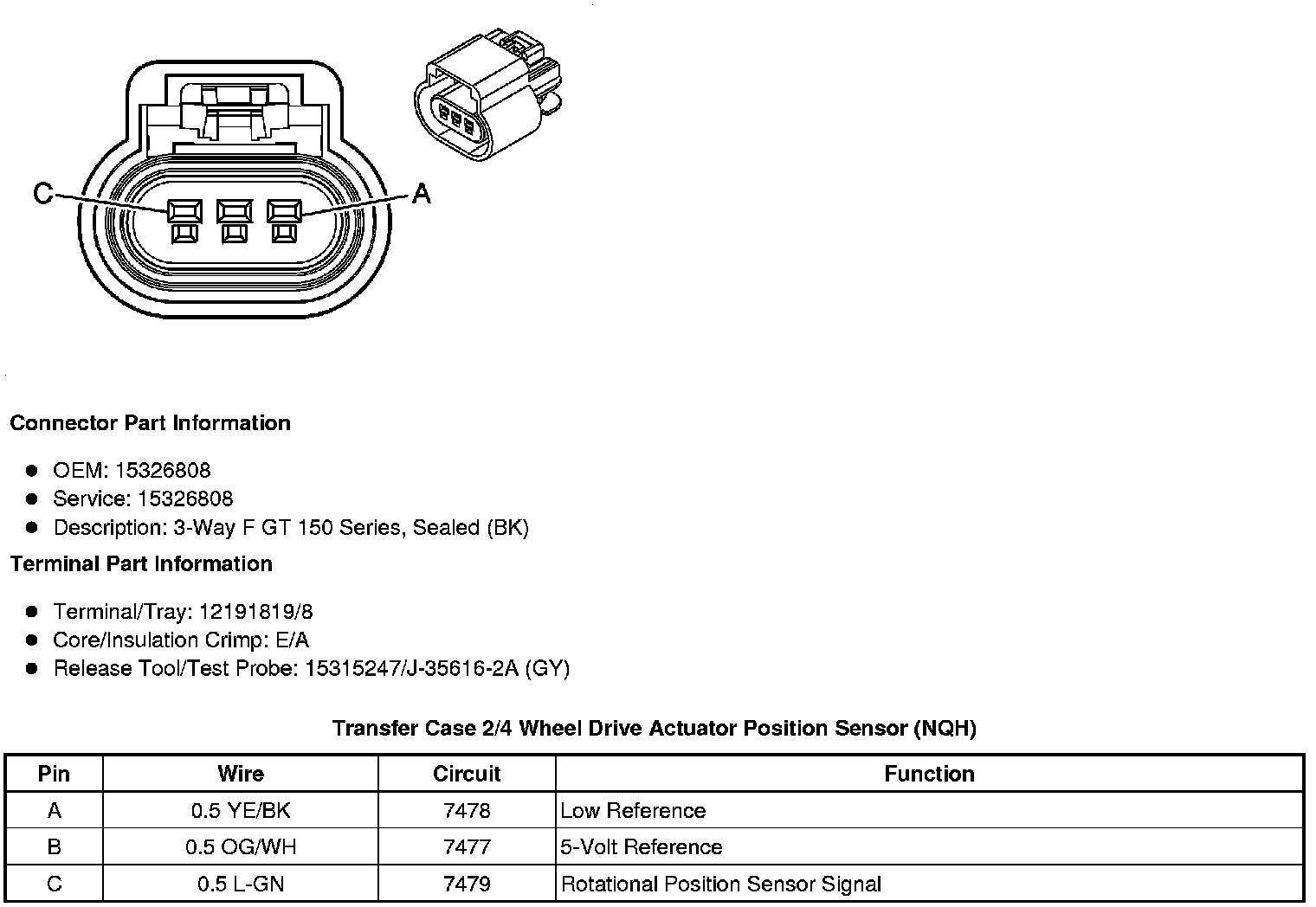

Transfer Case 2/4 Wheel Drive Actuator Position Sensor (NQH)

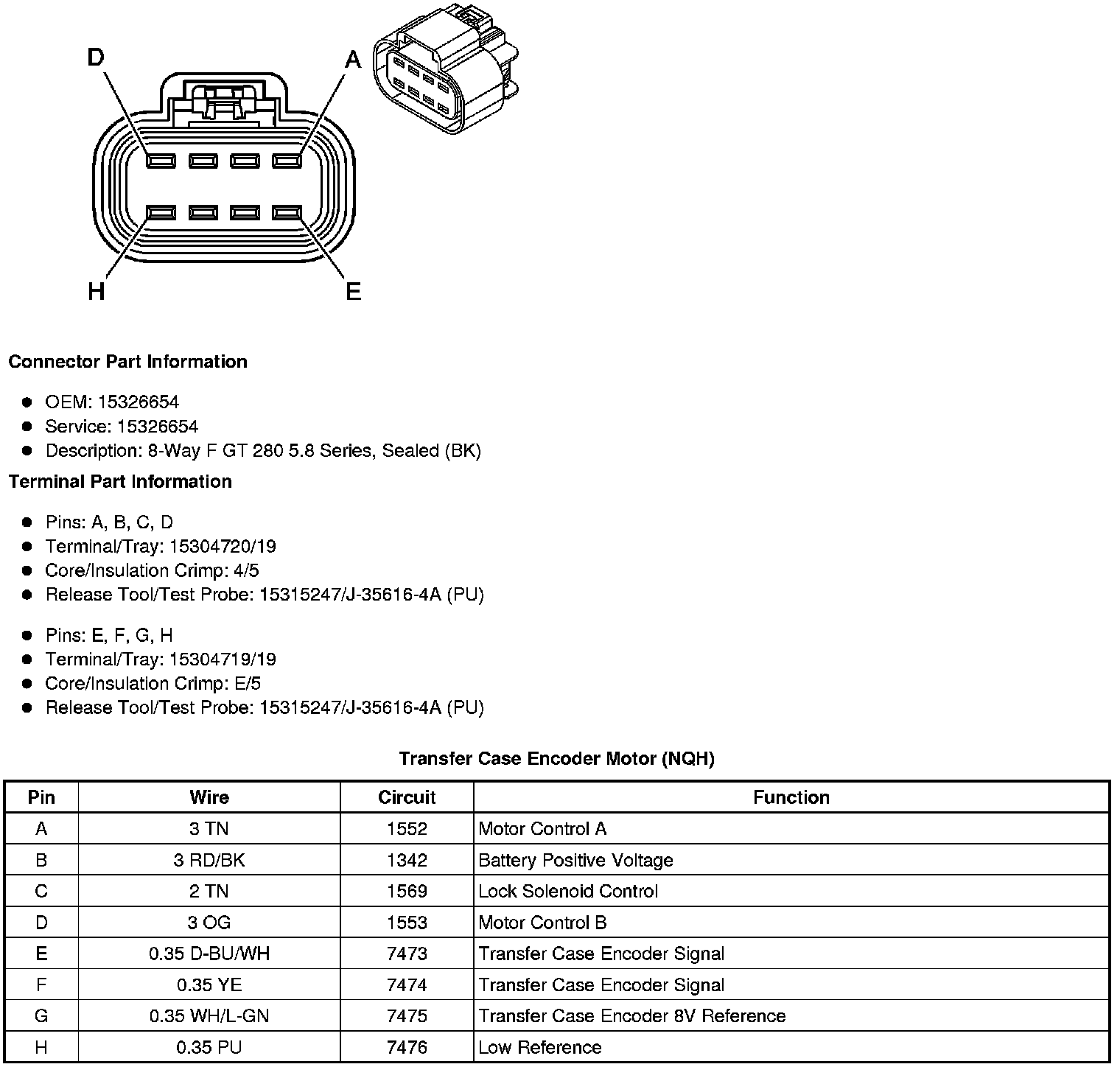

Transfer Case Encoder Motor (NQH)

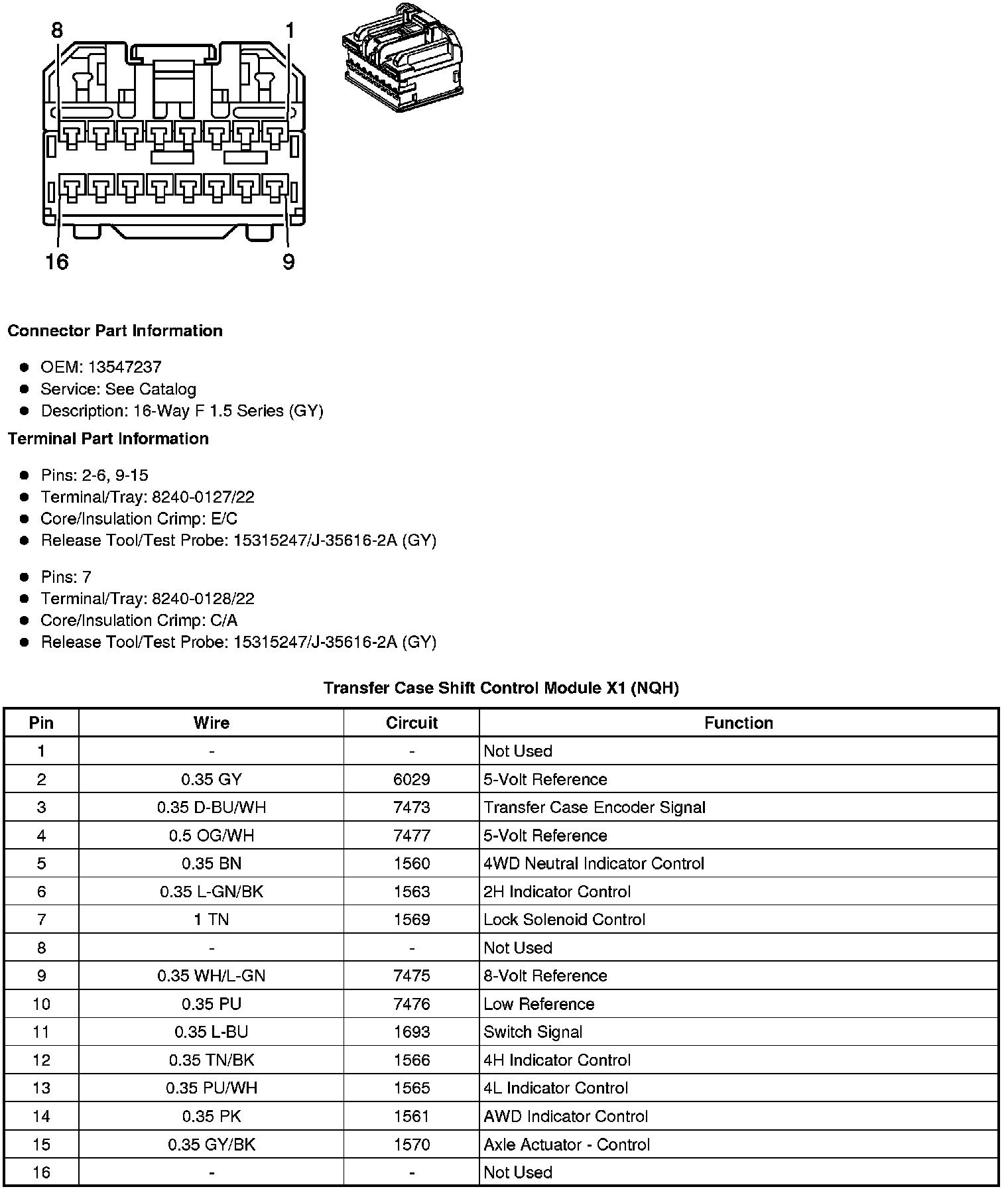

Transfer Case Shift Control Module X1 (NQH)

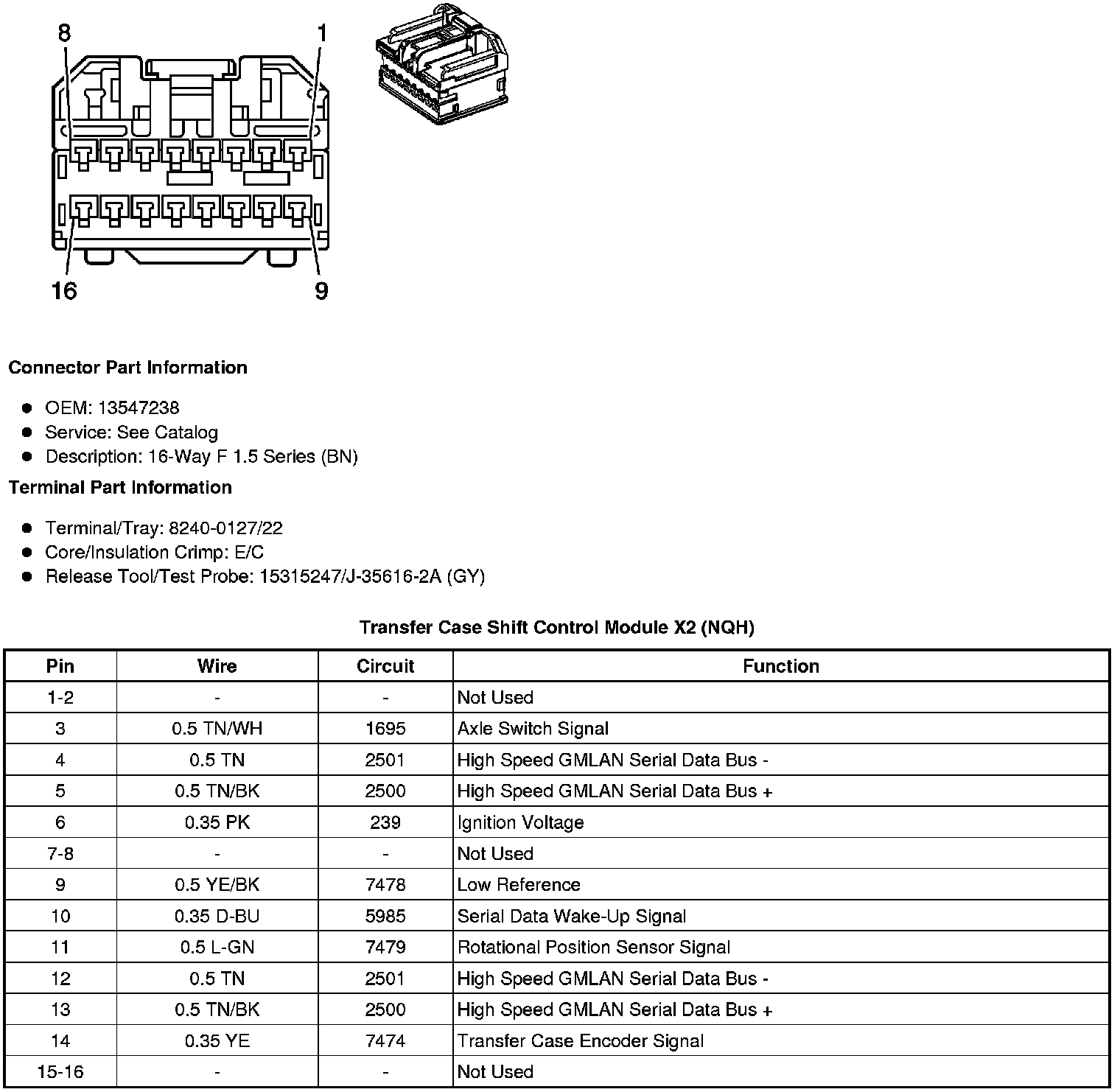

Transfer Case Shift Control Module X2 (NQH)

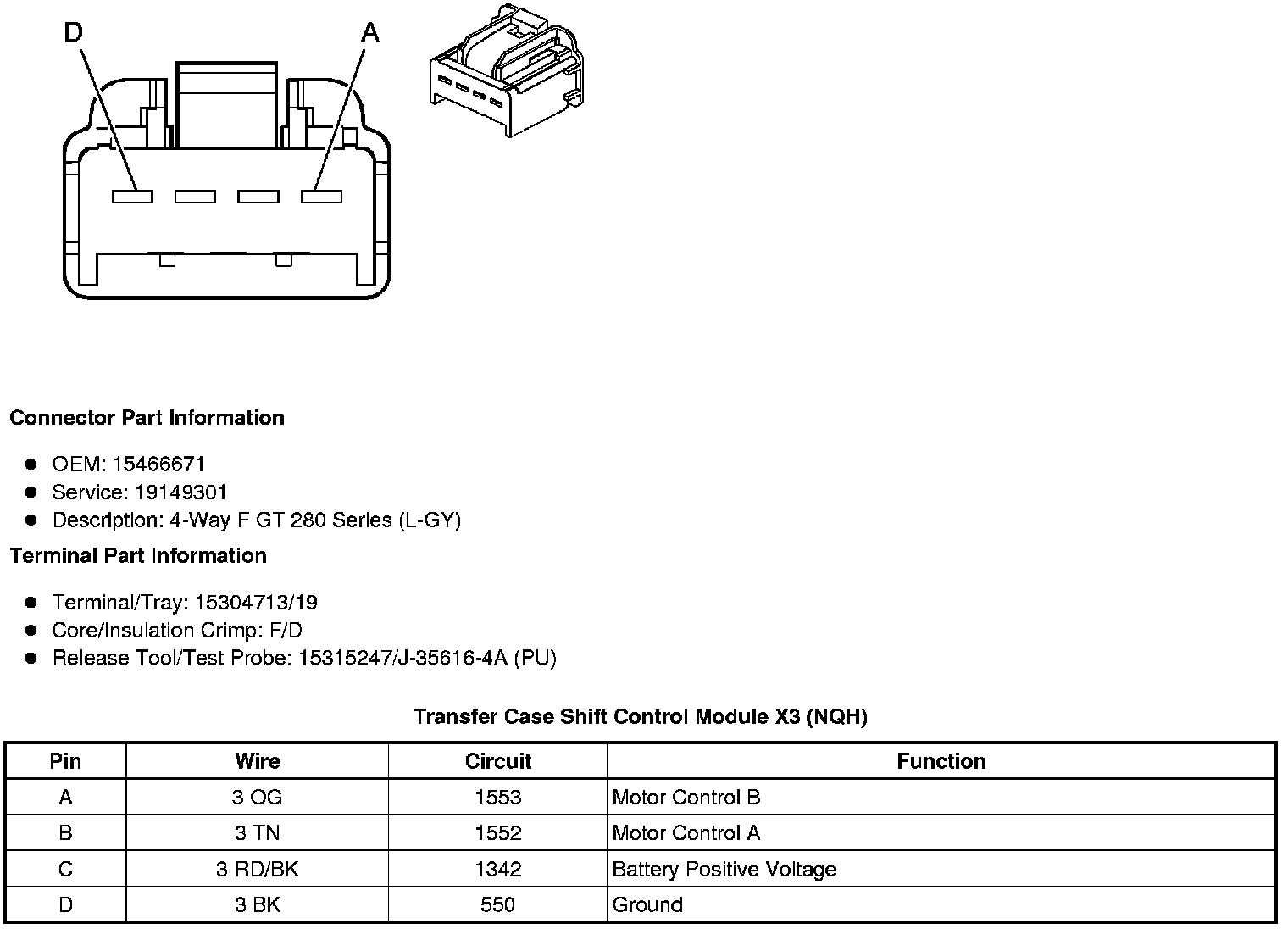

Transfer Case Shift Control Module X3 (NQH)

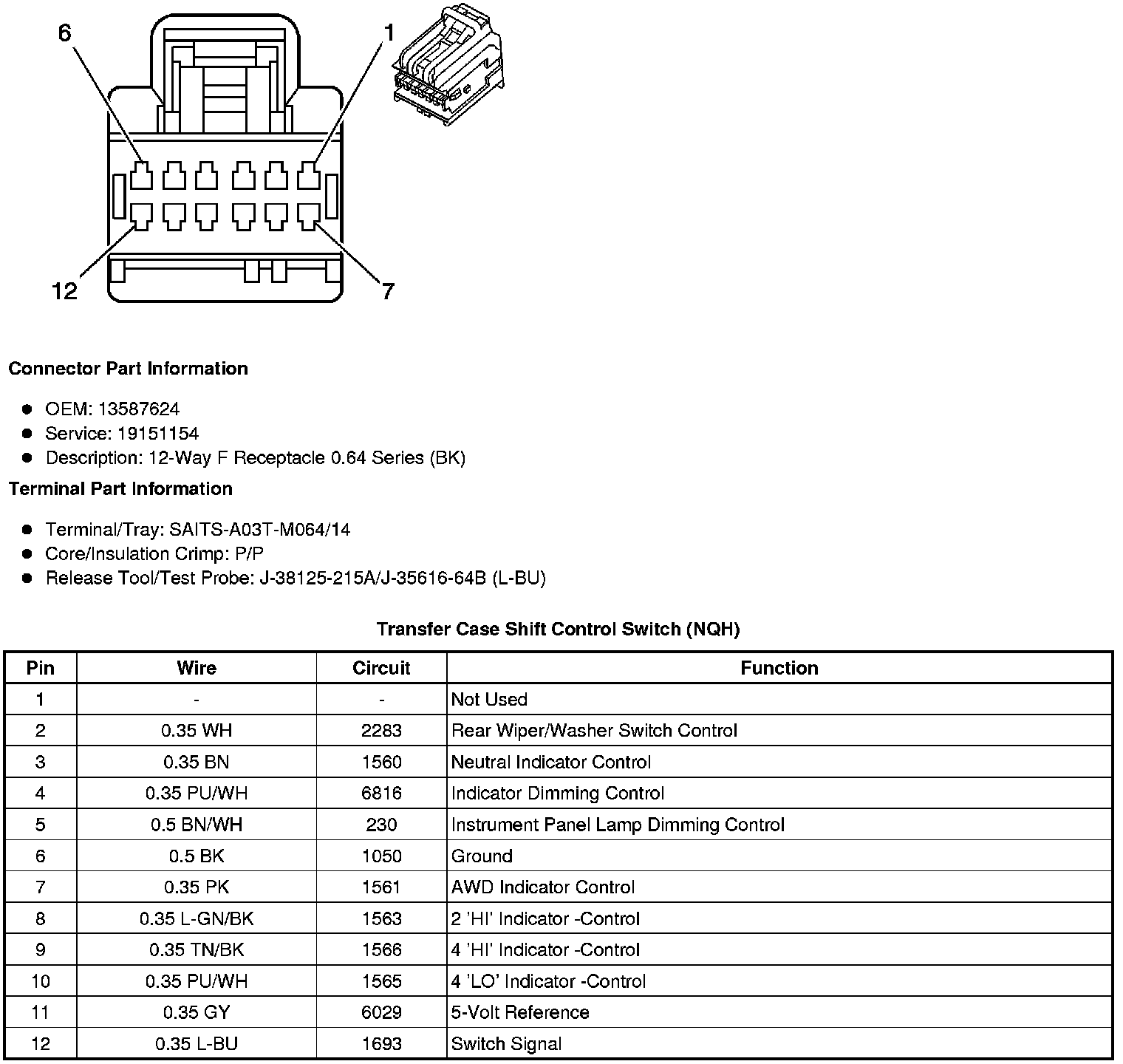

Transfer Case Shift Control Switch (NQH)
