Shock Sensor, Antitheft

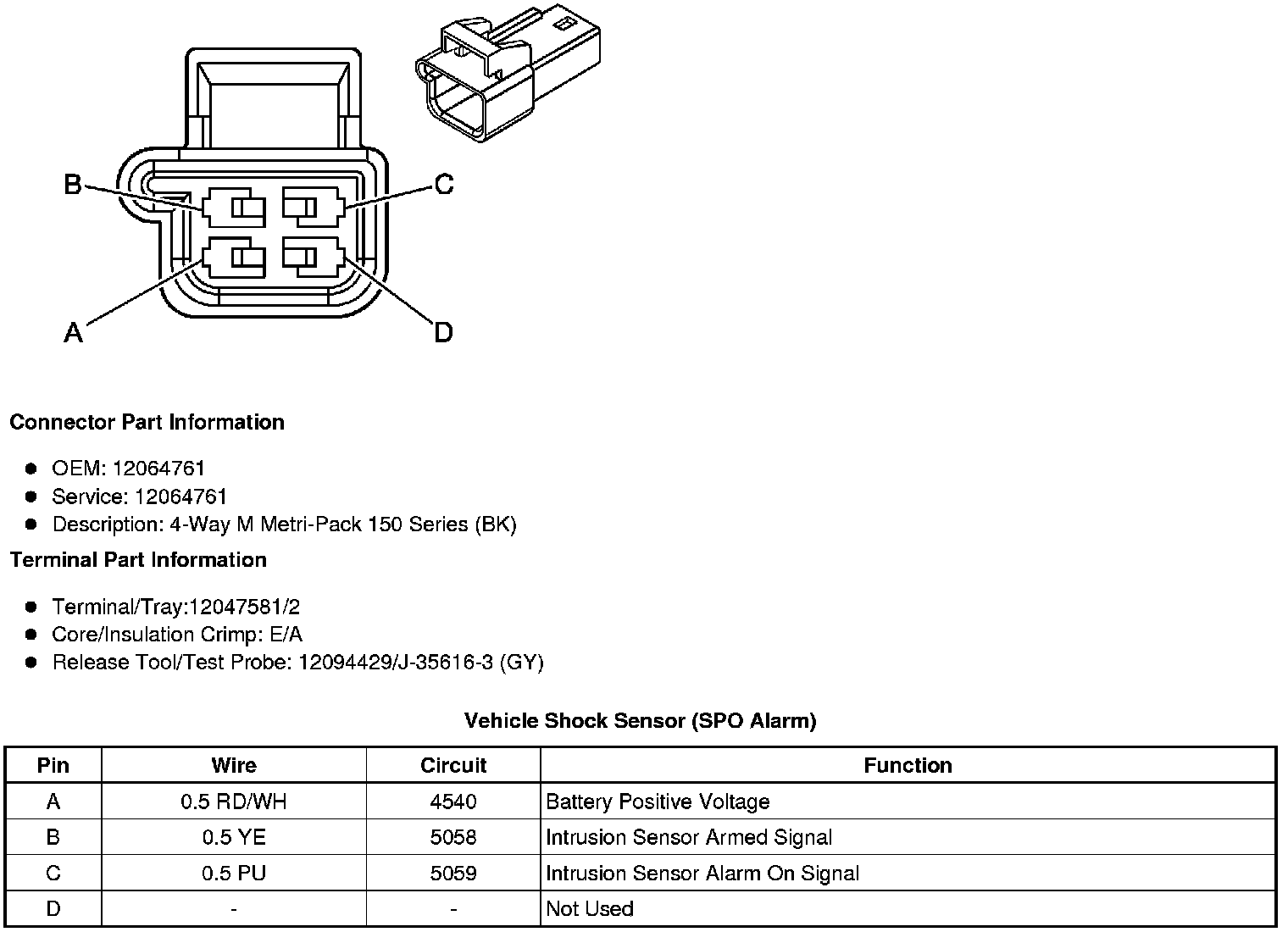

Shock Sensor, Antitheft
Component Connector End Views
Vehicle
Shock Sensor
(SPO Alarm)
