Entertainment System Control Module
Entertainment System Control Module

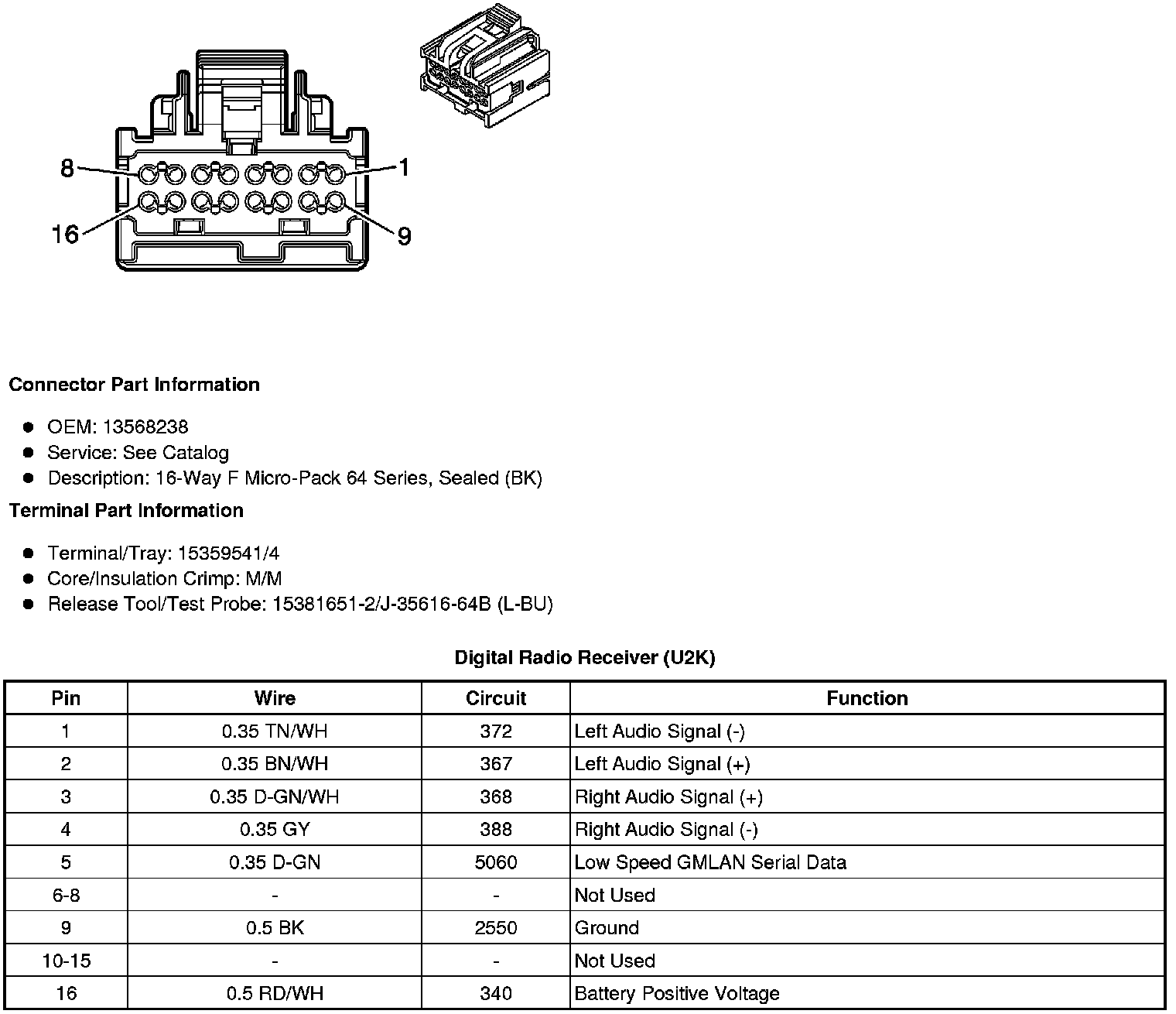

Component Connector End Views
Digital Radio Receiver (U2K)
