Air Bag Control Module




Component Connector End Views

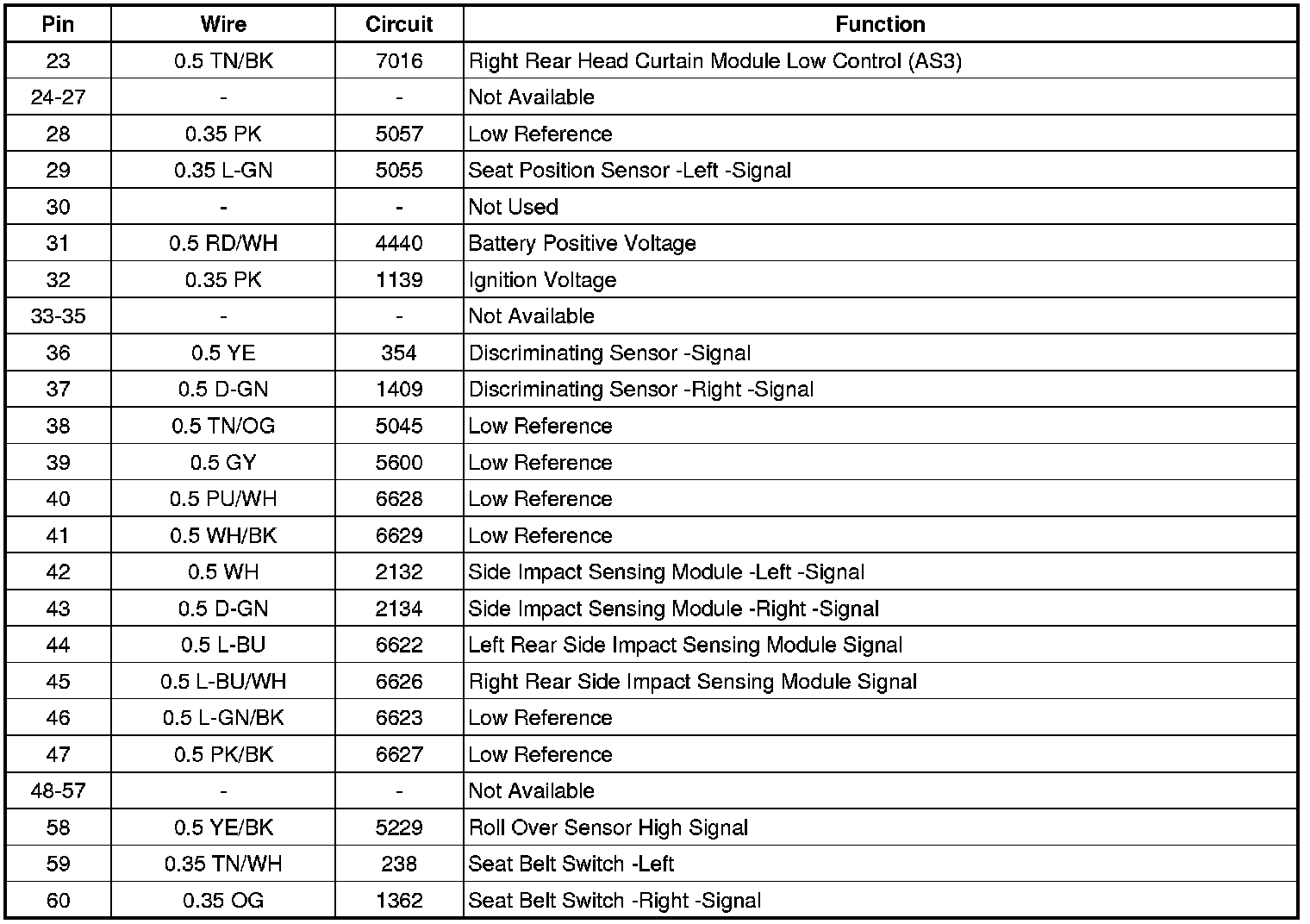

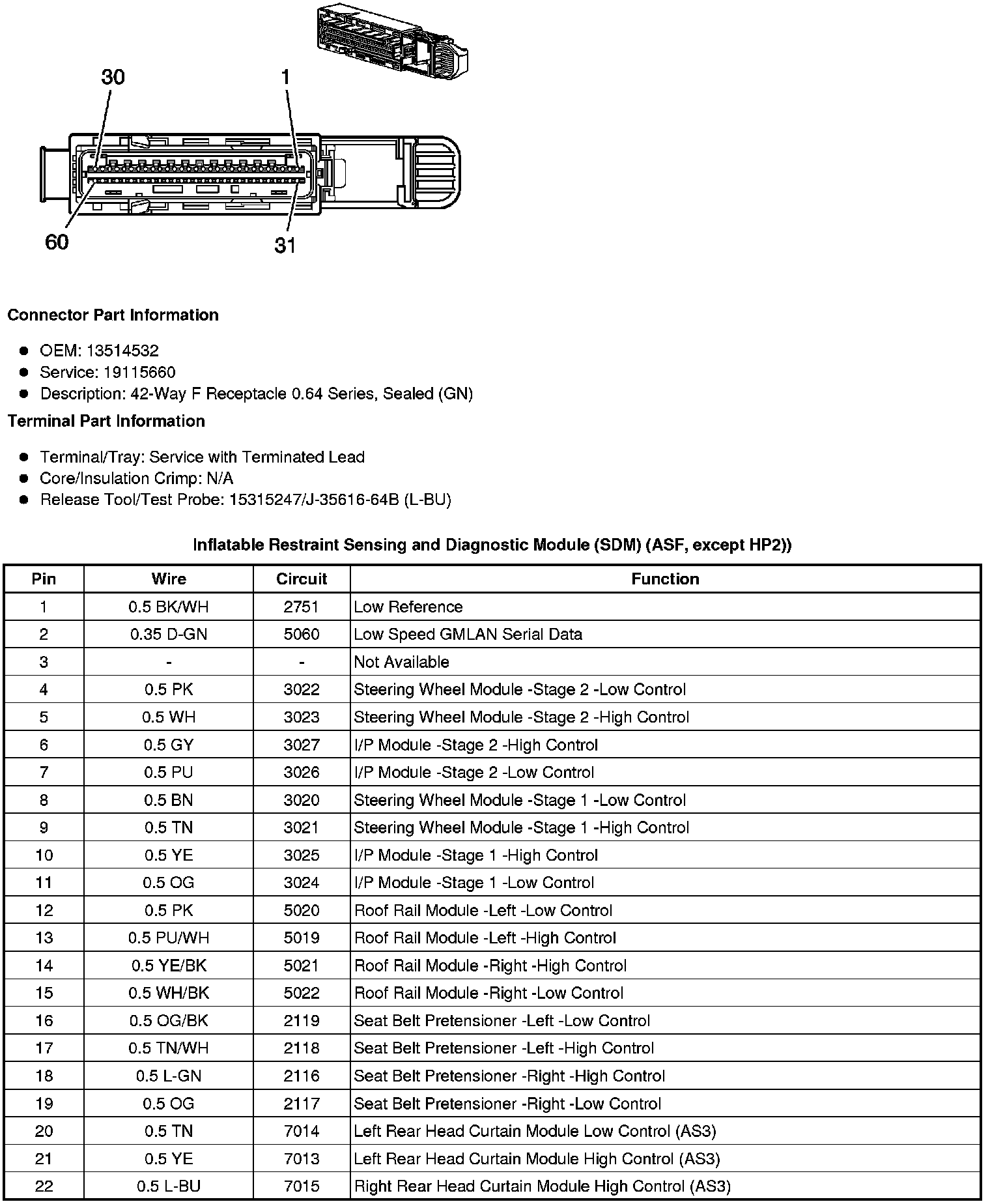

Inflatable Restraint Sensing and Diagnostic Module (SDM) (ASF, except HP2)

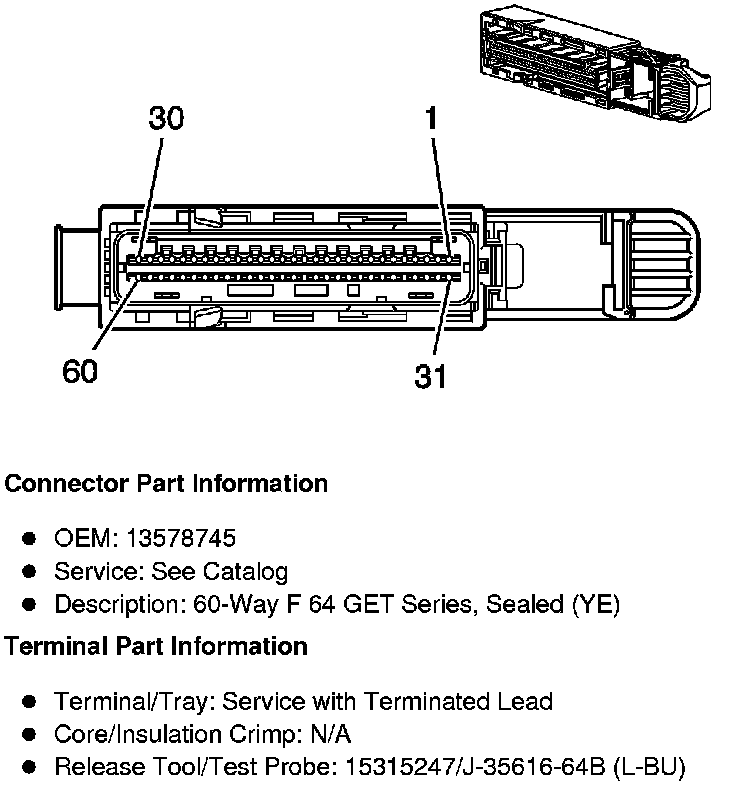

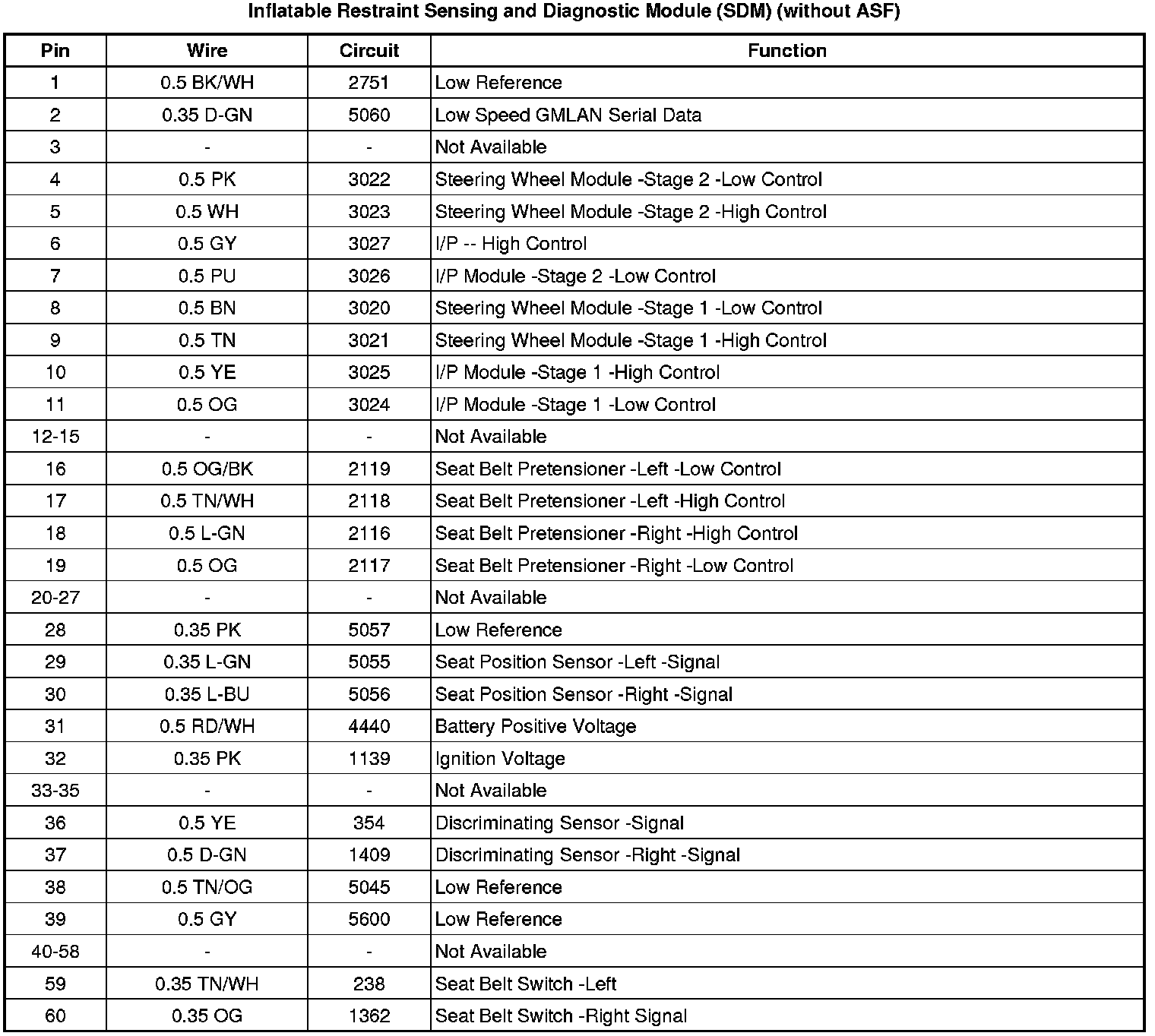

Inflatable Restraint Sensing and Diagnostic Module (SDM) (without ASF)

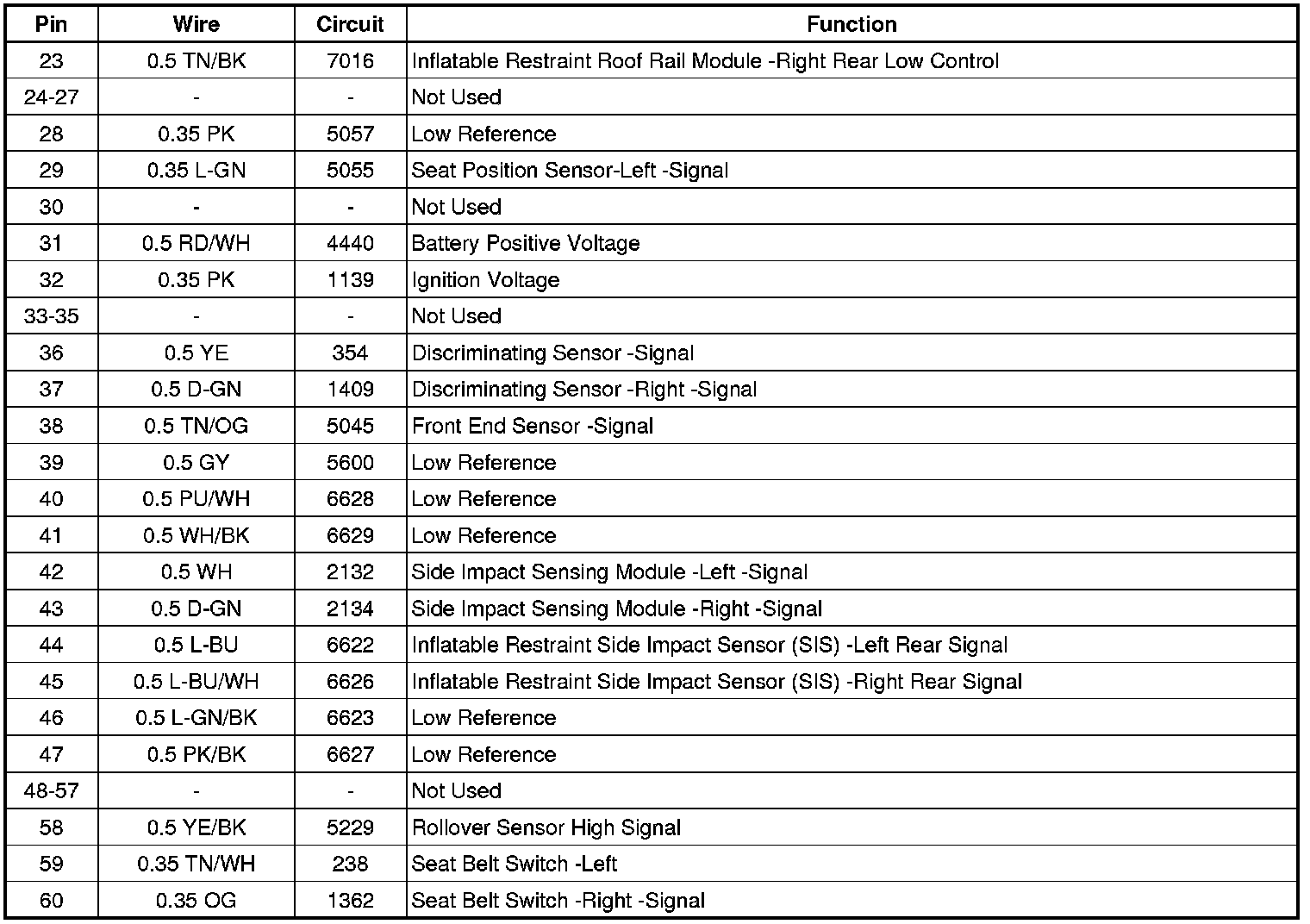

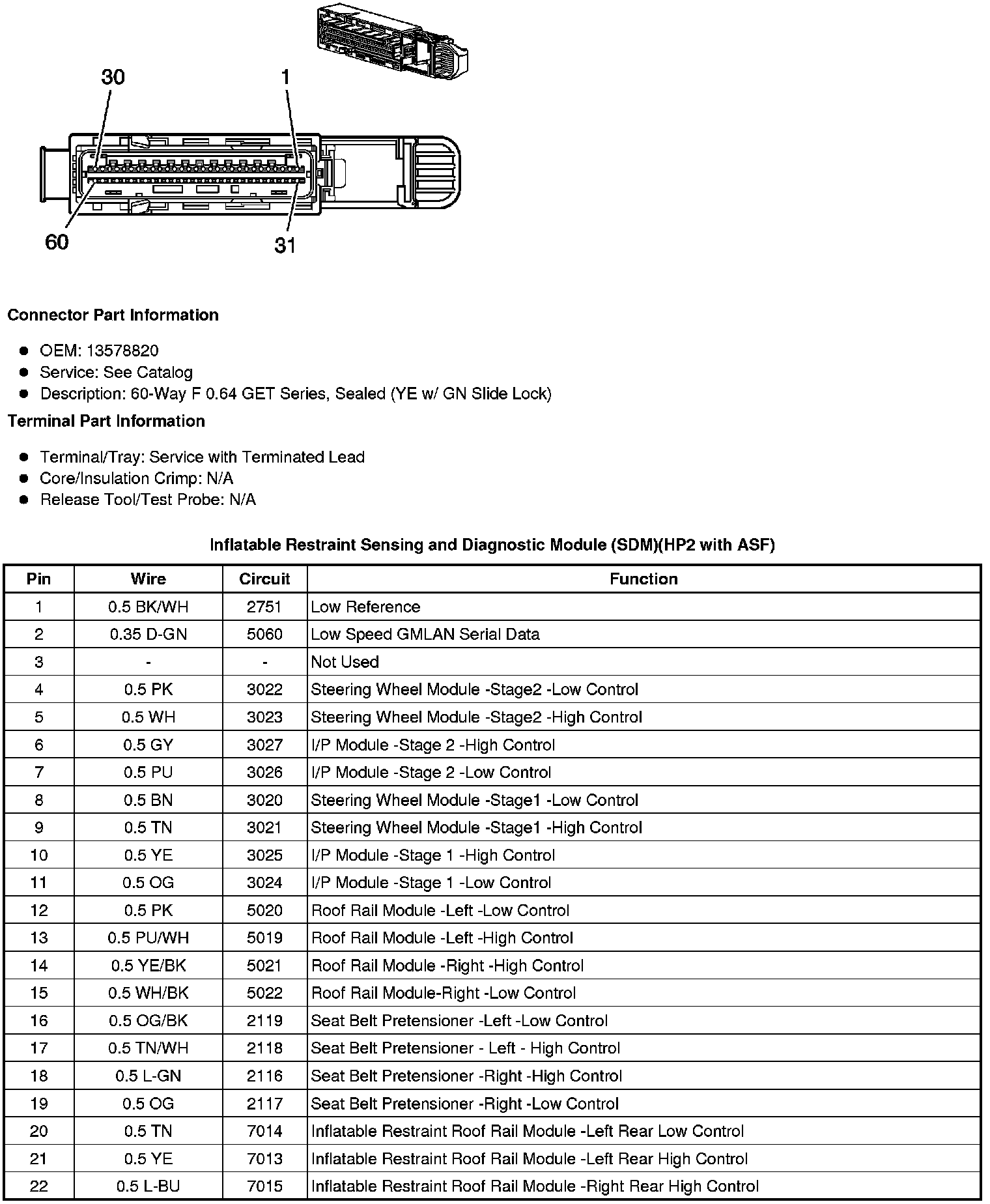

Inflatable Restraint Sensing and Diagnostic Module (SDM) (HP2 with ASF)
