Home >> GMC >> 2009 >> Envoy 2WD L6-4.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

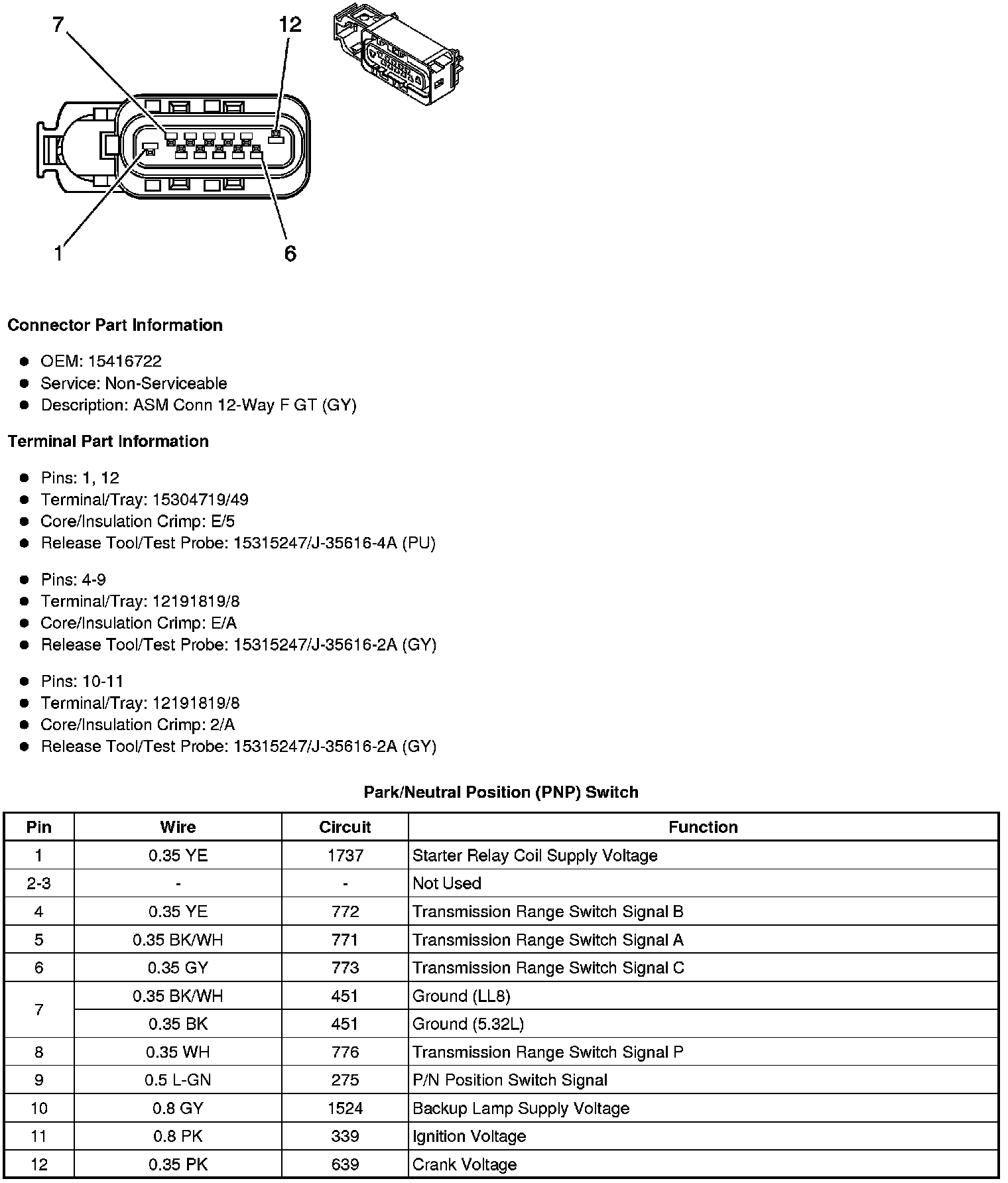

Component Connector End Views

Park/Neutral Position (PNP) Switch
