Air Flow Meter/Sensor: Diagrams

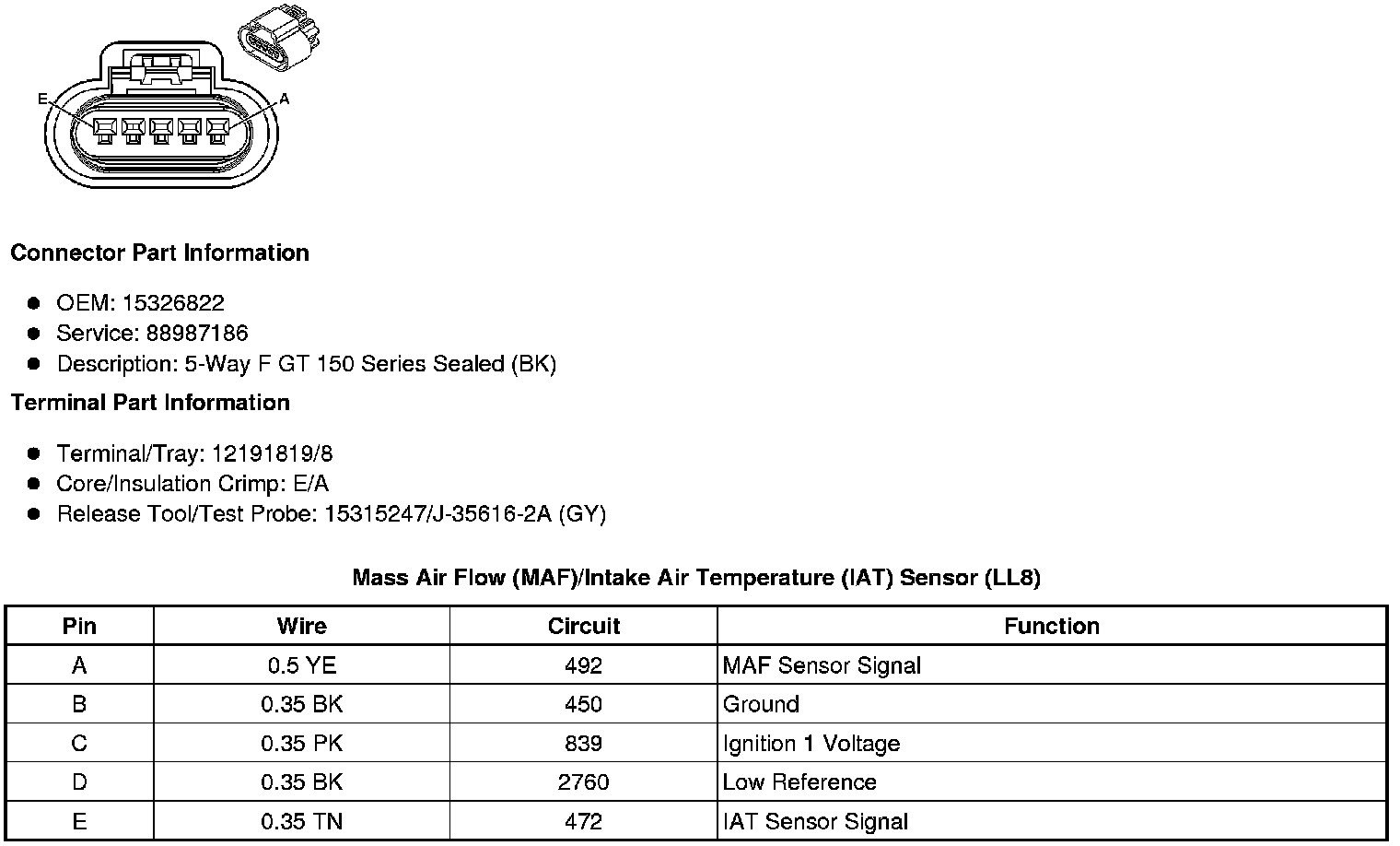

Component Connector End Views

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LL8)
