Control Module, Transfer Case



Component Connector End Views - Continued

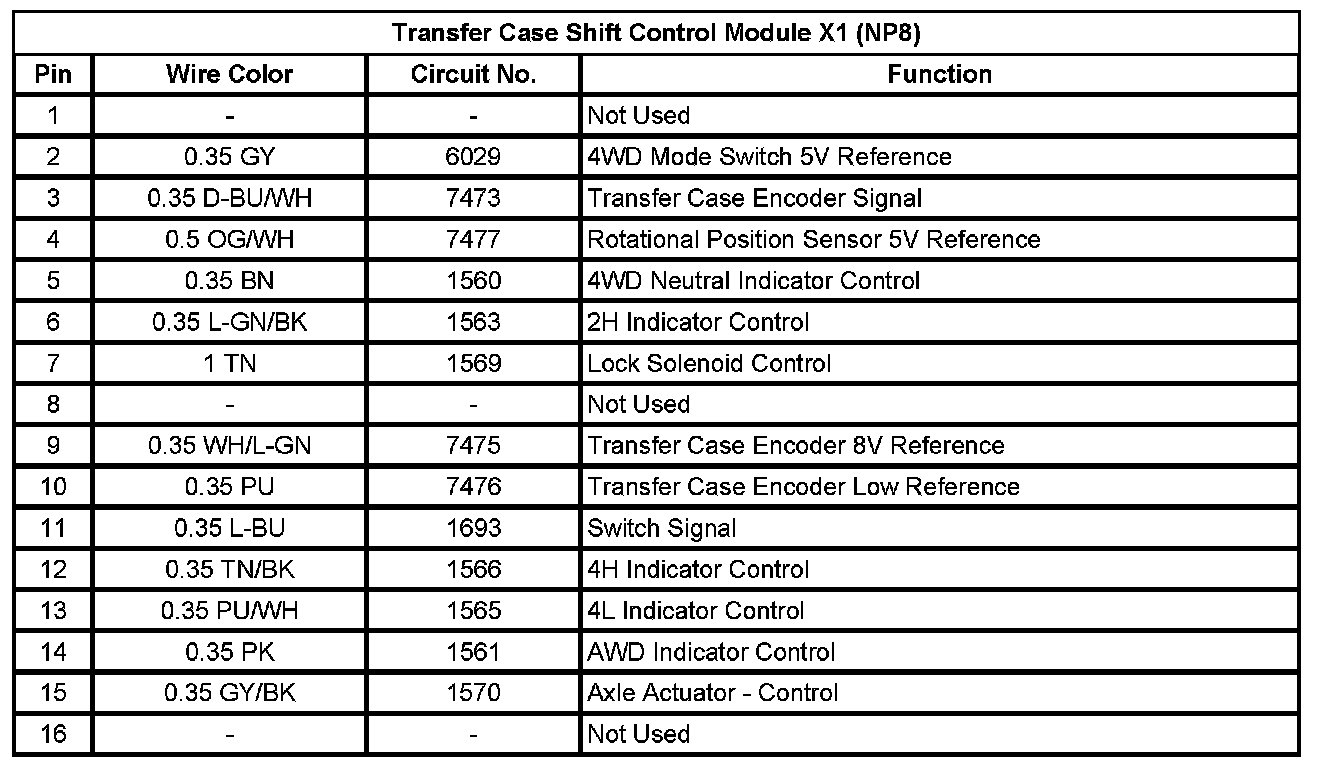

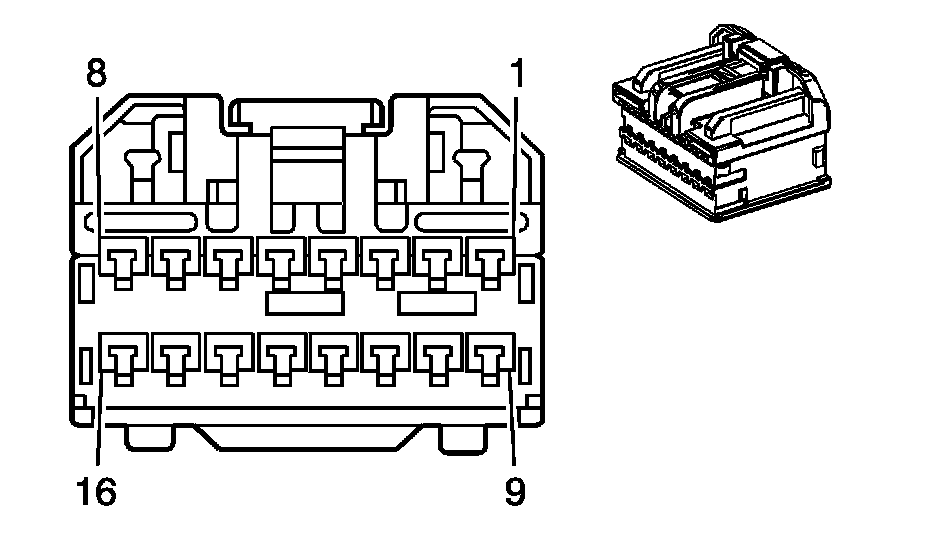

Transfer Case Shift Control Module X1 (NP8)

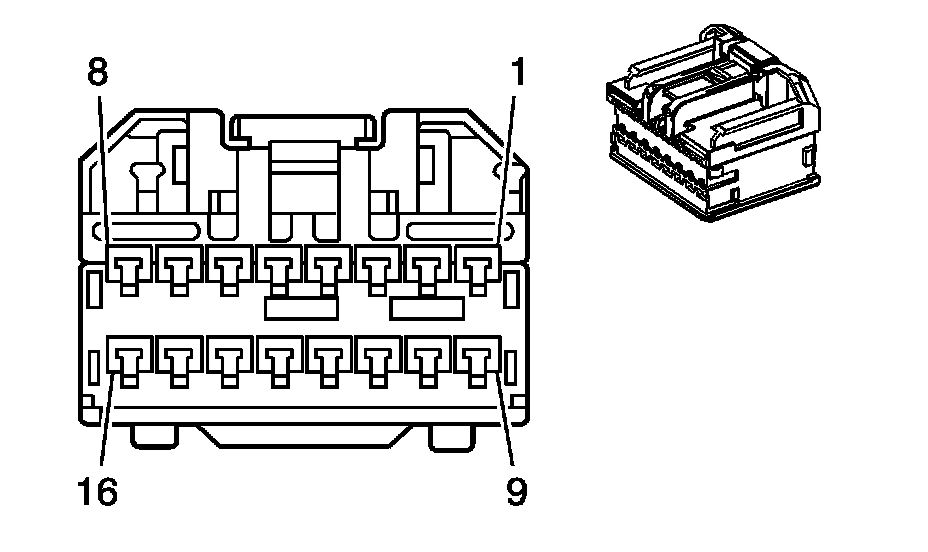

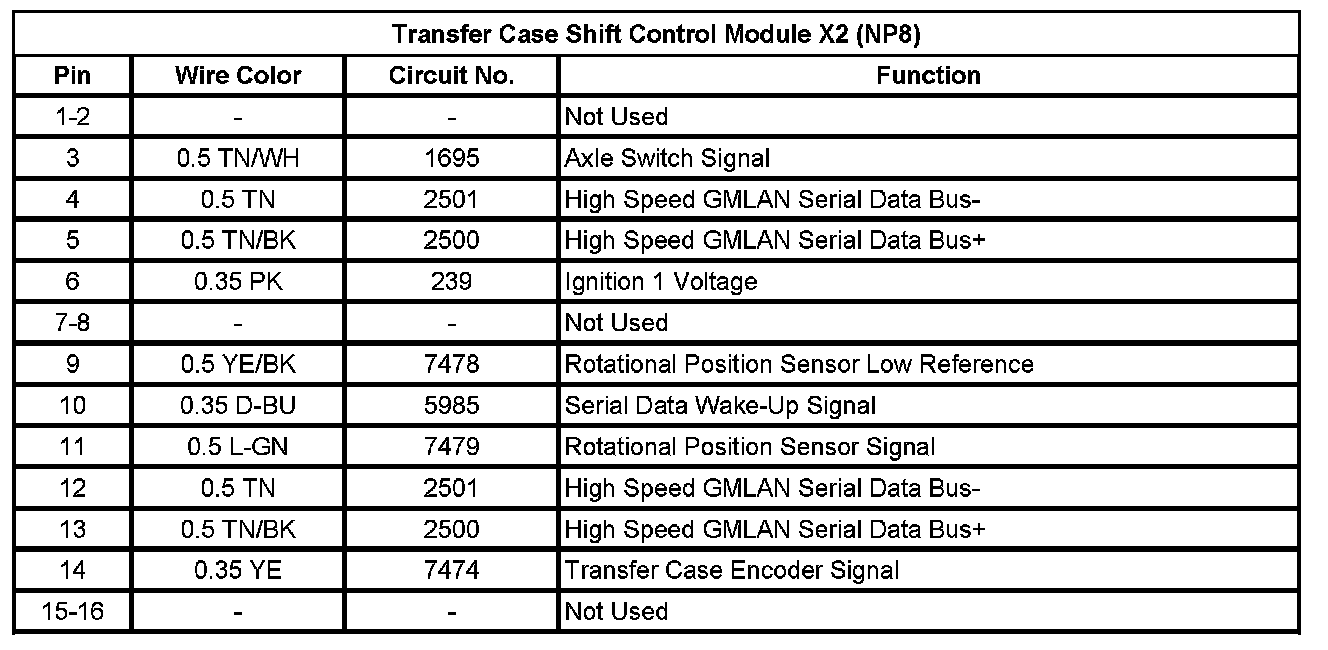

Transfer Case Shift Control Module X2 (NP8)

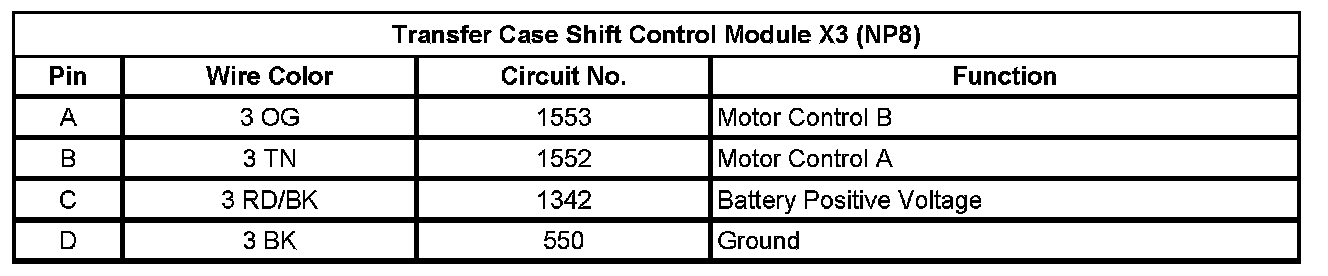

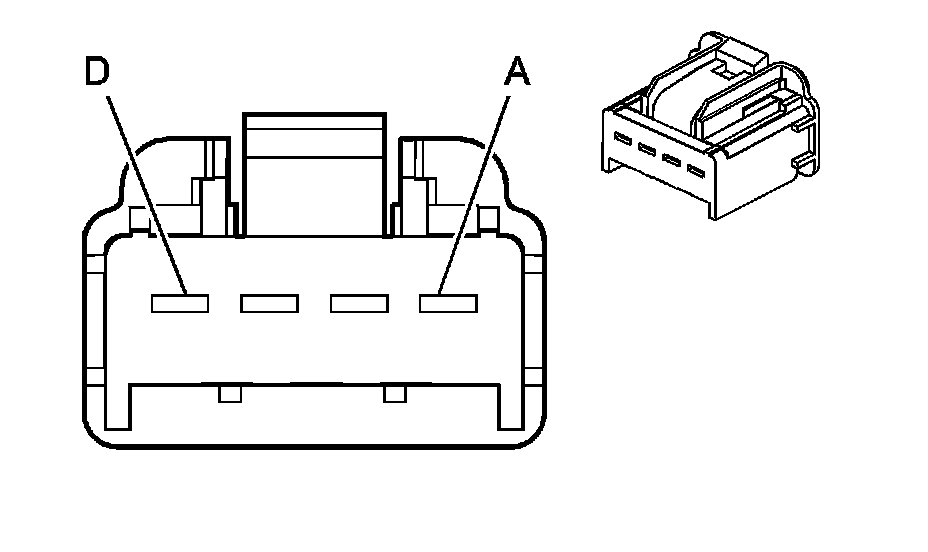

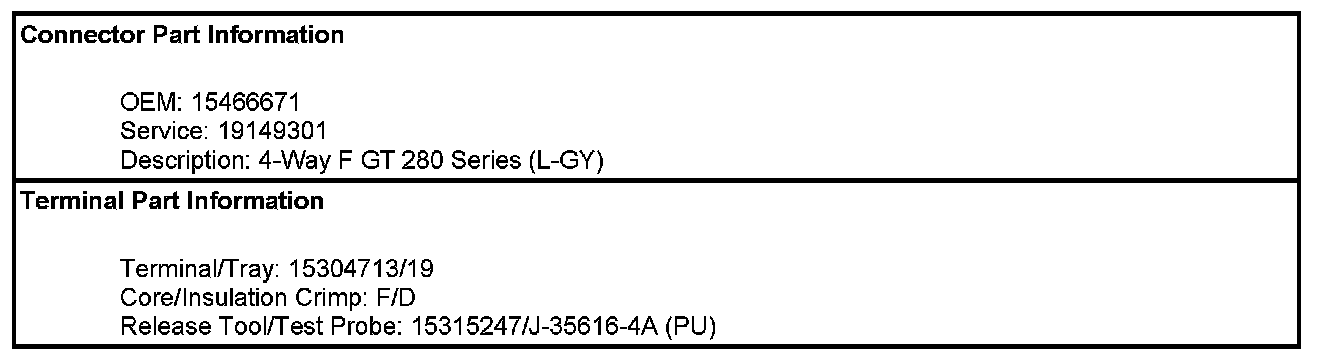

Transfer Case Shift Control Module X3 (NP8)

Transfer Case Shift Control Module C3:
