Entertainment System Control Module
Entertainment System Control Module
Component Connector End Views - Continued

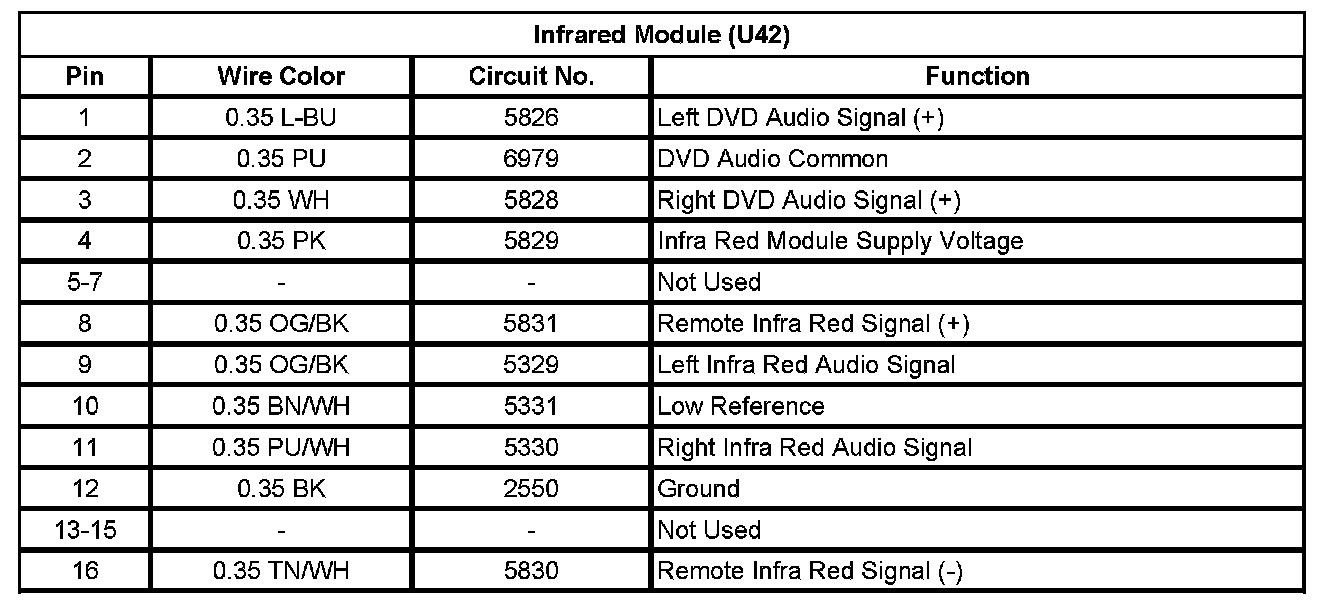

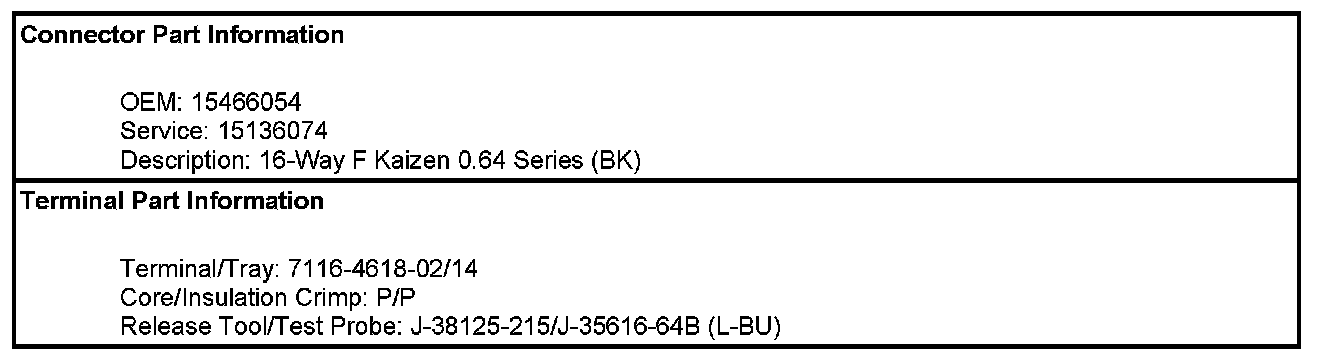

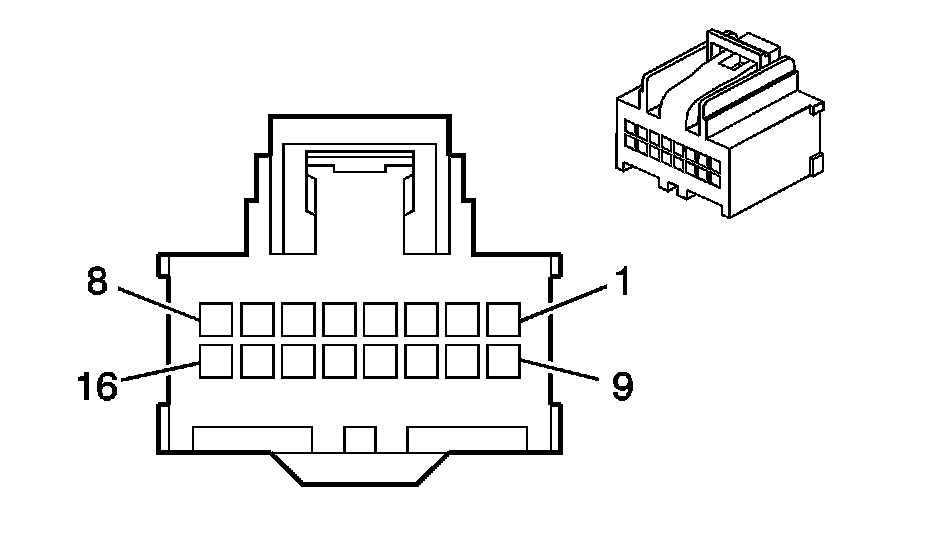

Infrared Module (U42)
